Wire Rope Conveyor Electric Peeling Machine, Layered Belt Skinning Machine, Peeling Clamp

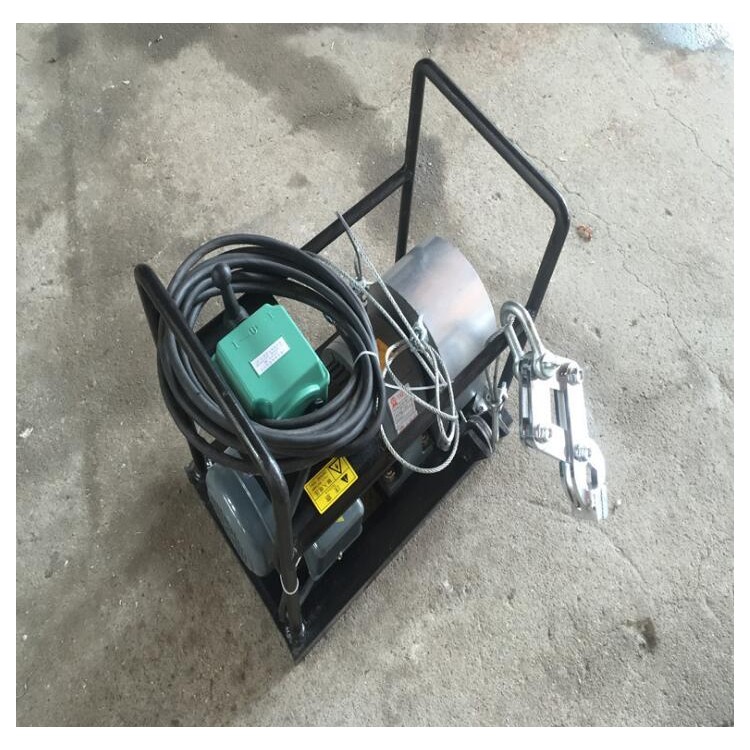

For stripping layers on multi-layer conveyor belts, it consists of a winch, mechanical parts, and a guidance system. The winch includes a motor and a reducer, both mounted in the guidance system, allowing easy movement during operation, reducing the tension on the conveyor belt, and minimizing back-and-forth swinging. The winch and traction system work together. The motor is available in explosion-proof and non-explosion-proof structures, suitable for use underground and above ground, respectively.

One,Application Range:

This equipment is used for stripping and separating multi-layer conveyor belts.

Two,Technical Specifications:

1.Motor Power:1500W

2.Operating Voltage:380V、50HZ

3.Output Speed:50Please provide the Chinese content to be translated./Please provide the Chinese content to be translated.

4.Strip speed:10m/Please provide the Chinese content to be translated.

5.剥离宽度：400mm

Section 3: Features:

1.Large stripping area and fast speed, significantly reducing labor intensity and time required for splicing.

2.Lightweight for easy carrying and handling.

3.Operation stable.

IV. Structure:

Composed of winches, clamps, and guide systems. The winches include motors and reducers, both mounted in the guide system. The winches are connected to the traction system for operation.

FiveInstructions for Use:

1.Align the conveyor belt centerline conventionally, then cut and separate the corresponding joint area with a knife, peeling off one layer.;

2.Position the conveyor belt peeling machine and secure it with钢丝绳.

3.Plug in the power.

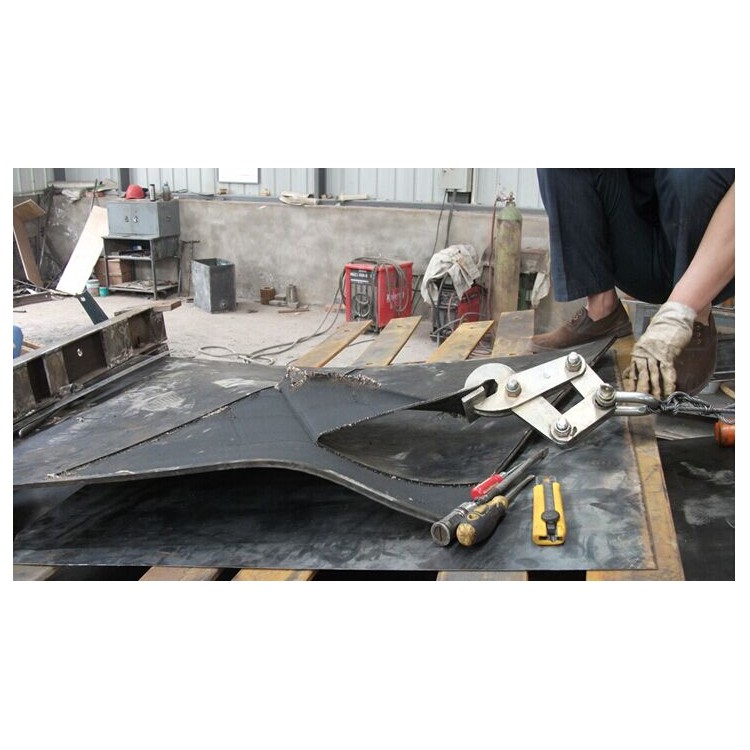

4.Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离 part at the appropriate location.

5.After removing one layer, repeat the above steps to peel off the second, third layers, etc.

Section 6: Usage Precautions:

1.The junction power supply must be handled by a professional electrician.

2.Secure the stripping machine during use to prevent sliding.

3.Do not exceed the specified width during stripping.
