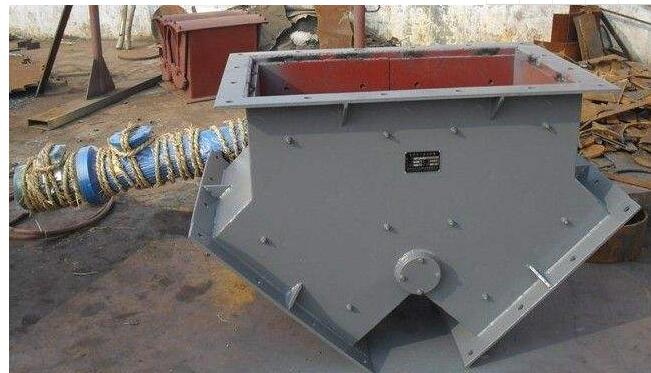

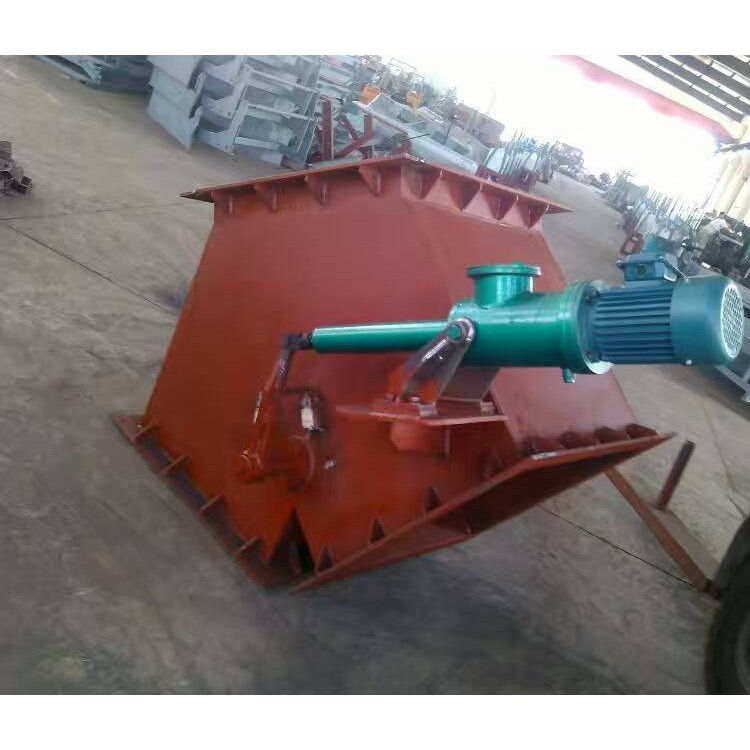

Electro-hydraulic Three-way Distributor | Three-way Distributor Valve | Mining Three-way Chute

Electro-hydraulic Three-way分流阀简介

1. The three-way分流阀 is suitable for various bulk materials such as ores, coal, coke, slag, and chemical products with a bulk density of ≤2.5t/m3. When used in corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, the XDGB type electro-hydraulic push rod or DYQB type explosion-proof electro-hydraulic rotary actuator can be used.

2. The A & B type three-way distributors can directly connect the top flange to the bottom of the hopper at the head of the belt conveyor or at the feeding interface of other equipment. The C, D, and E type distributors have the same connection method, but are generally used under conditions of a heap specific gravity ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Their structural dimensions are larger (with thicker liners), thus heavier, and additional support is required during use. Both A, B, C, D, and E type distributors can achieve bidirectional switching and分流 of materials.

Product Specifications:200*200-1000*1000

Applicable Medium: Powder, dusty solid particles

Applicable Temperature:≤350℃

Power Voltage:380V 50HZ

Gas Source Pressure:0.4-0.6MPa

3Model Numbering Description

DElectric ActuatorSManualDyElectro-hydraulic Push RodQ— Pneumatic Push Rod

FcMaterial Diverting ValveaCutting Angle

Ⅰ—Side Tee Ⅱ—Straight Tee Ⅲ—Four-way Tee (2 in, 2 out) Ⅳ—Four-way Tee (1 in, 3 out)
