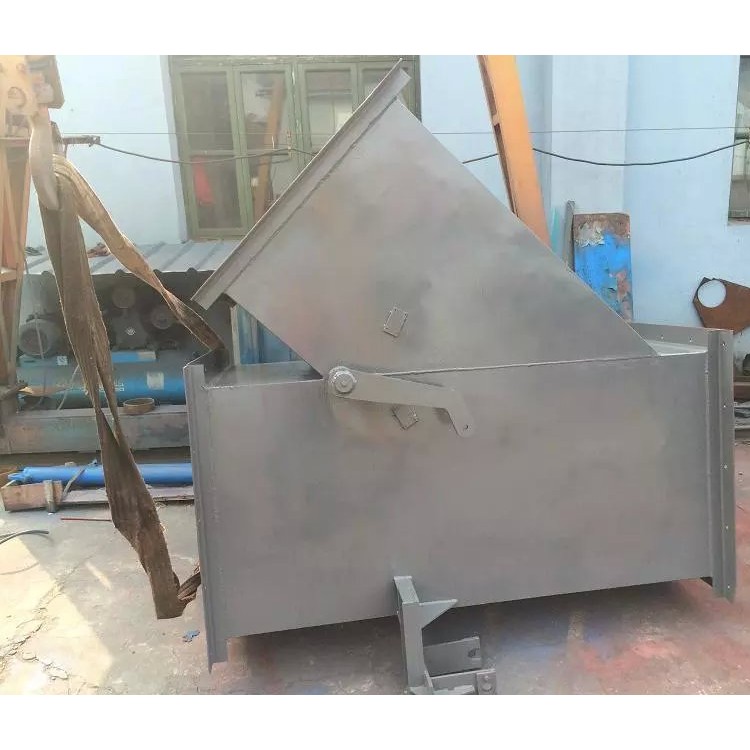

DSF Electro-Hydraulic Three-Way Diverting Valve, Discharging Three-Way Chute, Mine Electric Ash Discharging Valve

Electro-hydraulic three-way分流阀简介

1. The Three-way分流器 is suitable for a variety of bulk materials including ore, coal, coke, slag, and chemical products with a bulk density of ≤2.5t/m3. When used in corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, XDGB type electro-hydraulic push rods or DYQB type explosion-proof electro-hydraulic rotary drives can be used.

2. The A and B type three-way diverters can directly connect the upper flange to the bottom of the hopper on the conveyor head or to the discharge interface of other equipment. The C, D, and E type three-way diverters have the same connection method, but they are generally used under conditions of a bulk density ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Their structure and dimensions are larger (the liners are also thicker), making them heavier. Additional support is required when in use. The A, B, C, D, and E type diverters can all achieve bidirectional switching and分流 of materials.

Electro-hydraulic three-way manifold distributor product features

1. Well-designed, complete in specifications and models, series products, easy to select, versatile, strong in comprehensive matching, simple operation, and easy to maintain.

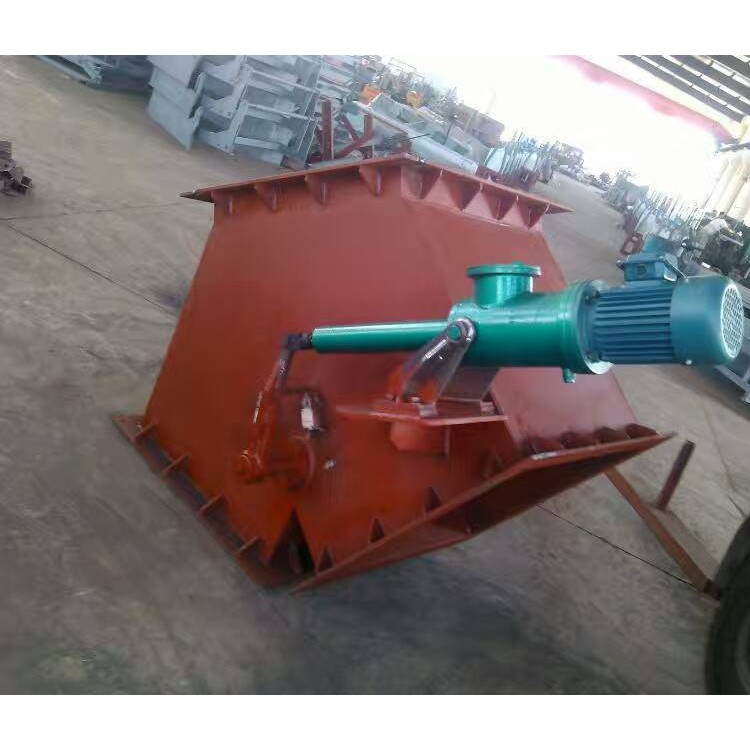

2. If all gates are equipped with electro-hydraulic rotary actuators or electro-hydraulic push rods as power sources, they can operate gates quickly and flexibly, while also featuring load-starting capability and overload protection. This prevents motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.
