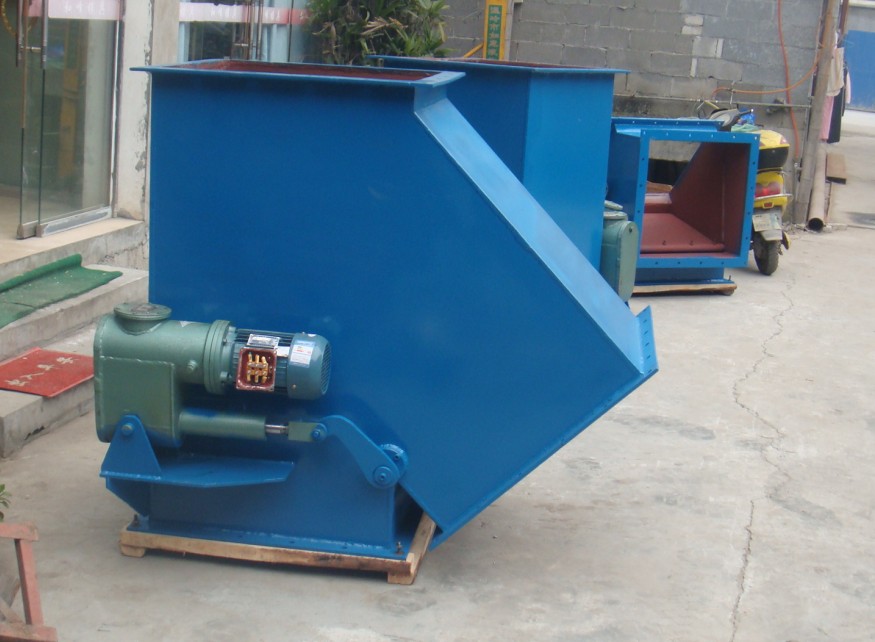

Electrical Three-Way Diverting Valve 300*300, Three-Way Discharge Valve, Three-Way Baffle Valve

The electro-hydraulic three-way分流器 is a new series of products developed by our factory to meet market demand, featuring multiple improvements and the selection of electro-hydraulic actuators (hydraulic actuators), electro-hydraulic rotators, cylinders, and hydraulic cylinders as actuators. It is an ideal equipment for achieving rapid material direction changes in material conveying systems and is widely used in the transportation of solid particles and powdered materials in industries such as construction materials, metallurgy, mining, light industry, power, and grain.

Features

   This product features a carbon steel plate welded structure with characteristics such as compact size, light weight, and low resistance. It is driven by an electro-hydraulic push rod, ensuring smooth operation, low failure rate, and quick material flow switching.

 It can also accept signal adjustments or transmitters for automatic control.

Working Principle

    This product is mainly composed of a valve body, valve shaft, valve plate, crank mechanism, and electro-hydraulic push rod. During operation, the linear reciprocating motion of the electro-hydraulic push rod is transmitted through the crank mechanism to cause the valve shaft and valve plate to swing at a certain angle.

 Actuating the system to transport materials, control the direction and flow rate of materials.

 Product Name: Electric Equal Tee Valve for Material Diversion,Electric Side Tee Divert Valve

Product Specifications:200*200-1000*1000

Applicable Media: Powder, dusty solid particles

Operating Temperature:≤350℃

Power Voltage:380V 50HZ

Gas Source Pressure:0.4-0.6MPa

3Model Number Coding Instructions

DElectric Push RodSManualDyElectro-hydraulic Push RodQ— Pneumatic Push Rod

FcMaterial Distribution ValveaCutting Angle

Ⅰ—Tee, lateral Ⅱ—Equal tee Ⅲ—Four-way tee (2 in, 2 out) Ⅳ—Four-way tee (1 in, 3 out)

4Product Features and Working Principle

        The three-way分流 valve is constructed with a steel plate welding structure, featuring small size, light weight, and low resistance. It utilizes an electric push rod.(Electro-hydraulic and pneumatic actuator rods)Drives that allow for quick switching of material flow.
