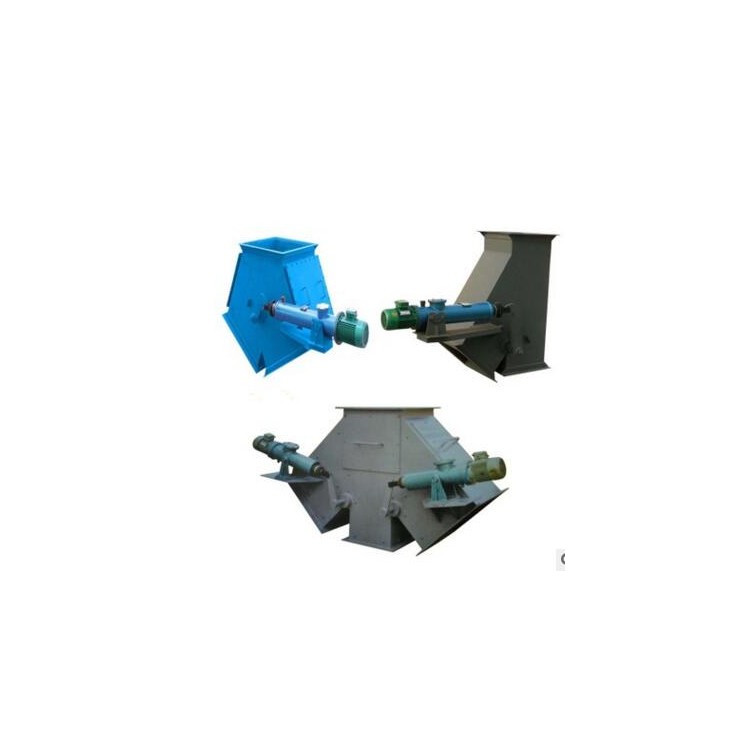

Three-way Distributor DSF - Electrohydraulic Three-way Distributor Valve Three-way Ash Discharge Valve

Product Features

1. Well-designed, with complete specifications and models, our product series is easy to select. It boasts strong versatility and comprehensive compatibility, simple operation, and easy maintenance.
2. If all gates are equipped with electro-hydraulic rotary actuators or electro-hydraulic cylinders as power sources, they offer quick and flexible operation, along with load-starting capability and overload protection. This prevents motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.
3. Full-liquid power transmission, featuring infinite adjustment of thrust and pull force with a broad driving force range. Adjustable reciprocating stroke with automatic locking at position, controlling the flow rate of the gate through adjusting the gate opening.
4. Low investment. As all gate models are designed and produced in a standardized and serialized manner, it is beneficial to reduce costs. Additionally, each individual gate can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods, enabling full hydraulic transmission. No need for a dedicated hydraulic station or any auxiliary equipment.
5. Broad Application Range. Considering the gate may operate in various environments, the design has maximized the variety of gate models, specifications, types, and series, ensuring comprehensive compatibility for the storage and transportation of bulk materials across various industries.
6. The distributed electrically powered rotary actuators or electro-hydraulic cylinders for the bulk material gate can achieve stroke control and signal indication; centralized strokeless control with digital display; or 4-20mA microcomputer control.

Application Range

1. All gates are suitable for various bulk materials such as ores, coal, coke, slag, chemicals, etc., with a specific gravity of ≤ 2.5t/m3. When used under corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, XDGB type electro-hydraulic push rods or DYQB type explosion-proof electro-hydraulic rotary drives can be used.

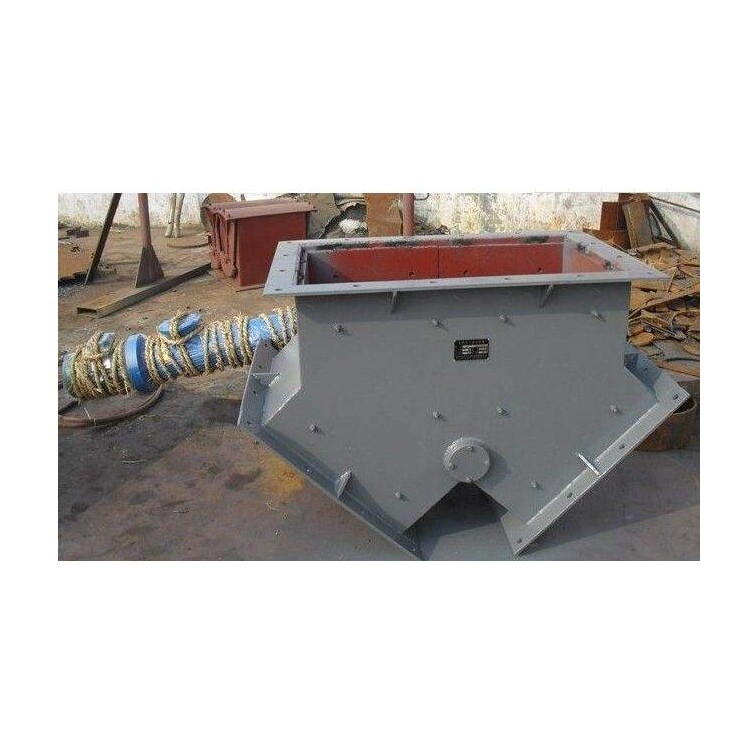

2. T-shaped distributors (Type A, B) can directly connect the top flange to the lower part of the conveyor belt machine's funnel or other equipment discharge ports. Type C, D, and E distributors have the same connection method, but they are generally used under conditions of a heap density ≤ 2.8t/m3, high abrasiveness, and harsh working environments. Their structure and dimensions are larger (the liners are also thicker), making them heavier, and additional support is required according to actual conditions. Both Type A, B, C, D, and E distributors can achieve bidirectional switching and分流 of materials.

The DBSF type electro-hydraulic swing three-way diverter uses an internal sleeve reversing structure, separating the material from the three-way housing. This prevents material from accumulating on the shell walls and forming stubborn lumps, eliminating the issue of the sleeve getting stuck and not turning smoothly. It also avoids material leakage and mixing, offering flexible and effortless operation.
