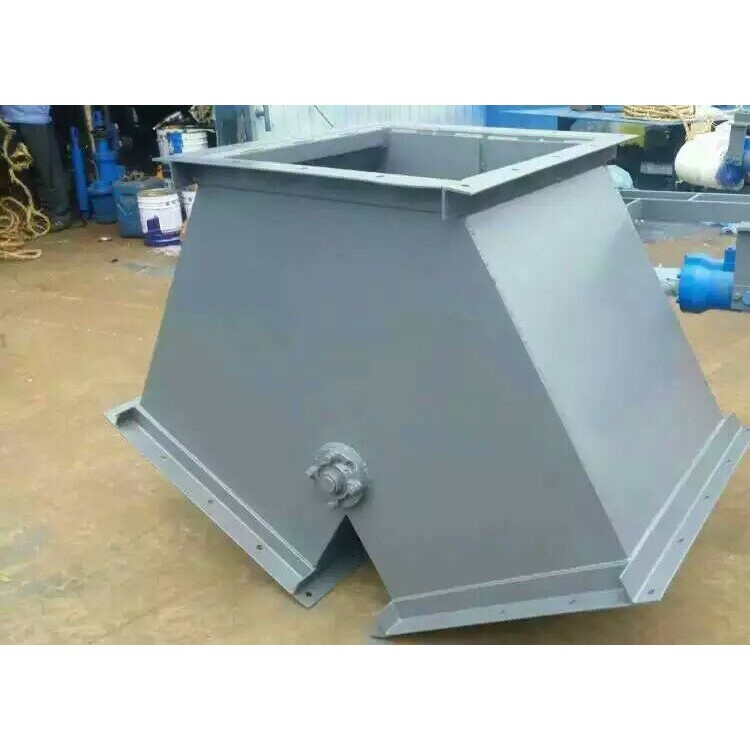

DSF - Electro-hydraulic Three-way Diverting Valve, Marine Three-way Discharge Valve

Electro-hydraulic three-way manifold distributor product features1Well-designed, complete in specifications and models, series products, easy to select, versatile, strong in comprehensive matching, simple to operate, and easy to maintain.

II. Detailed Description:

Electro-hydraulic three-way分流阀

Product Features1Well-designed, with complete specifications and models, product series are available for easy selection. They offer strong universality and comprehensive compatibility, are easy to operate, and simple to maintain.

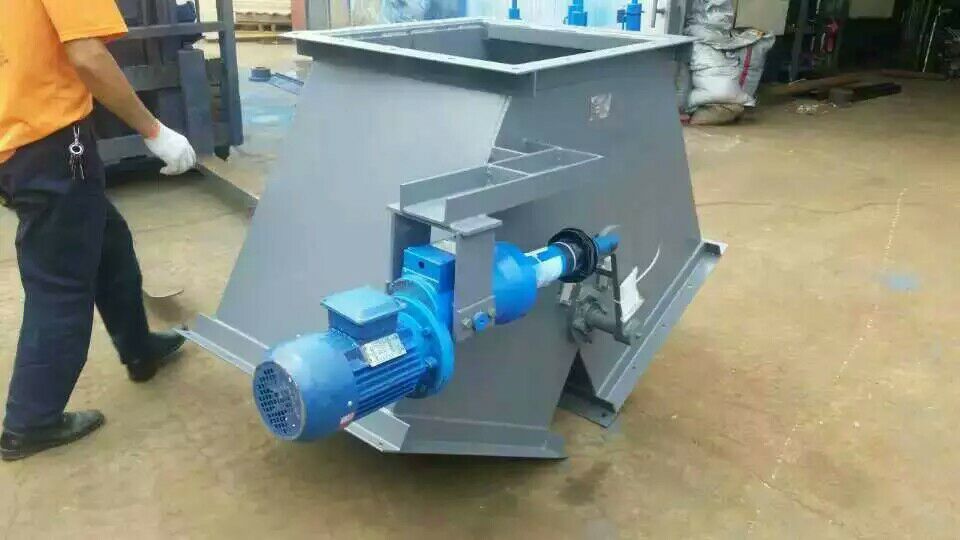

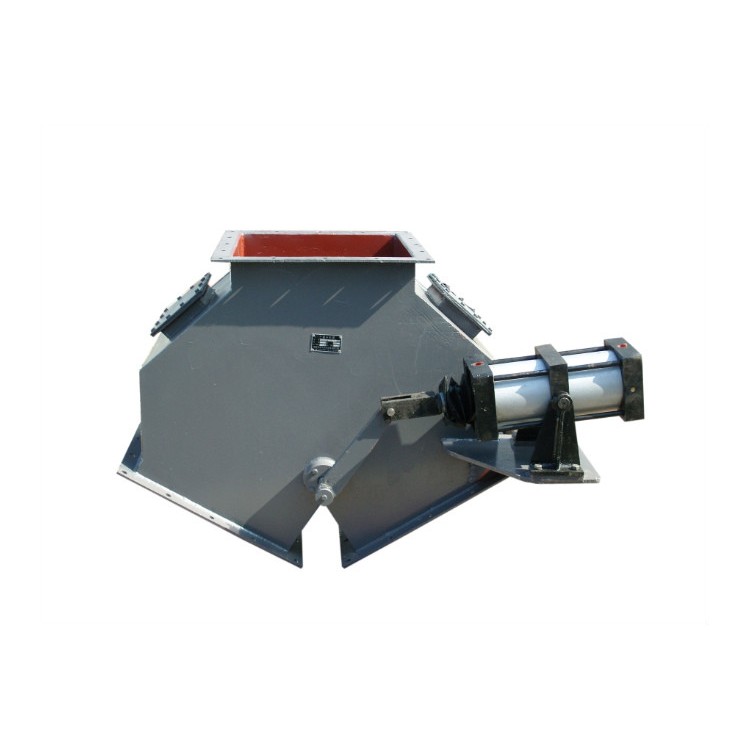

2If all gates are equipped with electro-hydraulic rotary actuators or electro-hydraulic push rods as the power source, they can operate quickly and flexibly, with the ability to start under load and overload protection. This helps prevent motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.

3All-liquid power transmission, with both thrust and pull force capable of infinite adjustment, offering a wide range of driving power. Adjust reciprocating stroke, position self-locking, control gate flow by adjusting gate opening.

4Low investment. All gate models are designed and produced in a standardized and serialized manner, which helps reduce costs. Each gate unit can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods, enabling full hydraulic transmission. No need for a dedicated hydraulic station or any auxiliary equipment.

5Broadly applicable. Considering the gate may operate in various environments, the design has maximized the range of gate types, specifications, varieties, and series to ensure comprehensive compatibility for storage and transportation of bulk materials in various industries.

6The distributed gate is equipped with an electrically powered rotary actuator or an electro-hydraulic push rod, which can achieve stroke control and signal display; centralized control without stroke, with digital display; or 4 － 20mA Microcomputer control

Application Scope1All gates are suitable for bulk density. ≤ 2.5t/m3 A variety of ore, coal, coke, slag, chemical products, and other bulk materials. When used under corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, it can be usedDYTB Type Electro-Hydraulic Push Rod or DYHQB Type explosion-proof hydraulic rotary actuator.

2Three-way manifold splitter (A 、 B Type ) The upper flange can be directly connected to the hopper below the tape machine head or to the discharge interface of other equipment. C 、 D 、 E Type 3 Tee Manifold connection is the same as above, but it is generally used for stacking density ≤ 2.8t/m3 And it has high wear resistance and operates under harsh working conditions. Due to its larger structural dimensions (liner is also thicker), it is heavier, and additional support is required during use based on actual conditions. A 、 B 、 C 、 D 、 E Tapered and split feeders both enable bidirectional switching and分流 of materials.
