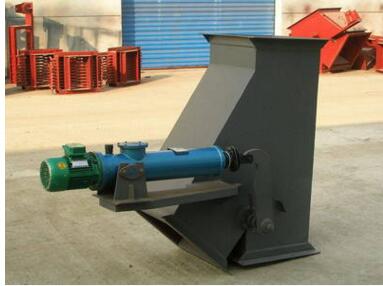

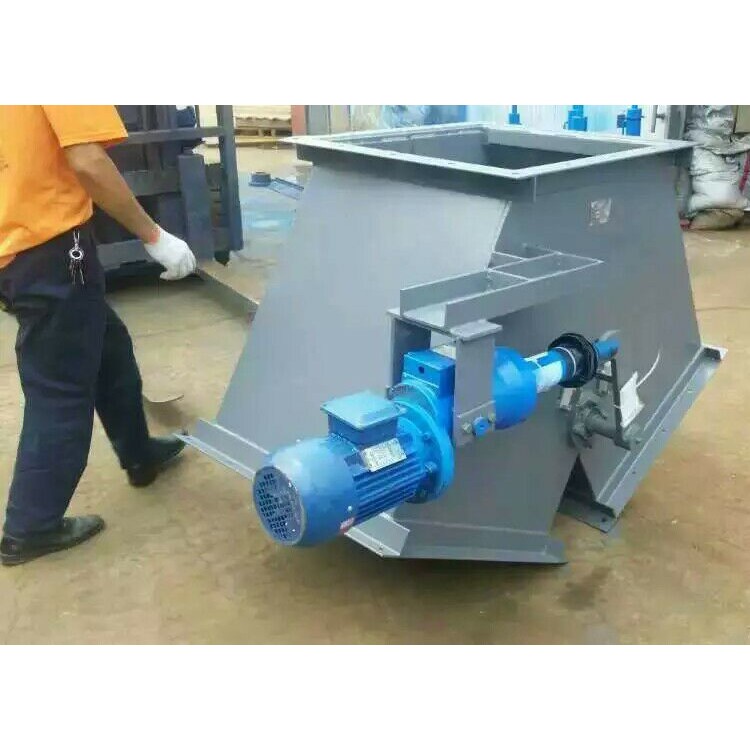

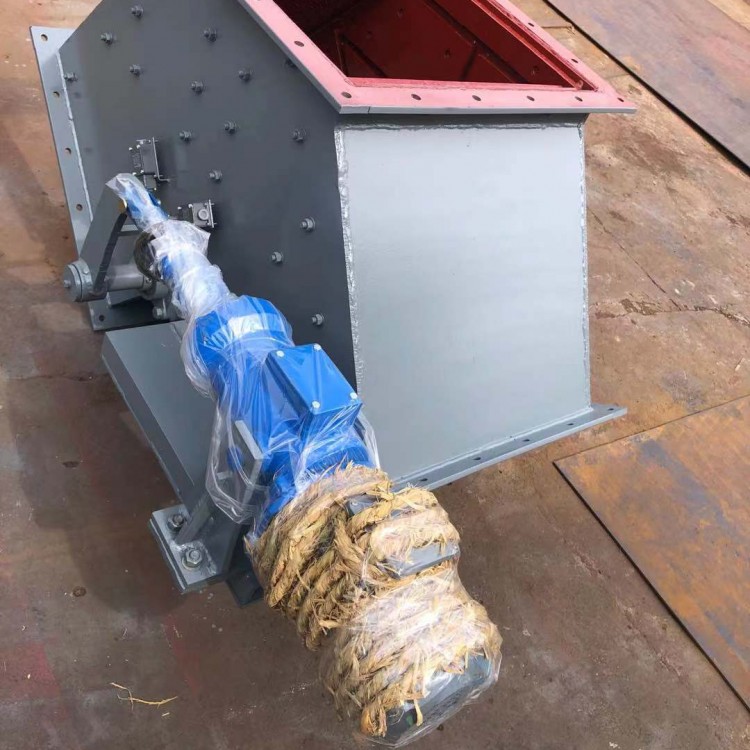

Electro-hydraulic three-way分流阀 Three-way discharge valve Coal storage jaw gate valve

Three-way distributors are available in two types: straight and lateral, with options including electro-hydraulic, electric, pneumatic, and manual. Product Introduction:The DSF-A (B, C, D, E) type electro-hydraulic three-way分流阀 utilizes an electro-hydraulic actuator as its power source. It features automatic overload protection, where if the operation is obstructed, the oil pressure in the circuit increases to the set limit, and the overflow valve quickly and accurately releases excess flow, implementing overload protection. The motor operates within its rated values without burning out. When the actuator reaches the set travel limit, an automatic locking mechanism is designed in the oil circuit module of the electro-hydraulic actuator, stopping the motor. The piston rod locks in place at this position, maintaining pressure.

The DSF-A (B) type electro-hydraulic three-way分流器 is suitable for material reversing/diversion processes. It also allows for reversing while material flow is present. The DSF-C (D, E) type electro-hydraulic three-way分流器 is used for material reversing/diversion processes as well, featuring gate kinetic energy. It also serves the function of simultaneously cutting off or allowing the flow of materials.

Among themDSF-A(B) type electro-hydraulic three-way diverters are used for material directional change/diversion processes. They allow directional changes while material flow is present and possess gate kinetic energy; they also serve the function of controlling material cutoff or simultaneous flow.

The working principle is to control the flip valve flipping by using an electro-hydraulic push rod to drive the rotating mechanism of the three-way distributor, thereby achieving the function of material directional change.

This product can directly connect the top flange beneath the hopper of the tape machine head or at the feeding interface of other equipment. It is generally used for applications where the bulk density is less than or equal to...2.8t/m, with high abrasiveness and under harsh working conditions. Considering its large structural dimensions and weight (Abrasion-resistant         Thicker shims; the upper flange cannot bear its own weight; additional support is required based on actual conditions.

1. Electro-hydraulic three-way manifold distributor - Small size, light weight, low resistance

2. Runs smoothly

3. Low failure rate

4. Quick disconnection of material available.

 Star-type dischargers, screw conveyors, dust humidifiers, heavy-duty flip gates, electro-hydraulic three-way distributors, electro-hydraulic jaw valves, pneumatic sector gates, ventilation butterfly valves, explosion-proof doors, manual slide gates, dust removal frames, dust bags, and other types of dust removal accessories, with a full range of models and types available.
