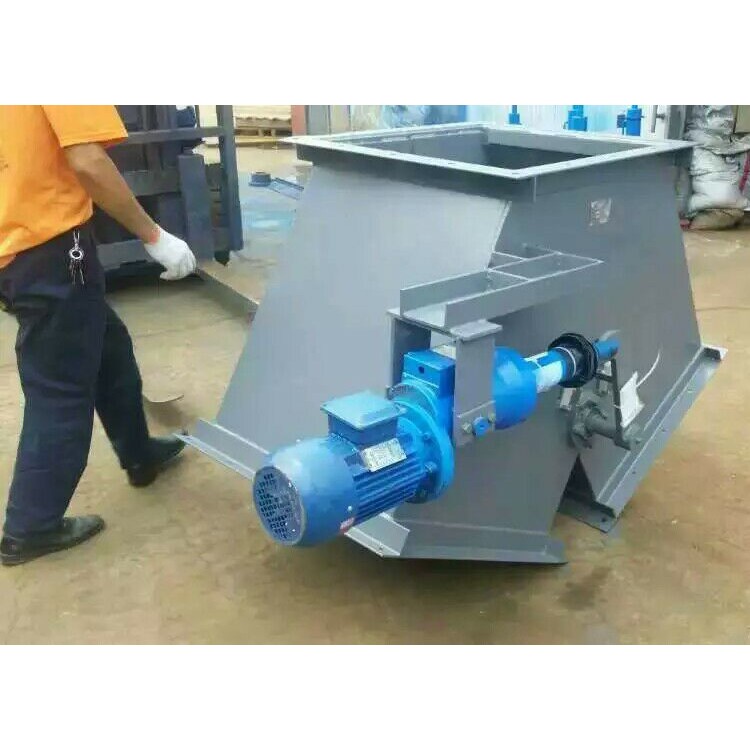

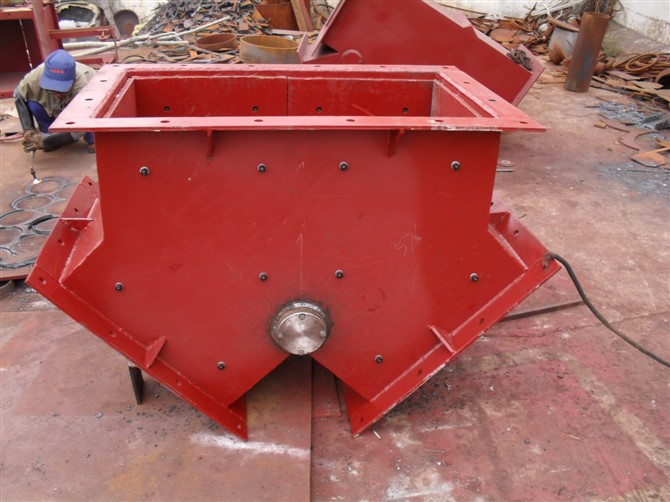

Coal Storage Three-way Distributor, Discharge Three-way Chute, Electrohydraulic Side Three-way Distributor Valve

Electric Three-way Diverters are typically categorized by the valve size. Features of Electric Three-way Diverting Valves:

1. Well-designed, offering a complete range of specifications and models, the product series is easy to select. It boasts strong versatility and comprehensive compatibility, user-friendly operation, and ease of maintenance.

2. If all gates are powered by electro-hydraulic rotary drives or actuators, they offer fast and flexible operation, along with the ability to start under load and overload protection. This prevents motor burnout, ensuring smooth and reliable equipment operation. The complete unit is compact, lightweight, energy-efficient, low-noise, and easy to install.

3. Full-liquid power transmission, featuring infinite adjustment of both thrust and pull force, with a broad driving force range. Adjust reciprocating stroke, position self-locking, control gate flow by adjusting the gate opening degree

4. Low investment. Due to the standardized design and serial production of all models of gates, costs are reduced. Additionally, individual gates can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods to achieve full hydraulic transmission. No separate hydraulic station is required, and there are no auxiliary equipment.

5. Broad Application Scope. Considering the gate may operate under various conditions, the design has maximized the range of gate models, specifications, types, and series to ensure comprehensive compatibility, making it widely applicable for the storage and transportation of bulk materials across various industries.

6. The distributed gate valves are equipped with electrically powered rotating drives or electric hydraulic actuators, capable of achieving stroke control, signal display; centralized strokeless control, digital display; or 4-20mA microcomputer control.

Application Scope

Electro-hydraulic Three-way Diverting Valve Product Introduction

Electro-hydraulic three-way manifold diverter is developed by our company in response to market demand and relevant design requirements. A series of products co-developed with a计量学院, designed for rapid material handling in material conveying systems. Ideal for quick change of direction, widely used in construction materials, metallurgy, mining, and light industry. Transmission of solid particles and powdered materials in industries such as electricity, grain, and others. Features of electro-hydraulic three-way分流 valve

Electro-hydraulic three-way分流阀采用   Carbon steel plate welded structures, featuring Compact, lightweight, and low resistance features. Electro-hydraulic push rod drive. Smooth operation, low failure rate, quick material flow switching capability, and adaptable Adjust or transmit unit signals for automatic control.

1、All gates are suitable for bulk density. Material such as various ores, coal, coke, slag, chemical products, etc., with a density of ≤ 2.5t/m3. When used in corrosive conditions or under high temperatures, the material of the gate can be replaced. In explosion-proof areas, the XDGB type electro-hydraulic actuator or the DYQB type explosion-proof electro-hydraulic rotary drive can be used.

2、2. The A and B type three-way diverters can directly connect the top flange to the bottom of the conveyor belt machine's hopper or other equipment's discharge interface. The C, D, and E type three-way diverters have the same connection method, but they are generally used under conditions of a bulk density ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Their structure and dimensions are larger (the back plate is also thicker), making them heavier. Additional support is required when in use. The A, B, C, D, and E type diverters can all achieve bidirectional switching and分流.
