Pneumatic Arc Valve, Electrohydraulic Push Rod Gate, Chute Discharge Dust Valve

Pneumatic Arc Valves Electro-hydraulic Push Rod Flap Gates Chute Discharge Valves

Brand:Anyuan Model:DSZ Material: Carbon Steel Connection Type: Flange Applicable Medium: Crystalline Solids, Granular Materials, Powdered Materials Pressure Environment: Atmospheric Pressure Standard: National Standard Drive Method: Electro-hydraulic Push Rod Working Temperature: Room Temperature Specifications: See the table below Type (Port Position): Straight-Through Appearance: Medium

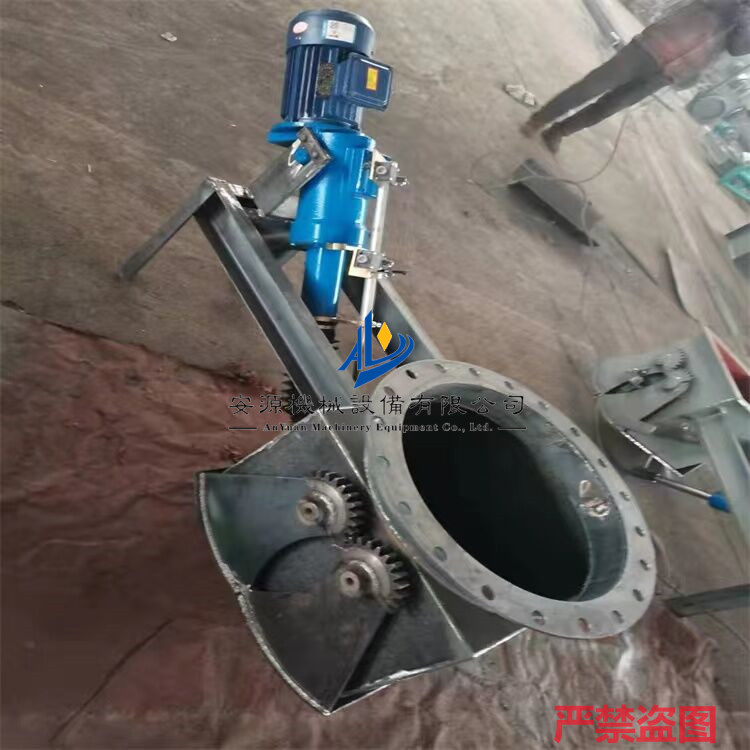

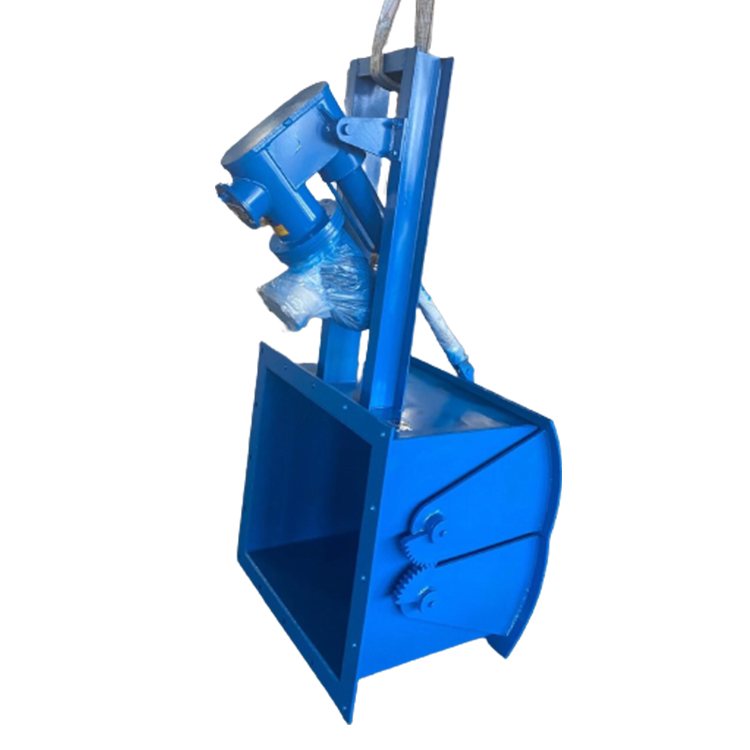

Working PrincipleElectro-hydraulic butterfly gates are composed of the main body, butterfly gate plate, shaft, seals, electro-hydraulic actuators, etc. The electro-hydraulic actuators drive gears that rotate the butterfly gate plate around the shaft center, allowing the butterfly The gate valve swings to one side, allowing the material to fall. Once the receiving device is fully loaded, the electro-hydraulic actuator drives the gate valve back to its original position, closing off the falling material.

Standard models and electro-hydraulic push rods accessories

1. DEZ-A Type Electro-hydraulic Scissor Gate

2. DEZ-B Type Electro-Hydraulic Scissor Gate Specifications

Structural Features

1. Simple structure

2. Smooth operation;

3. Low failure rate;

4. Quick disconnection of material.

The DSZ type electro-hydraulic sector gate is more convenient than the manual sector gate and more durable than the electric sector gate.

  The globe valve is composed of components such as the main body, wing-shaped gate plate, shaft, gears, sealing pairs, and actuator. The handle or actuator moves the lever, causing the gears to rotate the wing-shaped gate plate around the shaft, opening the plates to the sides, allowing material to fall. Once the receiving device is full, the actuator moves the lever again to reset the wing-shaped gate plate, closing off the falling material.
