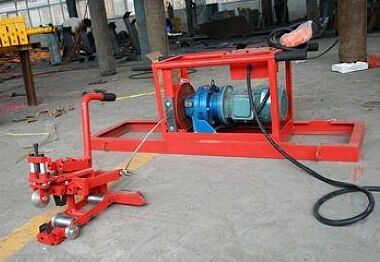

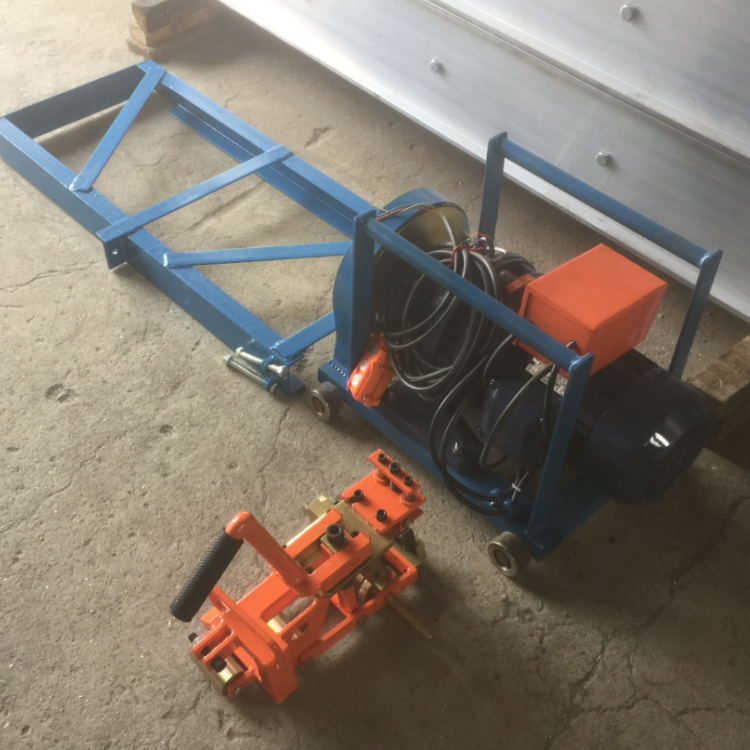

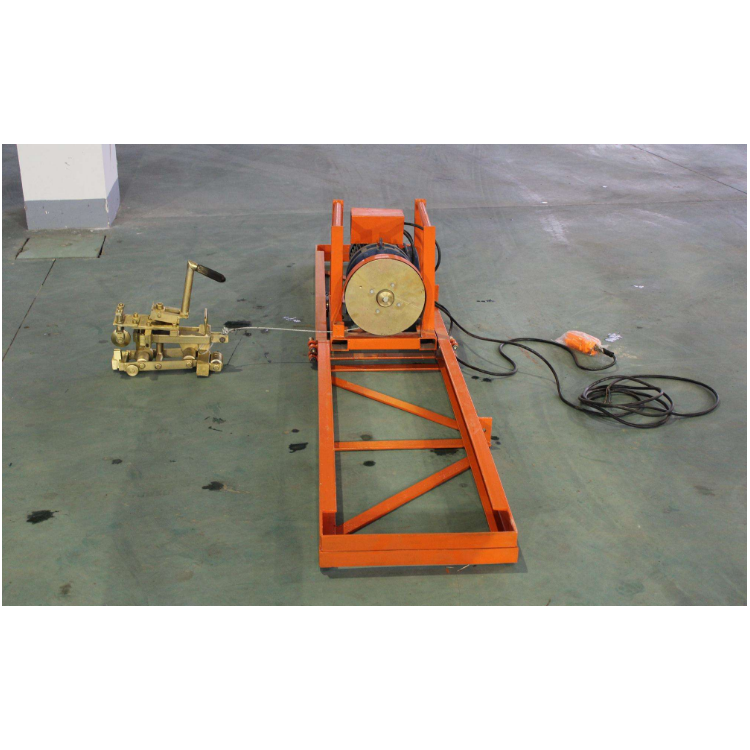

Skinning Machine AY-BJT Coal Mine Explosion-Proof Steel Wire Rope Head Skinning Machine Head Pulling Device

Usage:

Separation of coverings between various fabric cores, steel wire rope cores, conveyor belts, and between canvases, coverings, and steel wire ropes.

Product Advantages:High efficiency, low labor intensity, and lightweight, suitable for use in various environments.

Technical Specifications:

Power Supply: Voltage 380V, 50Hz

2. Power: 3 kW

3. Weight: 96 kg

4. Applicable Range: EP, NN, cotton duck, and various layered with junction points.

Instructions for Use:

1. Start stripping a section of about 15 cm wide steel wire from the end of the wire rope for removing the head. Remove both sides of the rubber sheath and secure the tape.

2. Install the upper and lower blades, aligning the lower blade with the center of the steel wire rope. Adjust the tension of the pressure roller bolts, press down the handle, and move the motor frame through the steel wire rope connection. This drives the blades to detach the rubber from the wire rope, completing the stripping process. The LCD digital display instrument is of high quality and durable. Digital and indicator light displays, preset vulcanization time and temperature, the entire vulcanization process is fully automatic. The alarm light illuminates, and the work automatically finishes. The fully automatic LCD digital display temperature control box is beautifully designed, compact, and utilizes advanced vertical double-layer waterproof technology. The dust and waterproof一体化 cover can operate under harsh external conditions such as sandstorms, heavy rain, and scorching sun.

3. Overload, short-circuit, and leakage protection equipped automatic leakage circuit breakers, ensuring personal safety      。

4. Due to its integrated wiring and automated operational procedures, along with unified plugs and sockets, this electrical control box is compatible with all vulcanizers and repair machines in our factory. This feature is not available in standard machines.
