AY-BTJ Belt Steel Core Stripping Machine, Vulcanized Belt Stripping Machine, Electric Peeler

Separation of coverings from core fabrics, separating coverings from steel wire ropes, and separating canvas from canvas.

Wire Rope Head Stripping Machine Technical Specifications:

Power, Voltage: 380V 50Hz

2. Power: 0.75Kw, 1.1Kw, 1.5Kw, 3Kw

3. Weight: 40kg, 45kg, 50kg, 55kg

4. Application Range: EP, NN, cotton duck, and various layered conveyor belts with joints, in widths ranging from 650mm to 2200mm.

Wire Rope Head Stripping Machine Features:

1. Large stripping area and rapid speed significantly reduce labor intensity and minimize the time required for connections.

2. Lightweight for easy carrying and handling.

3. Stable operation.

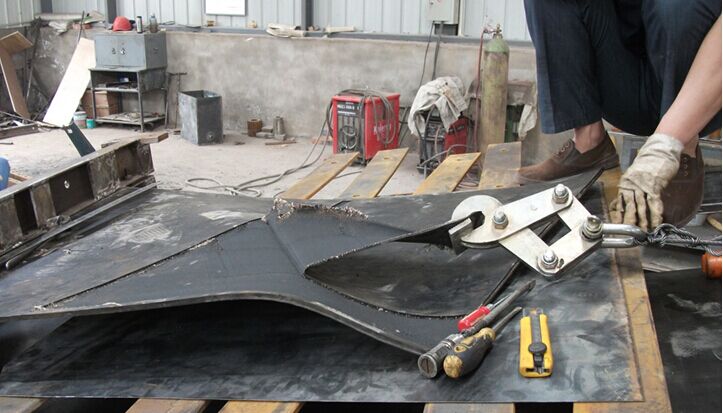

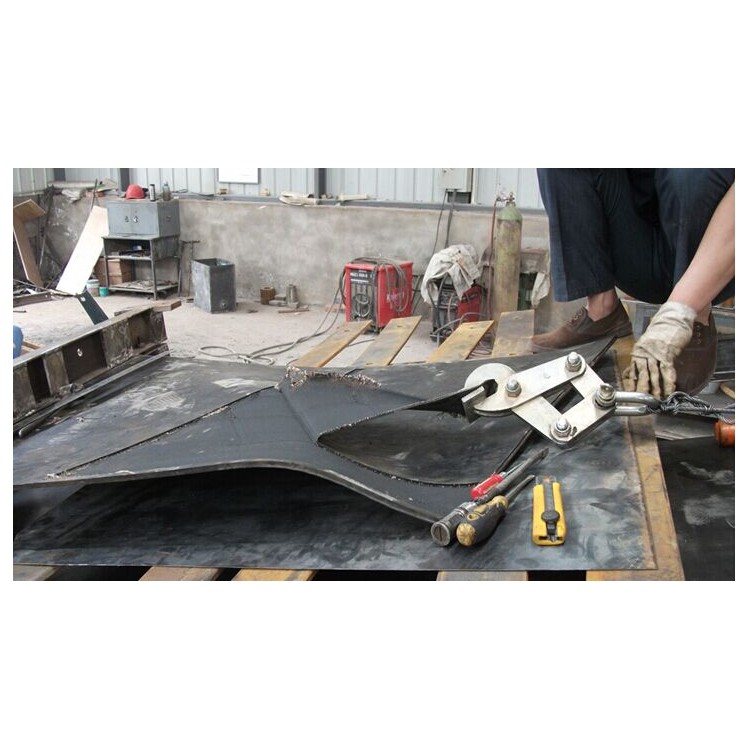

Rope End Peeler Operation Instructions:

1. Align the conveyor belt centerline according to standard methods; the corresponding joints should be scored and separated by one layer.

2. Place the conveyor belt uncoiler in the proper position and secure it with a wire rope.

3. Power on.

4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离part at the appropriate location.

5. After peeling off one layer, repeat the above steps to peel off the second, third, and so on.

Safety Precautions for Wire Rope Head剥机 Usage:

1. Power connection should be handled by a qualified electrician.

2. Secure the stripping machine during use to prevent it from sliding.

3. Do not exceed the specified width during stripping.
