Wire Rope Core Stripper, Mining Stripper Puller, Laminated Tape Peeler

Make Please provide the Chinese content you would like translated into American English. Say Ming Book



One, Function Overview:



    剥 layering for conveyor belt joints, especially suitable for nylon and canvas belts. The nylon belt can剥 layer up to a width of350mm. Enhance jointing efficiency and reduce labor intensity for workers.



      The XLP-100 electric stripping machine's advantages include its use of 220V voltage, which reduces electrical preparation at the joint site. Additionally, the machine weighs only 21 kg and comes with a handle for easy portability.



Section II  Composition:

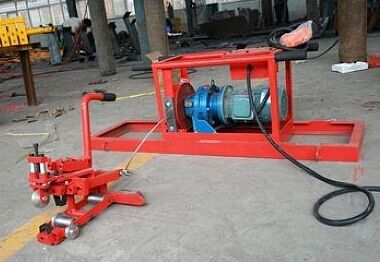

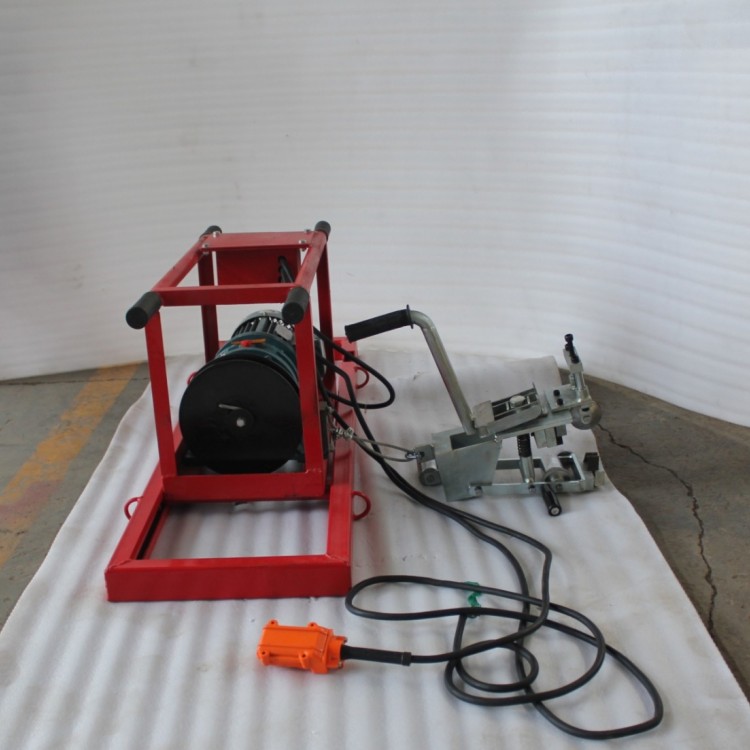

        The XLP-100 Electric Peeling Machine is composed of a handheld controller (1), motor (2), reducer (3), rope drum (4), rear fixing sleeve (5), handle (6), and mechanical arm (7). The motor's output power is reduced through a meticulously designed reducer, driving the rope drum to move the mechanical arm at one end in and out, completing the peeling operation.



    Total length of wire rope:6 meters, when preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.



       Before peeling with the剥层机, you can use a fixed sleeve to secure the剥层机 to a sturdy location. The剥层机的   High tensile strength up to500 kg, so it needs to be sufficiently strong. If not achievable on-site, reduce the width of each layer剥层剥除 to decrease the tensile force.



Three.  Strip operation:



One person operates the handheld controller Button, one person



Tighten the wire rope at the manipulator end until the manipulator reaches the stripping point



The end of the belt. Tightening the steel wire rope when unwinding the rope is to prevent



The wire rope is loosely coiled around the drum.



    Clamp the end of the belt layer with a robotic arm and lift the arm.



Handle; separate the front plate from the movable plate. Fasten the belt layer





 Insert the end between the two plates, press down the handle to clamp the belt. Hold the handheld controller's Button to start peeling layers. The gripping force of the robotic arm is proportional to the tension in the steel wire rope. Therefore, once the wire rope is tightened, the operator can release the handle, allowing the robotic arm to move freely.

 This stripping machine can strip off one layer of nylon tape at a time.350mm (with both sides of the peel line already fractured). The width of the robotic arm is 250mm.



Four Important Notes and Troubleshooting:



1. This stripping machine operates on an intermittent basis and is not designed for continuous, long-term operation.



2. In case of rope unwinding, the wire rope should be reorganized and properly coiled. If there is significant wear, the rope should be replaced.



3. Maintenance should be carried out at regular intervals based on usage frequency, typically once a year. Apply calcium-based grease to moving parts such as drums, reducers, and bearings.
