Coal Storage Discharge Gate, DSZ-500 Electric Swing Gate, Electro-hydraulic Loading Gate

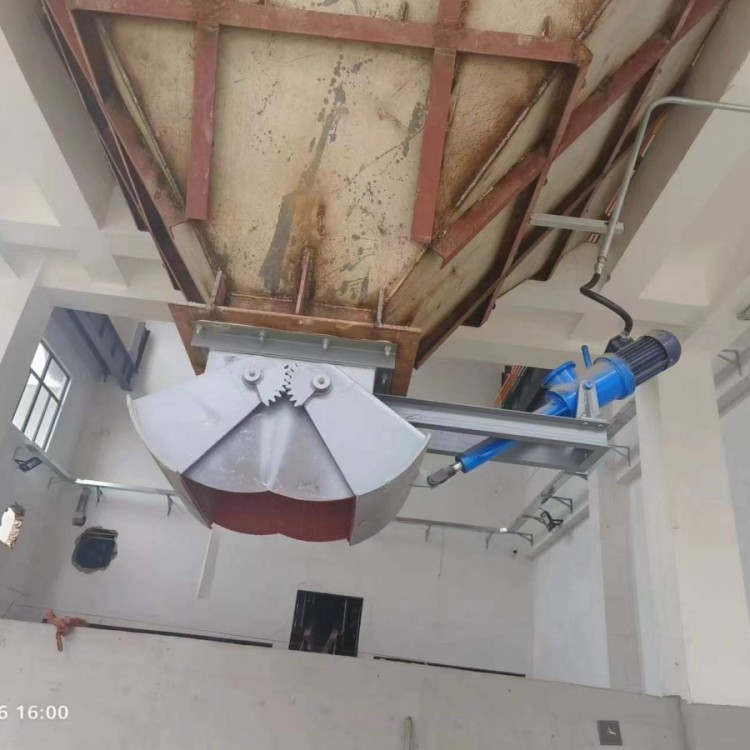

The electric-hydraulic sector gate at the discharge outlet is equipped with a dust cover to prevent dust from flying around. It uses an electric-hydraulic actuator as the power source, replacing the cylinder transmission, thereby saving engineering investment costs. The valve body of the electric-hydraulic sector gate features a stepped structure, reducing material flow impact. The critical parts of the valve body are lined with wear-resistant衬板 in a grill structure, minimizing direct wear on the lining.

This series of electro-hydraulic jaw gate is used in industries such as metallurgy, mining, power, chemicals, and building materials. It serves as the unloading device for various particle discharge systems.

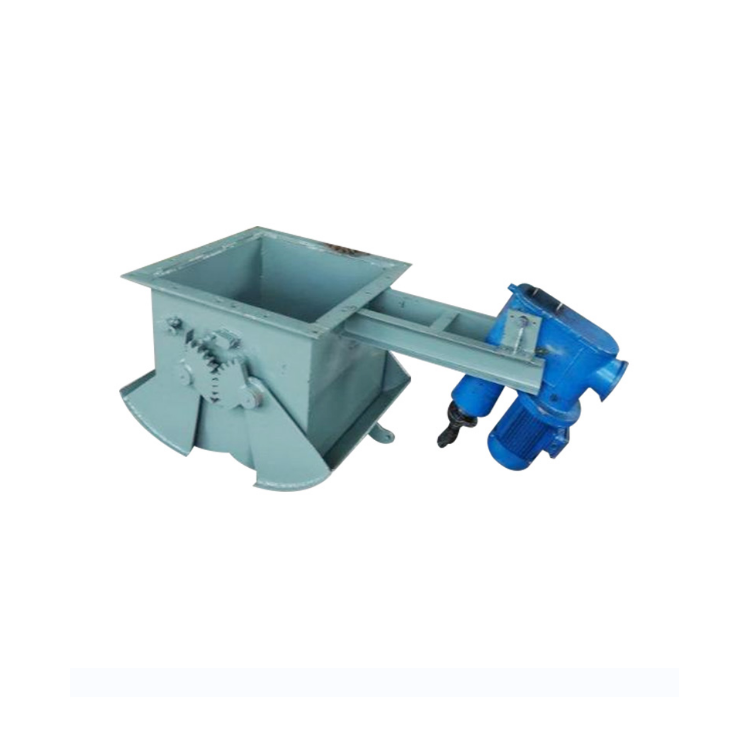

1. The DEZ type鄂式闸门 features a simple structure, made of steel plate welding. It is driven by electro-hydraulic power and gear transmission, operates smoothly with low failure rate, and is easy to maintain. It can quickly cut off the material flow.

2. The HDEZ type environmental-friendly hood gate features a fully enclosed structure, compact design, electro-hydraulic push rod drive, and gear transmission, ensuring smooth operation with a low failure rate and no jamming. It's easy to maintain, capable of quickly cutting off the material flow while being environmentally friendly.

Operation of Electro-hydraulic (Electric) Sluice Gate (Gate Sluice): Please note the medium flow direction marked on the gate body during installation. When connecting the flanges, a sealing gasket must be added, and then the bolts should be tightened evenly. Secondly, during operation, identify the switching direction of the radial gate plate and connect the actuator properly. It is crucial to regularly lubricate all transmission parts during operation to extend the lifespan of the labial valve; improper operation will increase the degree of wear on the labial valve.

Electro-hydraulic Flat Sluice Gate Working Principle: The electro-hydraulic flat sluice gate is mainly composed of a frame, screw thread nut, handwheel, and sluice plate. HandwheelThe sprocket rotates, causing the screw and nut along with the gate plate to move back and forth horizontally, achieving the purpose of opening and closing the valve.
