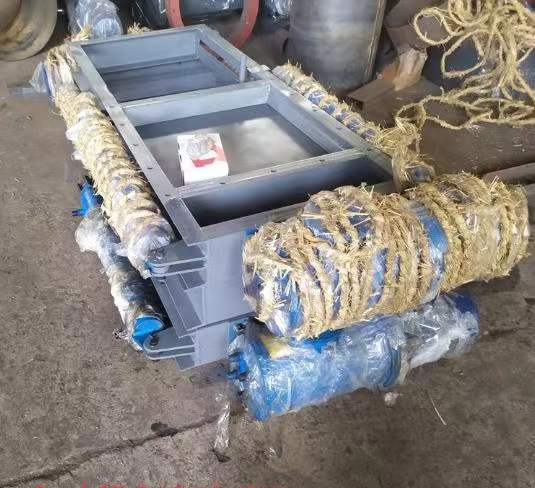

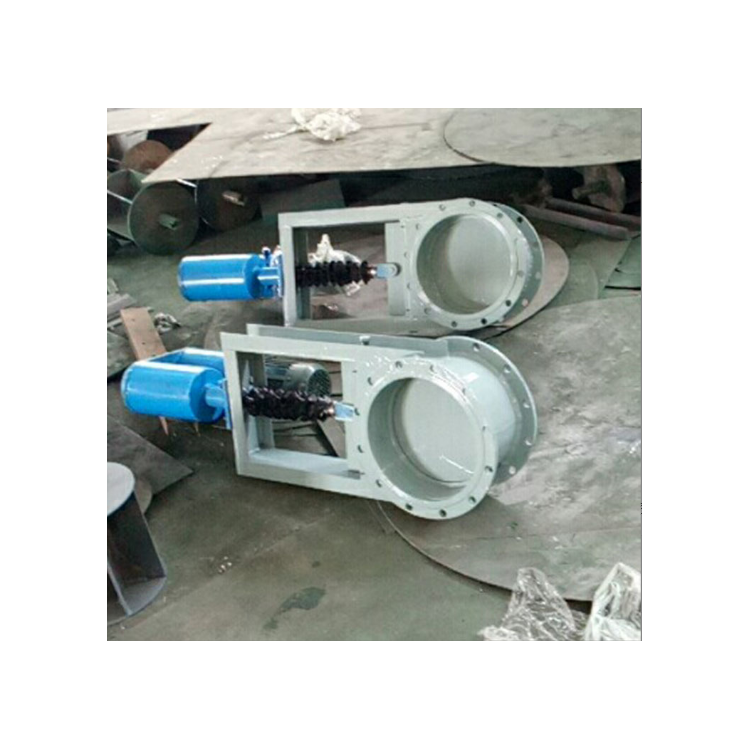

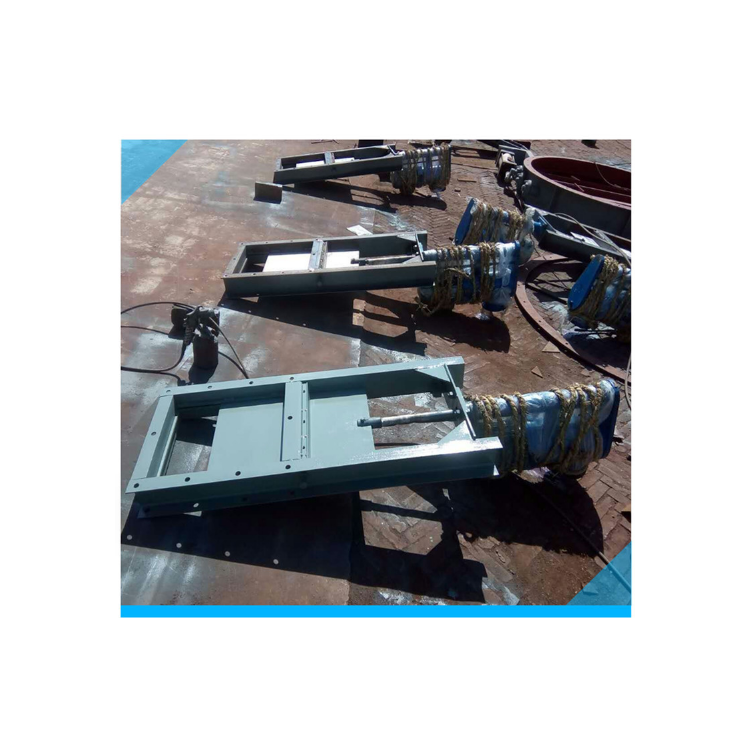

Electro-hydraulic Push Rod Plate Door, Manual Plate Valve, Bulk Storage Stop Plate Gate

Manual plug valveThe valve features a compact structure, excellent sealing, long service life, and easy maintenance. It is composed of upper and lower valve bodies, a pull plate, stainless steel screw, seals, bearing seats, and a handwheel. The valve body is a casting piece with high temperature resistance. Broadly applicable to pipelines and hoppers on dust flow control for industries such as building materials, metallurgy, mining, and chemical engineering.
Structure Description:
Key Technical Specifications:

Model
（Model）

A

B

C

H

Open
（Open）

Closed
(Close)

Operating Temperature
（Work temperature）

N-φ

Nominal Pressurempa）
(Nominal pressure)

Model 200

290

250

200

170

950

750

≤300℃

φ13×8

0.6

Model 220

310

270

220

170

1010

790

φ13×8

Model 240

330

290

240

170

1070

830

φ15×8

Model 260

350

310

260

170

1130

870

φ15×8

280 Model

380

330

280

170

1190

910

φ17×8

Model 300

400

350

300

170

1250

950

φ17×8

Model 320

420

370

320

170

1310

990

φ17×8

Model 340

440

390

340

170

1370

1030

φ17×8

Model 400

500

450

400

170

1480

1080

φ17×8

440 model

540

490

440

200

1600

1160

φ17×8

Model 500

660

610

500

200

1850

1350

φ17×16

Model 600

730

680

600

250

2350

1750

φ17×16
