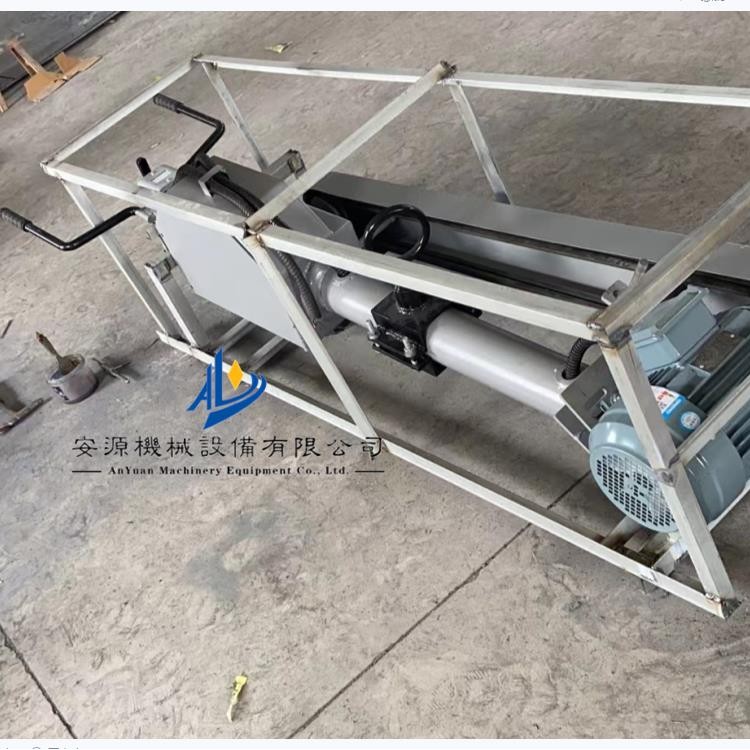

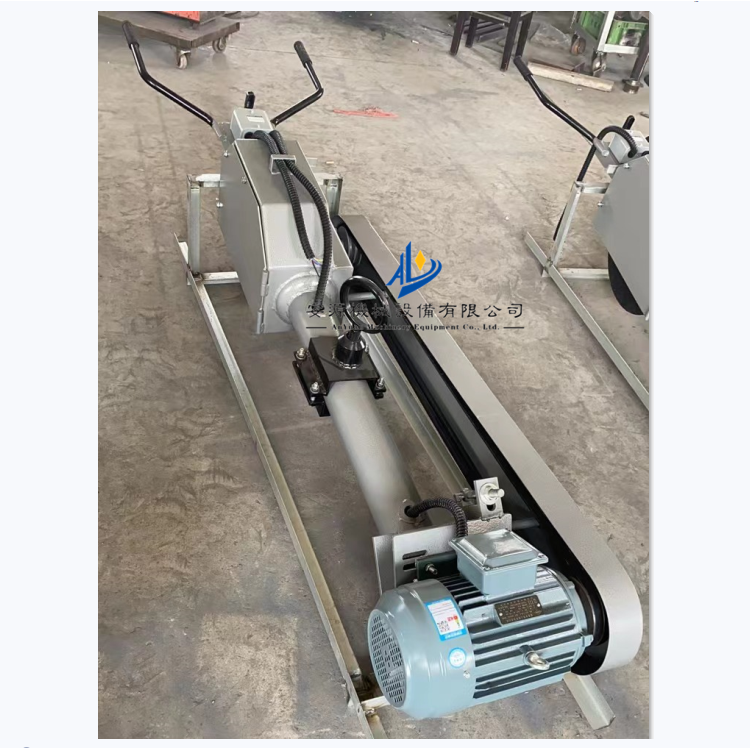

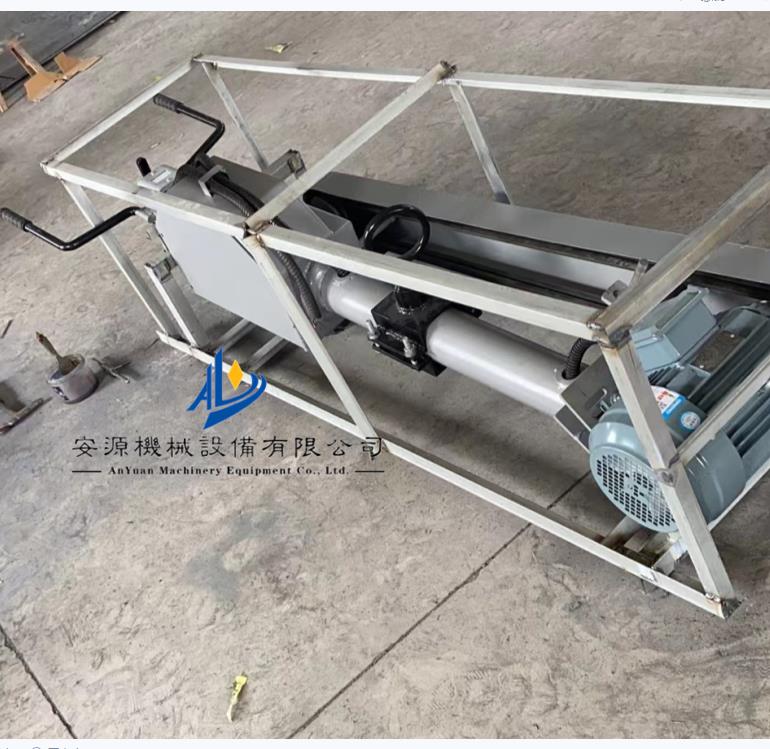

Grinding Wheel Machine, Casting riser grinding wheel cutting machine, M3140 suspended grinding wheel machine, long-term supply

Hanging type grinding wheel machine, also known as suspended grinding wheel machine, mainly used for grinding stainless steel, titanium ingots, alloy steel, special steel, steel ingots, and cracks, embedded carbon, burrs, etc. on various metals.

Inspect the hanger for stability prior to use. Function: Grinding stainless steel, titanium ingots, and alloy steel.

Operation Procedure:

1. Check the hanging item for stability before use.

2. Upon initial use, first observe if the motor reverses. Normally, the grinding sparks should shoot towards the motor; otherwise, immediately shut down and check if the circuit is functioning properly.

3. After the grinding wheel machine is started, it should be allowed to rotate smoothly before beginning the grinding process. If there is significant vibration, the machine should be shut down and adjusted promptly.

4. Do not apply excessive force during the grinding process.

5. Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions provided.

6. New grinding wheels must have a factory-certified quality certificate or inspection and test mark. Do not use the wheel if defects such as quality, hardness, grain size, and appearance, including cracks, are found before installation.

7. When installing the grinding wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled between 0.05 to 0.10 millimeters.

Working Principle:

Upon equipment startup, the grinding wheel and dust collector activate simultaneously. The dust particles generated during workpiece grinding are drawn into the sedimentation chamber by the negative pressure of the fan. Large and heavy particles fall directly into the dust drawer, while fine dust is carried by the air flow into the filter box. When passing through the filter bags, the dust adheres to the surface. The purified gas then flows through the fan into the clean room, is noise-reduced, and released into the atmosphere. After operating for a period and shutting down, the dust removal motor automatically starts to shake and clean the filter cores,抖落 attached dust onto the dust collection tray. The shaking time is adjustable.
