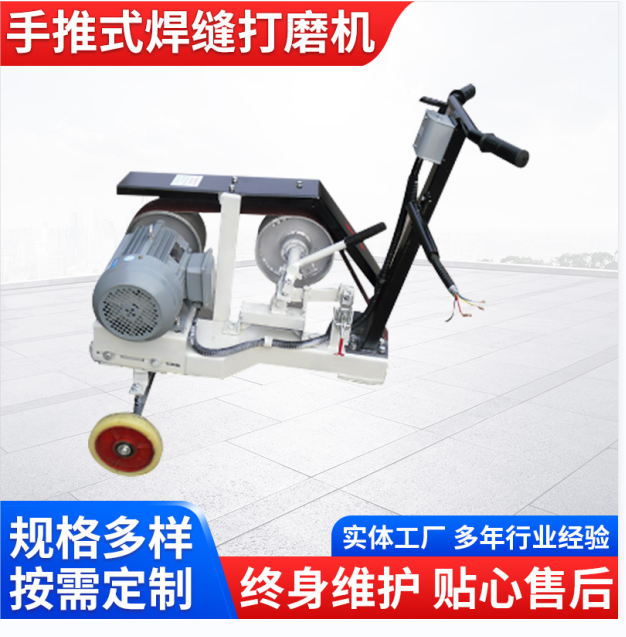

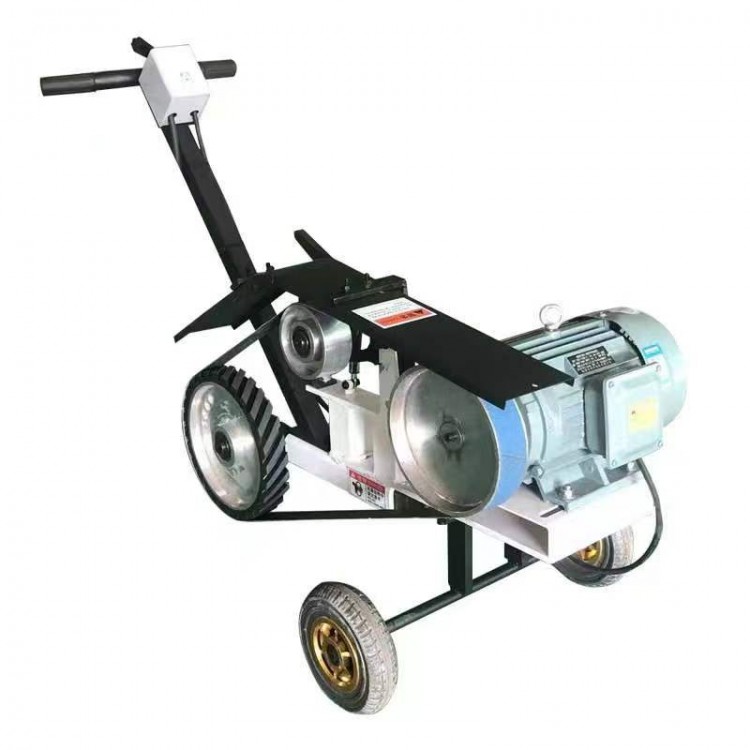

Handheld Sanding Belt Machine, Weld Seam Polishing Multi-functional Grinder, Rust Removal and Polishing Electric Sanding Belt Machine

Handheld sanding belt machine, flat steel grinder Motor Power 32 kW Motor Speed100 RPM

Features: Grinding large workpiece welds, surface

Suitable for grinding steel platesCarbon steel / alloy steel / malleable iron / non-ferrous metals / copper parts / aluminum parts / wood / stone / glass, etc., and other non-metallic materials.

shipyard, boiler factory, large steel component welding factory, cast steelIron Castings/Iron Copper Foundry Grinding, deburring, and polishing machines.

   Save timeHigh efficiency.

Brand:Anyuan

Model：2100*75

Specification: Workpiece Diameterφ500-φ2500 mm

Product Alias:Flat polishing

Application: External and internal surface polishing and buffing for caps

 Principles of Machining Machinery

By friction between the abrasive wheel or polishing wheel and the workpiece surface, one canEnd caps interior and exteriorSurface and welds are ground and polished to achieve improved surface roughness of the workpiece.

2. Machine tool structure includes mechanical and electrical control components.

3. Head Cap Polishing

3.1 Head Flange Polished Surface Setting: The internal surface curve of the head can be roughly divided into three sections: front, middle, and rear, which is controlled by three-speed sections.

3.2 The line control box provides a point-to-point operation function in all four directions (up, down, left, right) during the head finishing process, facilitating the operator to approach the head, observe, and adjust the contact between the grinding wheel and the workpiece.

4. Basic Parameters

4.1 Polished Workpiece Dimensions: Workpiece Diameter φ500-φ2500 mm

4.2 Surface roughness Ra ≤ 0.25 μm (achieved sequentially)

4.3 Production Efficiency: 9 square meters per hour.

4.4 The workpiece rotation and horizontal feed are both variable frequency stepless speed control, further enhancing work efficiency.

4.5 Suitable for polishing materials such as bamboo disk, cloth disk, and flax disk; nylon disks can achieve surface etching.

5. Product Features:

5.1. Polishing material is a leaf disc, low cost.

5.2. Variable frequency control for adjustable speed and high efficiency.

5.3. Achievable from 60 to 500 grit mirror polishing (gradually reaching)

5.4. High degree of automation, capable of continuous and even polishing work.
