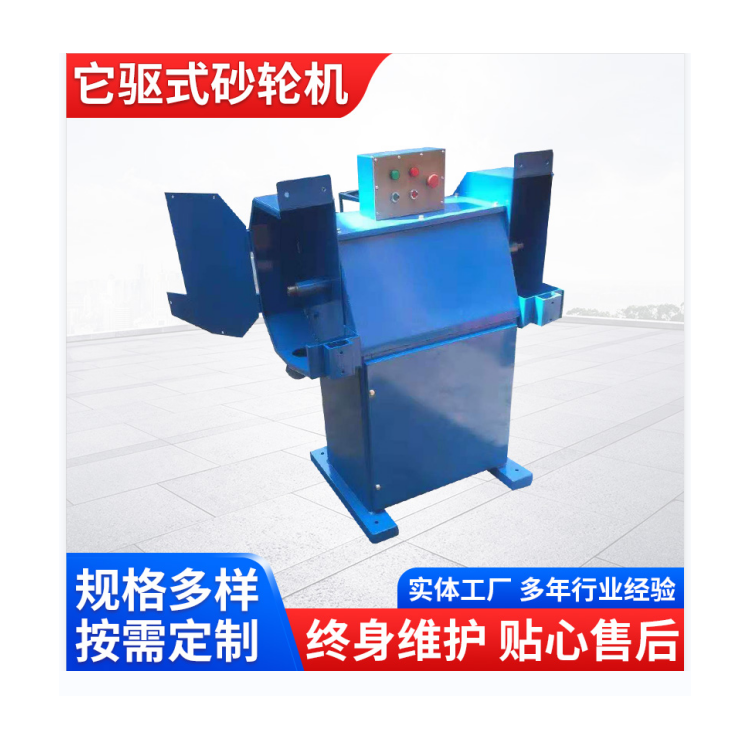

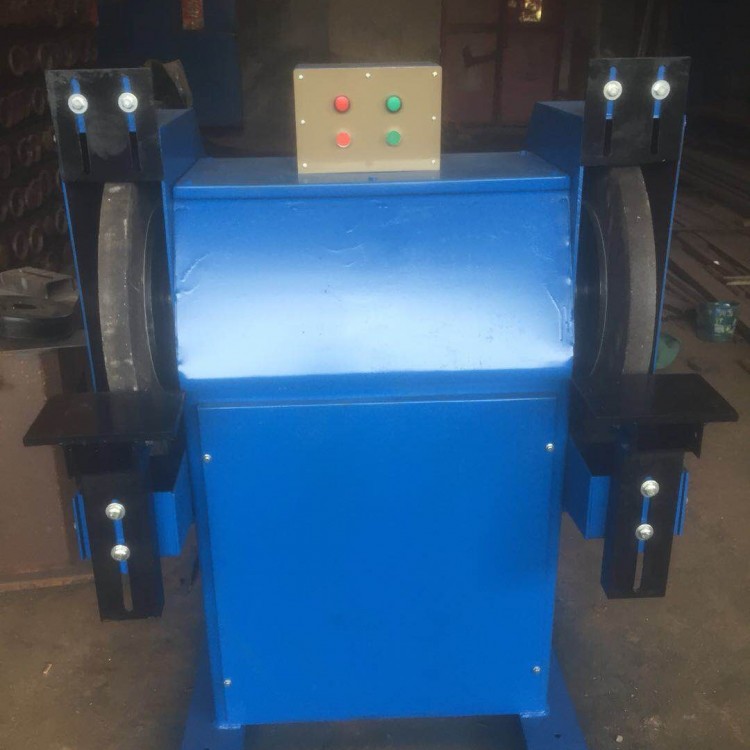

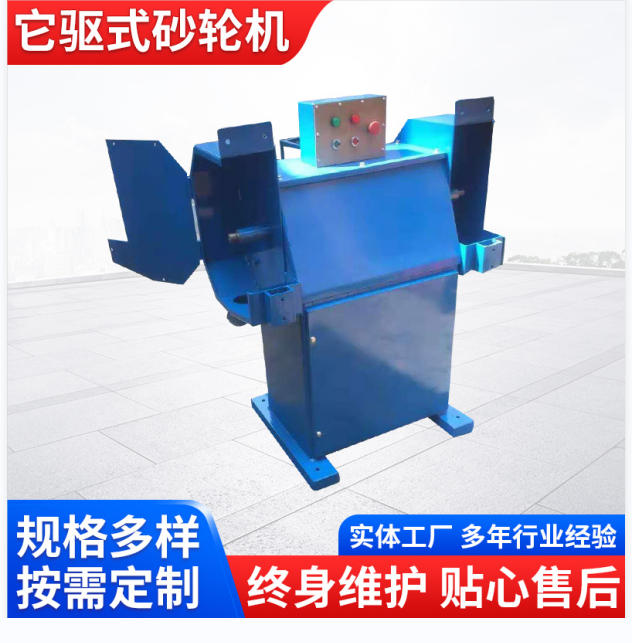

Single Head Grinding Wheel Machine, High-Speed Grinding Wheel Machine, Diamond Cast Iron Grinding Wheel Machine - Long-Term Supply

One machine with a main motor driving two groups of polishing wheels on both sides, and one workbench on each side for the workpieces. The workbench is equipped with functions for tilting, advancing, and retreating.

Polishing wheels can be fitted with sisal wheels, cloth wheels, straw wheels, nylon wheels, and various other polishing wheels. They can also accommodate sanding belts or leaf wheels to perform polishing, sanding, pattern pulling, deburring, and other treatments on workpieces.

 Application Range:

Broadly used for polishing or mirror finishing of items such as hardware, plastics, furniture, stainless steel, machinery, and precision metal parts.

 The power ratings of our company's similar products also include:

 Power:1.1 kW, 1.5 kW, 2.2 kW, 3 kW, 4 kW, 5.5 kW, and 7.5 kW (equivalent to 2, 3, 4, 5.5, 7.5, 10 HP). Speed: 2860 RPM, 1430-2860 RPM; rated voltage of 380V, 220V, etc.

Applicable for metal cutting and non-metal cutting industries,Grinds flat, convex surfaces, wheel grinding, deburring, removing casting sprues, and chamfering. This product is suitable for enterprises with high requirements for working environments, offering excellent dust extraction performance.98%Above.

Parameter Model:

    Model:   M3340 16"

 Grinding Wheel Size: Φ400×40×Φ127mm

   Electricity  Pressure: 380V

 Input Power: 3000 W

 No-load Speed:1420min-1

   Hairy  Weight:  168kg

 Packaging Dimensions:820×650×1140mm Wooden Crate
