Dust-Free Workshop Grinding Wheel Machine, Explosion-Proof Single Head Grinding Wheel Machine, Belt-Driven Grinding Wheel Machine

Dust-Free Workshop Grinding Wheel Machine, Explosion-Proof Single Head Grinding Wheel Machine, Belt-Driven Grinding Wheel Machine

Detailed description :Grinding is a process that follows the finishing of castings in the foundry. Regarding the grinder(Also known as an abrasive wheel machine), the selection of a model should be based on the principles of ease of operation, high efficiency, labor and abrasive wheel savings, low labor intensity, long machine lifespan, and good economic benefits. This means choosing different grinding models based on factors such as casting size and geometric shape. Generally, small parts are ground using fixed abrasive wheel machines, while larger parts are ground using suspended abrasive wheel machines, where the casting remains stationary and the suspended abrasive wheel machine moves.   Activity within a radius, or use a portable pneumatic/electric mini grinding wheel machine, which can grind any part. Although convenient, it's not very efficient, consumes a lot of small grinding wheel blades, has high labor intensity, and is costly. A handcart-type grinding wheel machine is more suitable for grinding flat surfaces or cutting excess sprues of medium to not-so-high castings.

It features certain common requirements of grinding machine tools, in addition to being driven.High rotation speed, simple structure, broad applicability, generally manual operation.

It drives the grinding wheel.

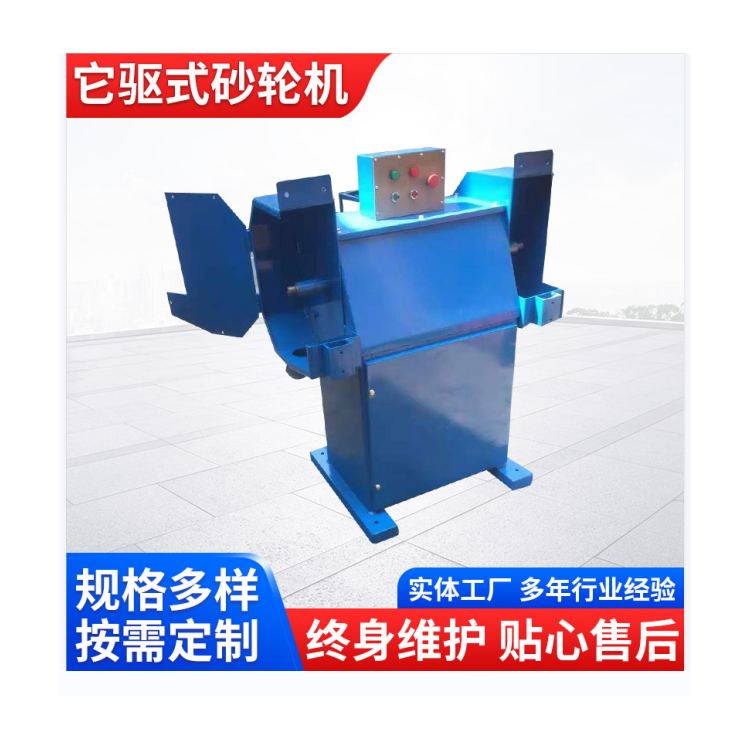

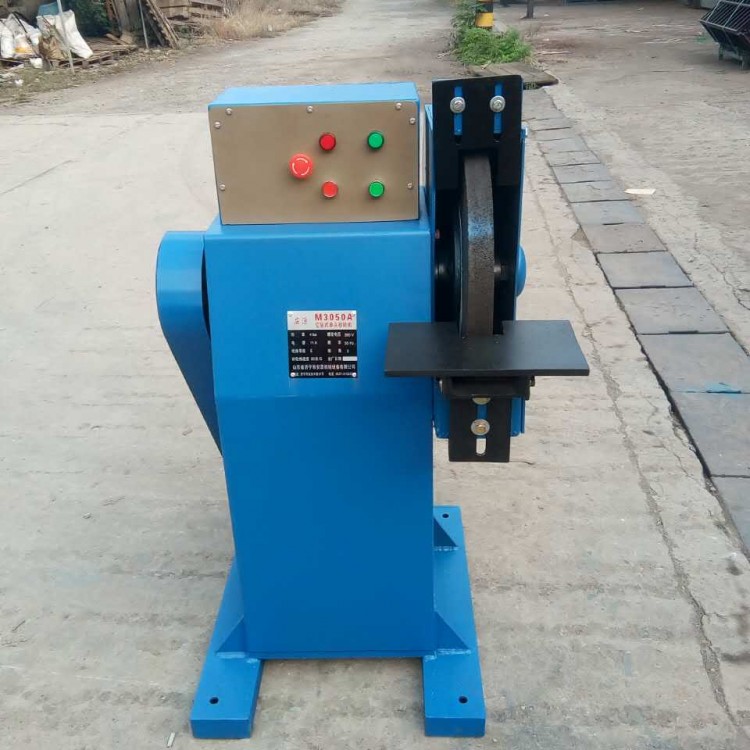

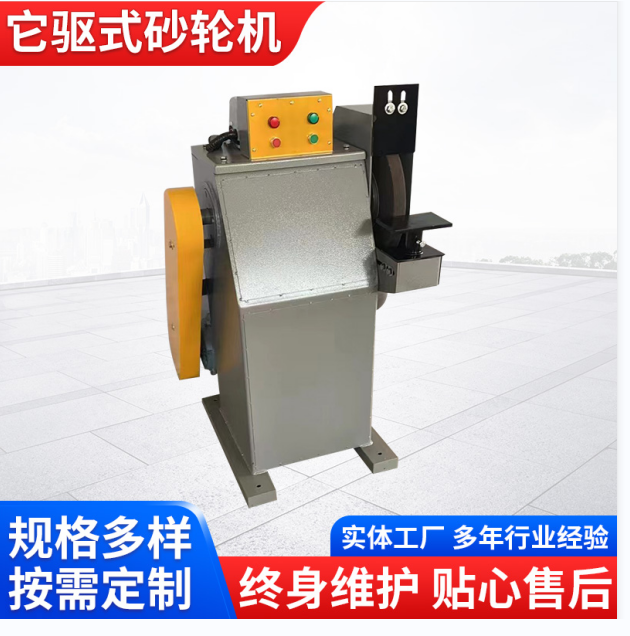

It is a driven grinding wheel machine that does not have its own drive system. It operates by relying on an external power source to power its rotation. Generally,  。

2The user is familiar with the structure, performance, and maintenance knowledge of the grinding wheel.

3Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions. The newly acquired grinding wheel must have a factory certificate of conformity or a test mark. Do not use the grinding wheel if any defects such as quality, hardness, grain size, or cracks in appearance are found before installation.

 This machine is primarily composed of the driving mechanism, sand belt tensioning mechanism, contact wheel (grinding wheel) system, base, support feet, casters, sand belt, and hand push rod. The motor directly transmits power to the drive wheel, which in turn drives the sand belt to rotate at high speed. The sand belt is tensioned through the tensioning mechanism, and the grinding process is performed using the contact wheel. Depth adjustment devices for grinding are set on both sides of the contact wheel, allowing for control of the grinding depth to ensure both flat welding seams and the preservation of the base material.

This machine is primarily used for grinding flat weld seams and can also be used for polishing flat surfaces.
