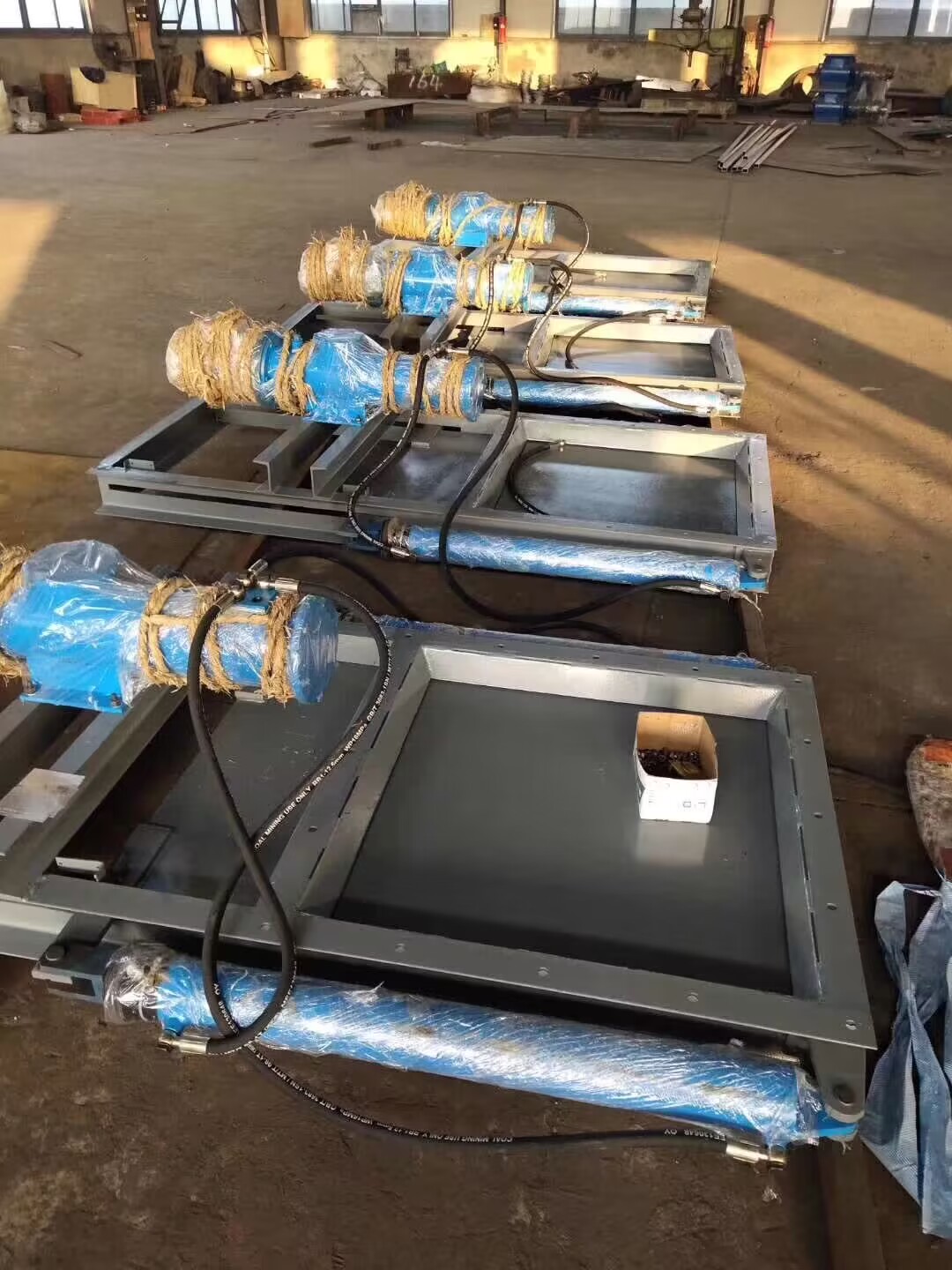

Electric (Hydraulic) Plug Valve, One-Stop Double Cylinder Flat Gate, Ash Discharge Valve

Application

The gate valve is widely used on pipelines for controlling dust material flow in industries such as building materials, metallurgy, and mining, and is an ideal equipment for controlling dust material flow.

Features

The gate valve features a simple structure, light weight, flexible operation, easy assembly and disassembly.   Carbon steel manufacturing, offering high strength, excellent performance, and a long service life; the screw and nut are equipped with a soft protective cover structure, unaffected by external dust.

Working Principle

The gate is primarily composed of a frame, screw nut, handwheel, and gate plate. Handwheel(Chain Sprocket)The screw rotates, causing the screw nut and gate plate to move horizontally back and forth, thereby achieving the opening and closing of the valve.

Order Instructions:

　　1.When placing an order, customers must select options in accordance with the form shown in the sample. All types of flat slabs gates are general types. If it is   Requirements (e.g., granular specialty materials with particle sizes greater than)20mmAt this time, it is necessary to increase the gate plate strength; please specify otherwise.

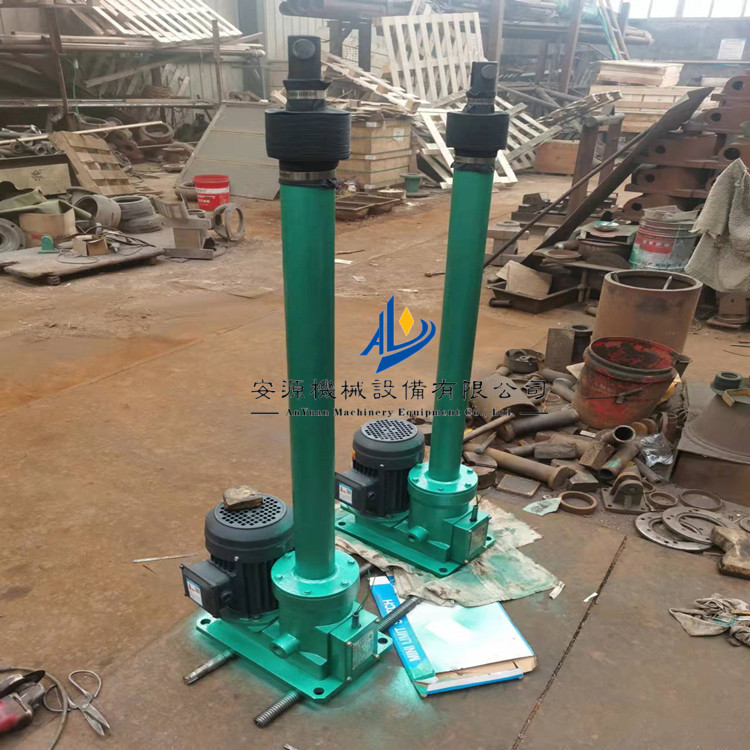

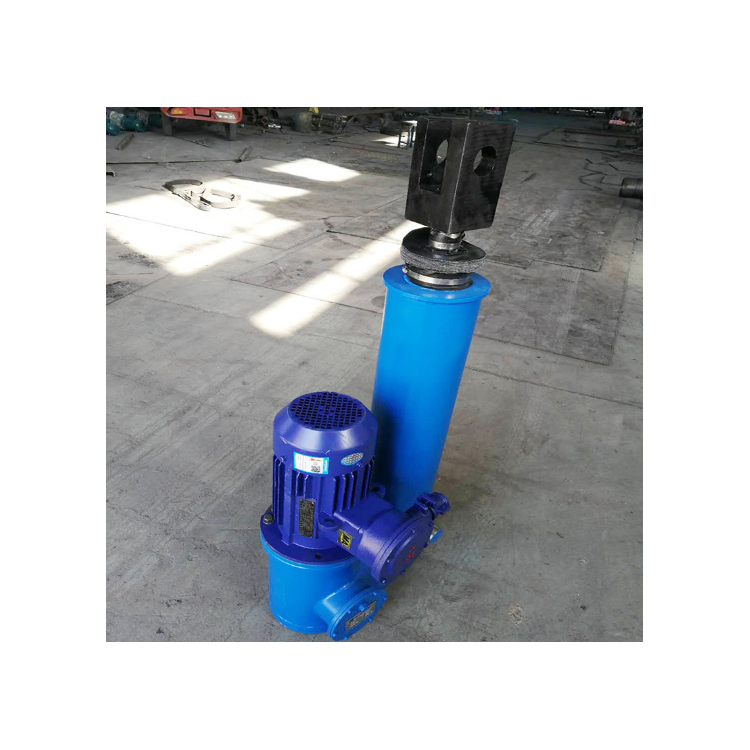

　　2.Electro-hydraulic push rods for flat gate sets, typically not including electrical control parts. Please specify if required during ordering. (Electrical control diagram for the push rods can be found in the electro-hydraulic push rod section.)

3.For installation, operation, and maintenance precautions, please refer to the "Flat Sluice Gate Installation, Operation, and Maintenance" manual (provided with the goods).
