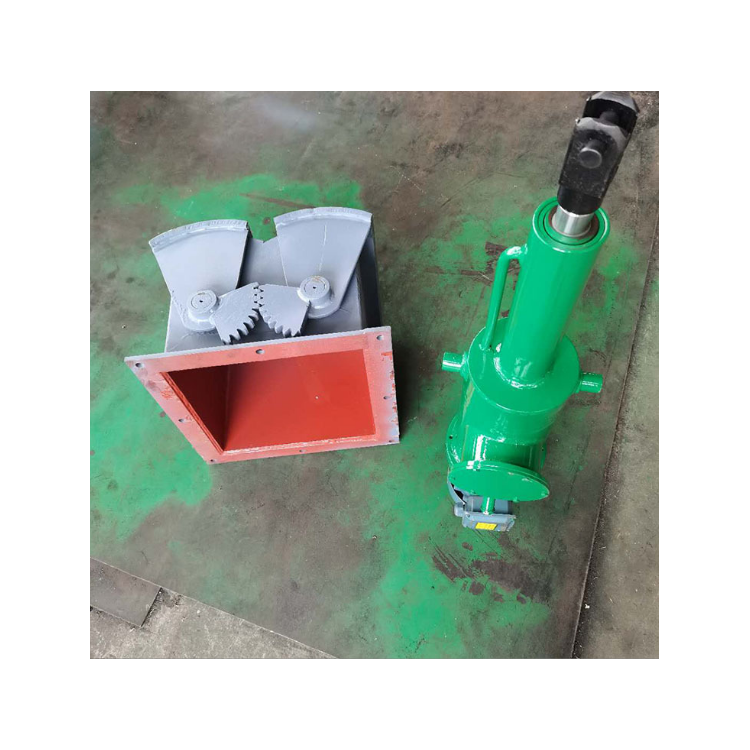

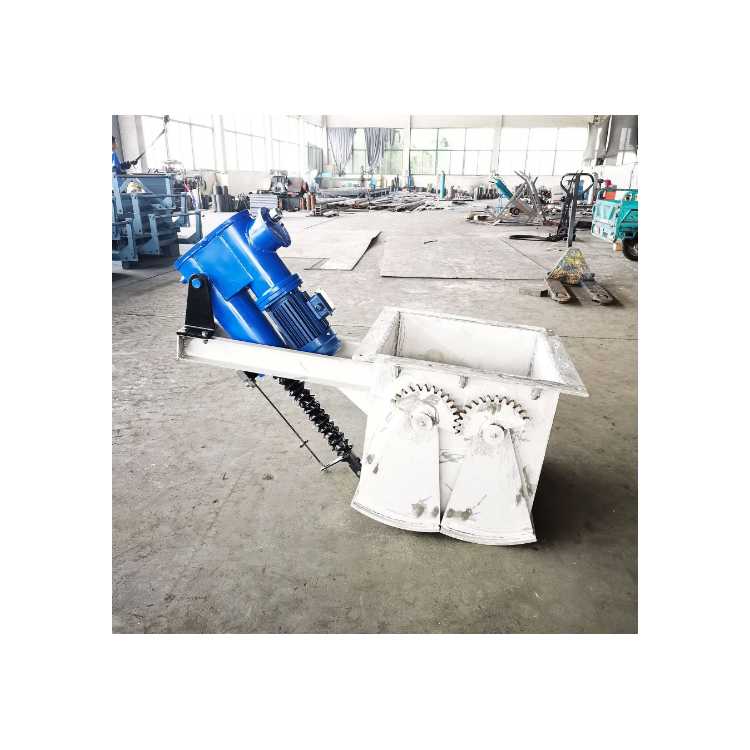

Material Storage Arch Dredging Valve DSZ-500 Electro-hydraulic Scissor Gate Electric Scissor Dust Discharging Valve

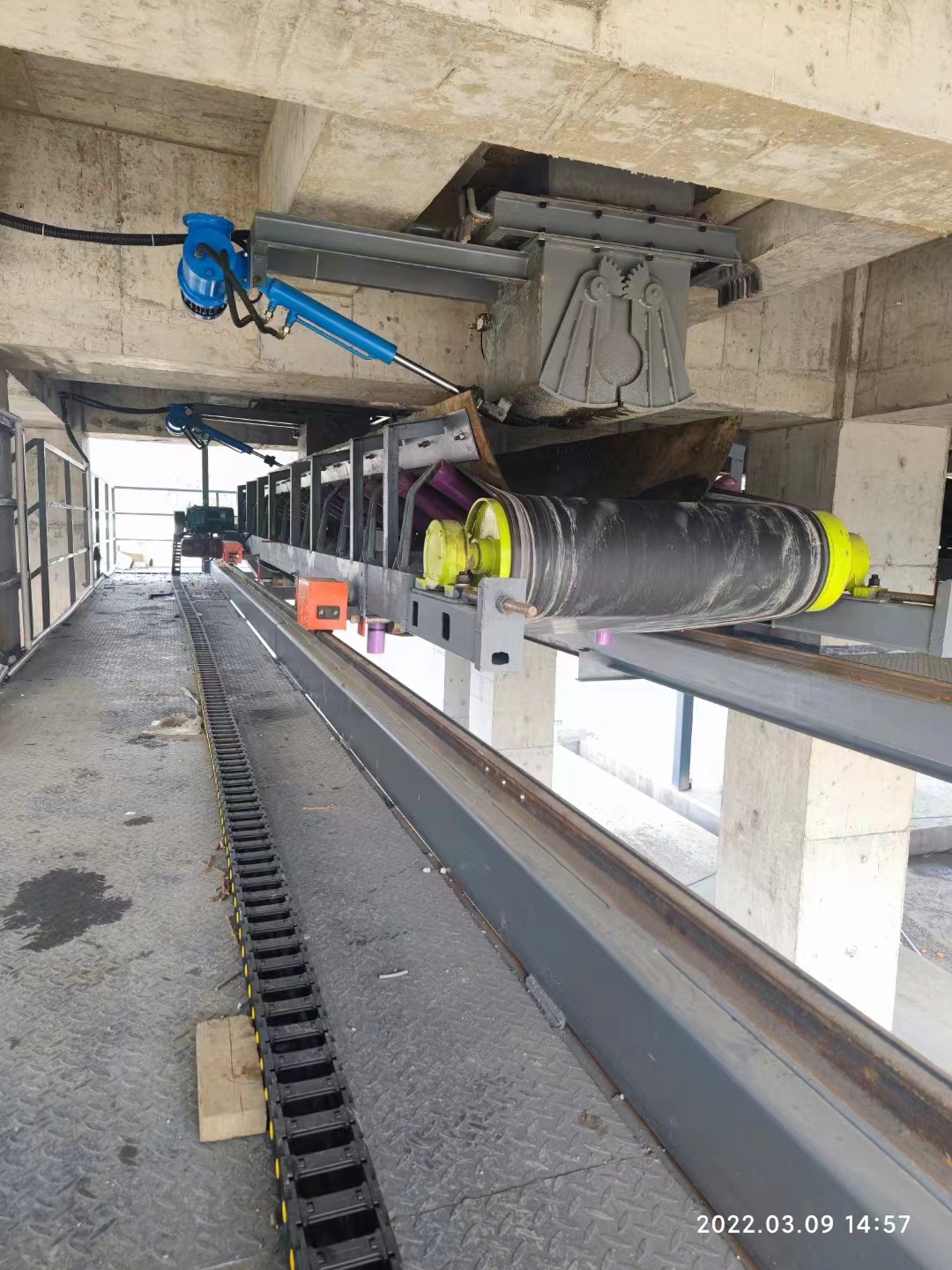

DSZXElectro-hydraulic sector gateAliasElectro-hydraulic sector valveSuited for flange size700mm to 1200mm openings, DSZX electro-hydraulic actuated sector gateElectro-hydraulic Push RodAs a drive, it is commonly used for discharging materials from coal silos (or other material storage silos).Loading gateAlso known as an annular loading gate, it falls under the category of intermittent loading gates.

Electro-hydraulic sector gate   Basic Parameters

Alias:Electro-hydraulic sector valve

Main Material: Carbon SteelCustomizable

Power Voltage:380V, 50Hz* Customizable

Drive Method:DYT Series Electro-Hydraulic Push Rod

Medium Flow Rate:≤28m/s

Applicable Temperature:≤300℃

Connection Type: Flanged Connection

Adjustable Performance: Variable Switch

Applicable Media: Solid granular materials, powdered materials

Structural Features

1. Utilizes a split hydraulic cylinder actuator, offering high driving force, simple overall structure, smooth operation, low failure rate, and quick material flow cutoff.

2. The bilateral drive design ensures greater flexibility and reliability during the opening and closing of the gate, resolving the issue of the gate being jammed or stuck when using the original single-side drive.

3. By utilizing a power pack and two actuating cylinders for transmission, it significantly reduces the lateral space required and the instability of structural fixation during installation that was commonly associated with the original electro-hydraulic push rod drive.

4. Easy installation: Simply fix the electro-hydraulic actuator directly onto the gate body. It can be mounted as a component directly on the bottom of the material storage, eliminating the hassle of on-site positioning for users. Additionally, it is compatible with other gates of the same diameter and type.

5. Compared to the standard type of sector gate, the cost of use and maintenance is lower.

6. Particularly suitable for larger diameters, higher material density, and irregularly shaped material blocks that are prone to clogging. This structural design is a key product recommended by our company.

Technical Specifications Sheet

Model

Main Dimensionsmm）

Electro-hydraulic Push Rod Model

Power(KW)

A

B

H

N×a

DSZ-50A-III

500

626

560

3×190

YZW-l-530

1.5

DSZ-60A-III

600

726

620

3×224

YZW-l-630

DSZ-70A-III

700

826

720

4×193

YZW-l-730

DSZ-80A-III

800

950

800

4×222

YZW-l-835

2.2

DSZ-90A-III

900

1050

880

5×198

YZW-l-930

DSZ-100A-III

1000

1150

960

5×218

YZW-l-1035

*Note: The above data has been standardized and can be designed and manufactured according to customer requirements.

Selection and Ordering

1. Please specify material characteristics, such as particle size, humidity, and required throughput.

2. Due to varying electrical control requirements, electrical control components are not normally included. Please specify if required at the time of ordering.

3. For use in explosion-proof areas, explosion-proof electro-hydraulic actuators can be selected as the power source; for use in extremely cold regions, please specify.
