Power Failure Reset Electro-Hydraulic Swing Gate Discharge Valve, Sludge Swing Gate Double-Open Discharge Valve

Crystals, solid granular materials, powdered materials ≤300℃≤28m/s

Power Voltage Adjustable characteristics Electro-hydraulic Push Rod Model

380V 50Hz Two-way Switch-type DYT Series

Applicable Medium Dry Dust

Operating Temperature ≤150℃

Deslagging volume 6-90m3/h

Features of a Butterfly Valve

1. The butterfly valve has a simple structure and utilizes   Welded from steel plate, driven by electro-hydraulic rods and cylinders, operates smoothly with low failure rate, capable of quickly cutting off the material flow.

2. The sector gate is driven by an electro-hydraulic push rod, with the push rod directly mounted on the body of the gate, eliminating the hassle of on-site positioning for users and ensuring easy installation.

3. The scroll valve is equipped with a dust cover at the discharge outlet to prevent dust from flying; it uses an electro-hydraulic push rod as the power source, replacing the cylinder transmission, thereby saving engineering investment costs; the valve body features a stepped structure to reduce material flow impact; the critical parts of the valve body are lined with a grate structure.Friction-resistant         Liner, reduces direct wear on the liner.

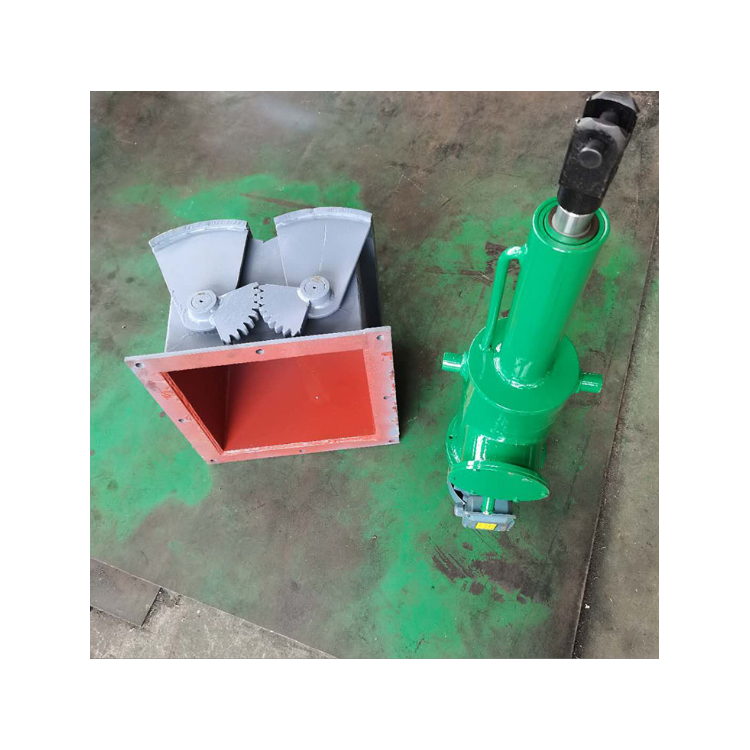

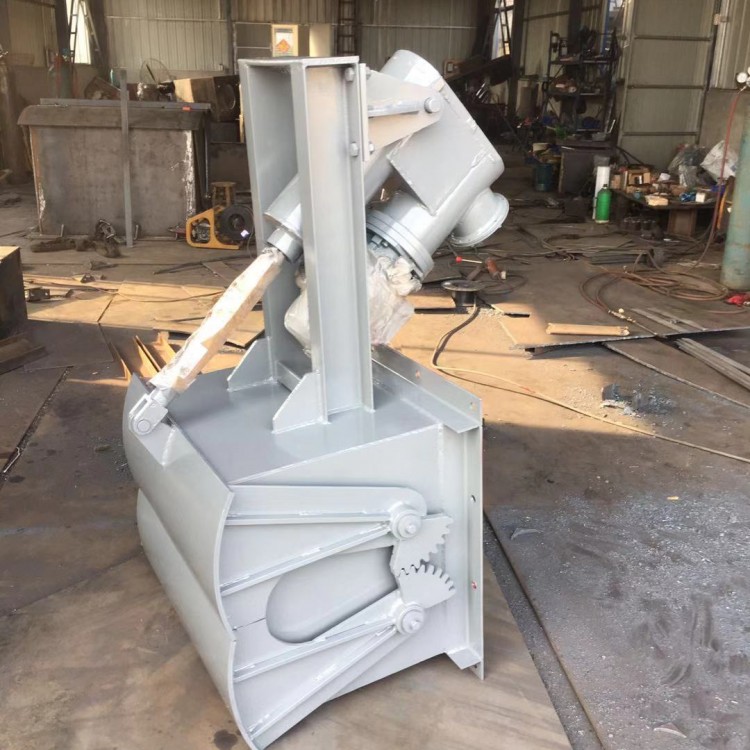

Electro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, seals, and electro-hydraulic push rods, among other components. The electro-hydraulic push rod drives a gear that rotates the sector gate plate around the shaft, causing it to open to one side, allowing material to fall. Once the receiving device is fully loaded, the electro-hydraulic push rod then drives the sector gate plate back to its original position, closing off the fallen material. This is the installation diagram of the electro-hydraulic sector gate (model number: ...) DSZ-70A-I) Includes detailed dimensions and technical requirements

Note: This gate can be custom designed and manufactured to meet the customer's requirements.

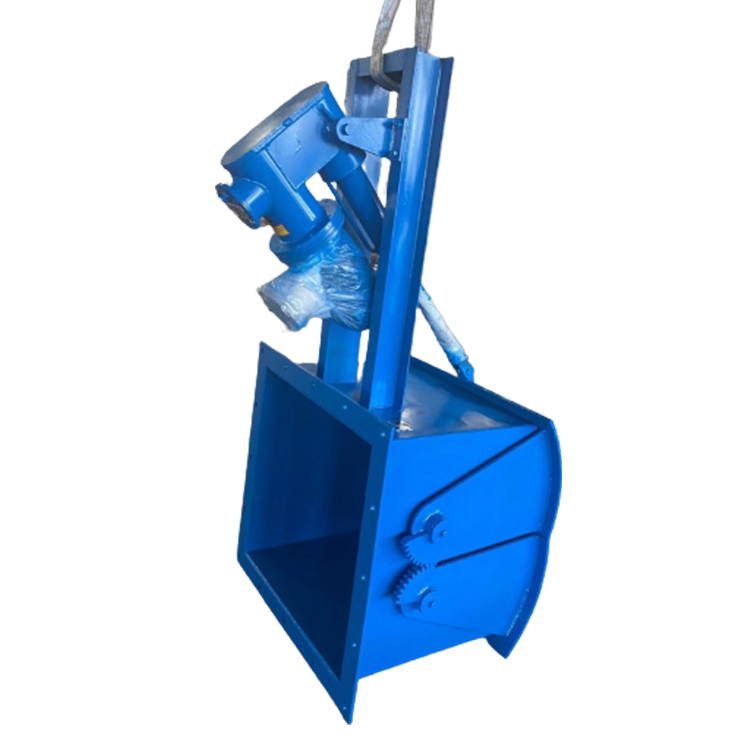

The hydraulic butterfly gate is composed of the main body, butterfly gate plate, shaft, seals, electro-hydraulic actuator, and other components. The electro-hydraulic actuator drives the gear, which in turn rotates the butterfly gate plate around the shaft, allowing the butterfly...

The gate valve opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electric-hydraulic actuator drives the sector gate back into place, closing off the falling material.

Standard models and electro-hydraulic push rod sets

1. DEZ-A Type Electro-hydraulic Butterfly Valve Parameters
