Mine conveyor double-sided plow coal machine B1400 plow type unloader Belt conveyor coal unloading device

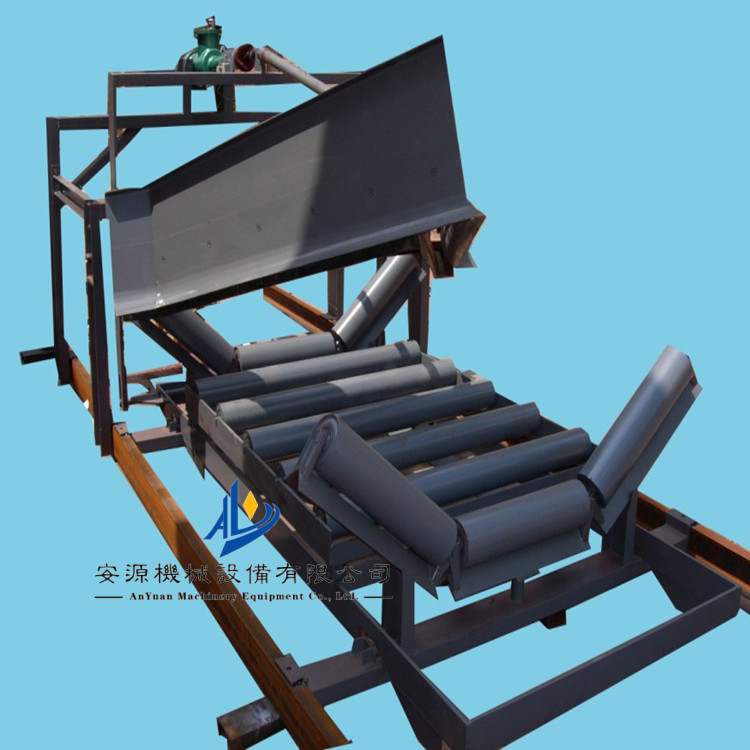

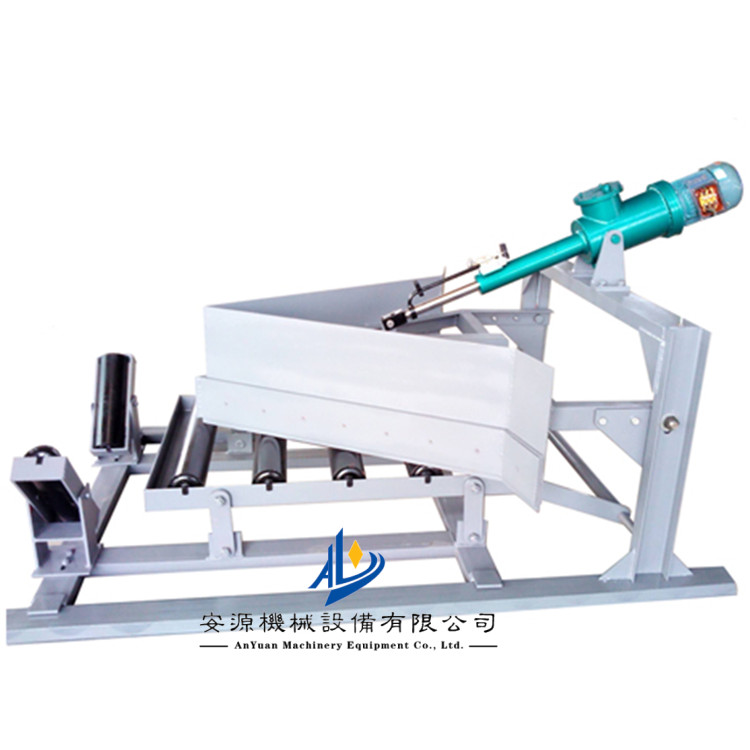

DYTLXThe electric-hydraulic automatic balancing scraper unloader is powered by an electric hydraulic rod, which extends to drive the scraper blade down. Then, through a linkage mechanism, the lifting roller assembly is simultaneously lifted, ensuring the scraper blade's lower edge is tightly sealed against the conveyor belt surface, allowing materials on the belt to be unloaded into the designated area. After unloading is complete, the drive rod retracts, lifting the scraper blade, while the lifting roller assembly descends through the linkage mechanism, allowing the material to pass smoothly. The product features include:

aMost structures are equipped with mechanical connections, particularly linkage mechanisms, which relatively reduces friction and extends the service life (up to)5-10Annually (not to be replaced annually).

bDriven by electro-hydraulic push rods, it overcomes the deficiencies of electric push rods, such as poor overload capacity, tendency to burn out motors, and the ease of bending lead screws.

cThe plow blade of the main plow and the flip door of the locking gas funnel are both made of high-chromium manganese.Wear-resistant Materials, small plowshareFriction-resistantMade from offset printing, significantly reduces maintenance workload, thereby saving costs.

YAYLCThe Type Self-Controlling Dust Removal Discharging Device (Heavy Discharging Truck) is designed based on the digestion and absorption of advanced technologies and experiences from both home and abroad. It can be widely used in industries such as metallurgy, mining, power, coal, building materials, and refractory materials. Its main structural features are:

1The main drive unit employsYEJType-built motor, worm gear reducer, and transmission mechanism composed, with simple structure, high efficiency, easy adjustment, and smooth operation.

2Adopted      Conductivity power supply unit, ensuring reliable power supply without distance limitations.

3The overall layout of the unloading system is rational, with a large wheel pressure on the main drive wheel, eliminating the phenomenon of slippage during startup. The movement is smooth, and the stopping position is accurate and reliable; there will be no displacement of the unloading vehicle due to the high tension of the belt.       At times, the material can run in the direction of the conveyor belt or against the conveyor belt direction.

4The redirecting drum is made of high-strength material, capable of withstanding greater belt tension.

5The frame has a rational structure with good strength and rigidity.

6Liner for funnel chuteFriction-resistant         Liner, long-lasting.

7The unloading ports of the factory are sealed with tape, while the designated material ports are sealed with dust covers, both of which effectively reduce dust pollution. Adding exhaust ventilation and dust removal in the storage silos would enhance the effect even further.
