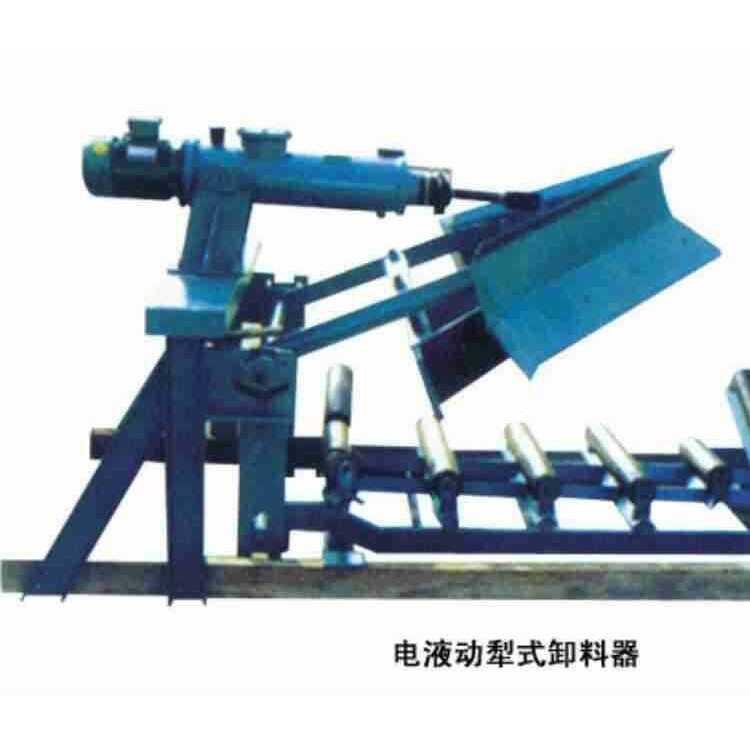

DYTN-S-1200 Electric-Hydraulic Plow-Type Discharging Device (Coal Separation Unit) - Coal Plow

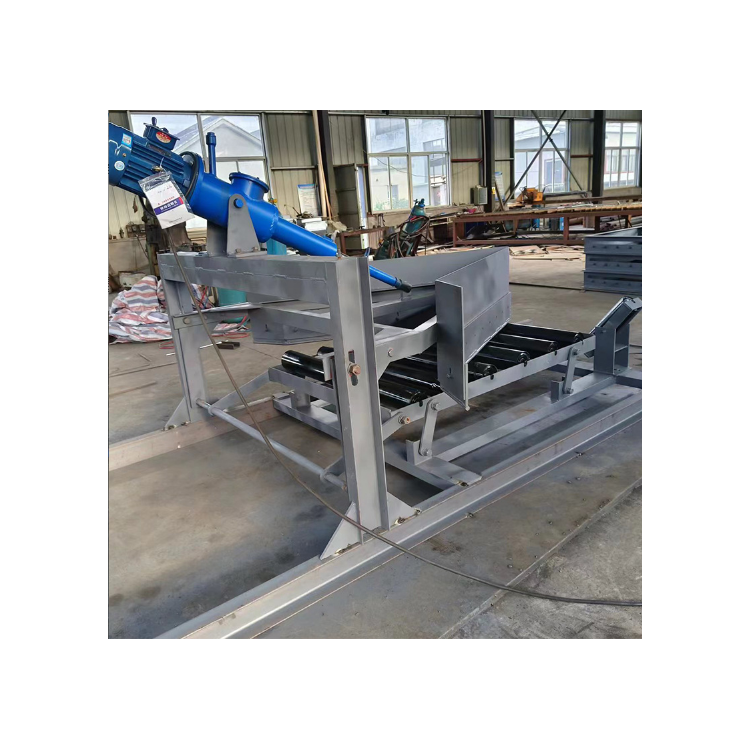

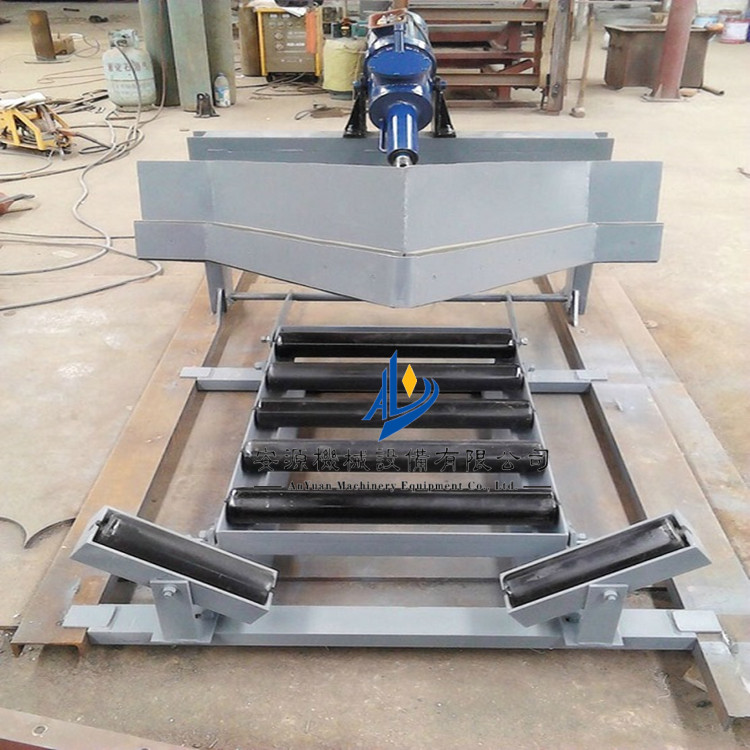

DYTLXThe electric-hydraulic automatic balancing scraper unloader is powered by an electric hydraulic push rod, which drives the extension of the push rod to lower the scraper blade. The lowering of the scraper blade is then synchronized with the lifting of the roller assembly by a linkage mechanism, ensuring a tight fit between the bottom edge of the scraper blade and the conveyor belt surface, allowing materials on the belt to be unloaded into the desired location. After unloading is complete, the push rod retracts, raising the scraper blade, while the roller assembly descends through the linkage mechanism, allowing the material to pass smoothly. The product features include:

aMost structures are mechanically connected, particularly with linkage mechanisms, which relatively reduces friction and extends the service life (up to)5-10Annually (not to be changed yearly);

bPowered by electro-hydraulic push rods, it overcomes the deficiencies of electric push rods, such as poor overload capacity, easy motor burnout, and the easy bending of lead screws.

cThe plow blade of the main plow and the flip door of the gas lock funnel are both made of high-chromium manganese.Abrasion-resistant Materials, small plow headsFriction-resistantMade of rubber, it significantly reduces maintenance workload, thereby saving costs.

YAYLCThe Self-Controlling Dust Removal and Discharging Device (Heavy Discharging Truck) is designed based on the digestion and absorption of advanced technologies and experiences from both home and abroad. It can be widely used in industries such as metallurgy, mining, power, coal, building materials, and refractory materials. Its main structural features are:

1Primary drive unit utilizesYEJType built-in motor, worm gear reducer, and transmission mechanism composed of them, featuring simple structure, high efficiency, easy adjustment, and smooth operation.

2Adopted      Conducting line power supply unit, ensuring reliable power supply without distance limitations.

3The overall layout of the unloading system is reasonable, with the main drive wheel having sufficient pressure to eliminate slippage during startup. The movement is smooth, and the stopping position is accurate and reliable; there is no tendency for the unloading vehicle to shift due to the high tension of the belt.       At times, the material can run in the direction of the conveyor belt or against the direction of the conveyor belt.

4The reversing roller is made of high-strength material, capable of withstanding greater belt tension.
