Wastewater Treatment Electric Sluice Gate, Dual-Use Hand/Electric Gate Valves, Single-Cylinder Flat Sluice Gate System

Usage

   This gate valve is an improved product from our factory, featuring advanced technology and reliable quality. It is widely used in industries such as metallurgy, mining, and construction materials, and is an ideal device for controlling the flow of dust materials.



Features

1. This valve is easy to operate and features a simple structure.

2. High performance, long service life.

Operating Principle

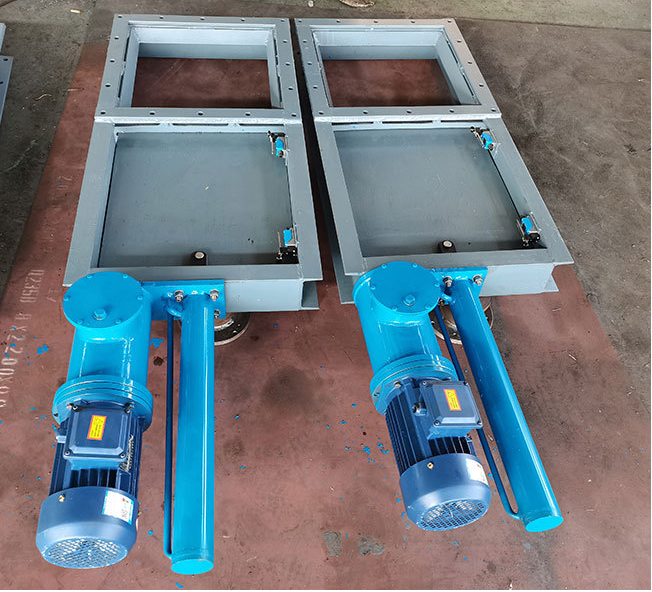

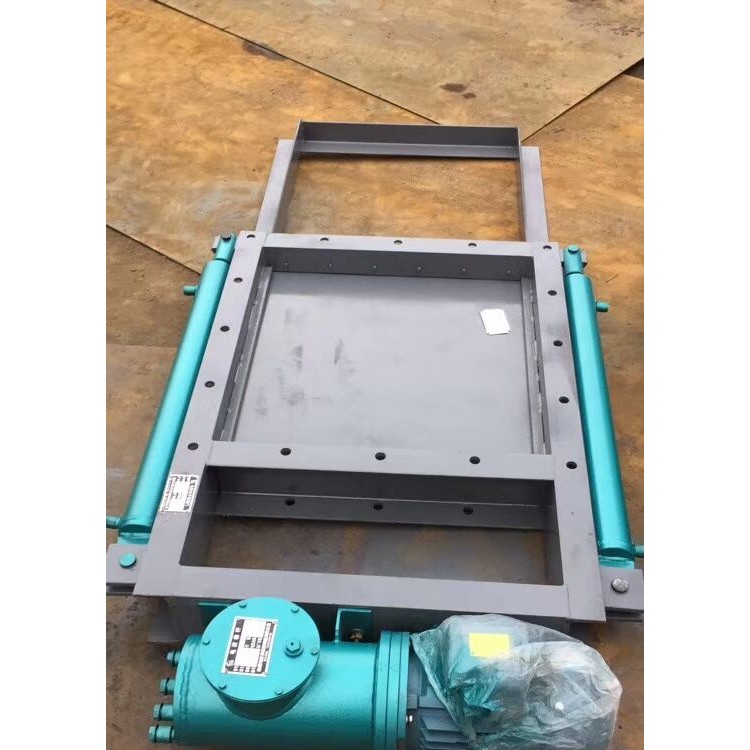

The gate valve is primarily composed of components such as the frame, gate plate, and electro-hydraulic unit. During operation, the piston rod is driven by hydraulic pressure to move the gate plate back and forth horizontally, achieving the purpose of opening and closing the gate.





Application：

　　 The gate valve is widely used on pipelines for controlling dust material flow in industries such as building materials, metallurgy, and mining, and is an ideal device for controlling dust material flow.



Features:

　　 The gate valve features a simple structure, light weight, flexible operation, and easy installation and disassembly.   Carbon steel manufactured, with high strength, excellent performance, and long service life; screw and nut are equipped with soft protective covers, unaffected by external dust.



Operating Principle:

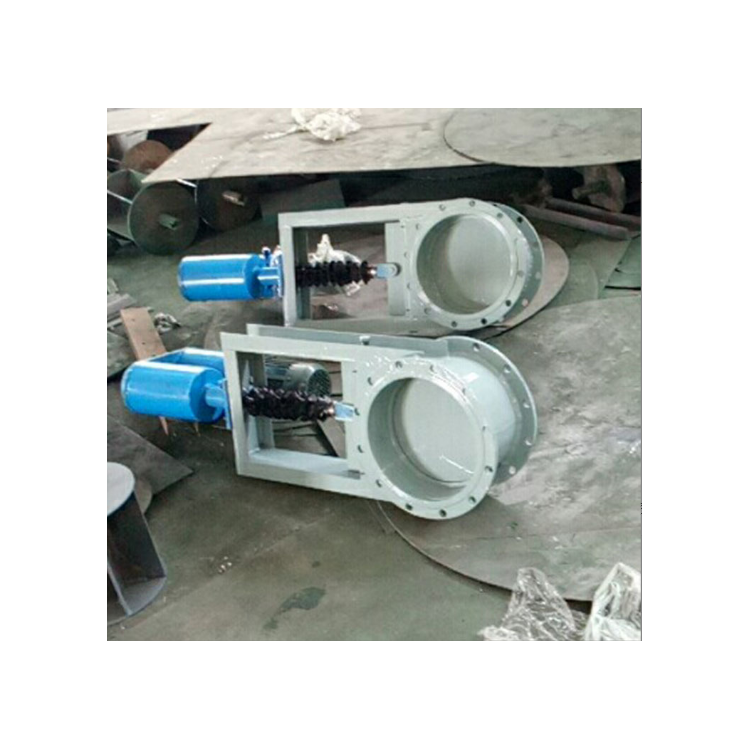

　　 Manual flat gate is mainly composed of the frame, screw thread nut, handwheel, and gate plate. Handwheel(The Sprocket) turns, and the screw rod, along with the screw nut and gate plate, performs a reciprocating horizontal movement. The electro-hydraulic flat gate valve is actuated by the cylinder to move the gate back and forth, achieving the purpose of opening and closing the valve.

Application：

Sliding gate valves are the primary control equipment for the flow and conveying volume of powdery, granular, granulated, and small-sized materials. They are widely used in industries such as metallurgy, mining, building materials, grain, and chemicals, at storage tops, bottoms, and feed openings, etc. They are ideal for controlling large flow changes, frequent opening and closing, and rapid cutting off.

Features：

The gate features a simple structure, flexible operation, light weight, no jamming, quick cutting, and is particularly suitable for various solid materials andφ50 around size material conveying and flow adjustment, installation is angle unrestricted. Easy to operate, with the ability to adjust the opening at any time.

Key Performance Parameters:
