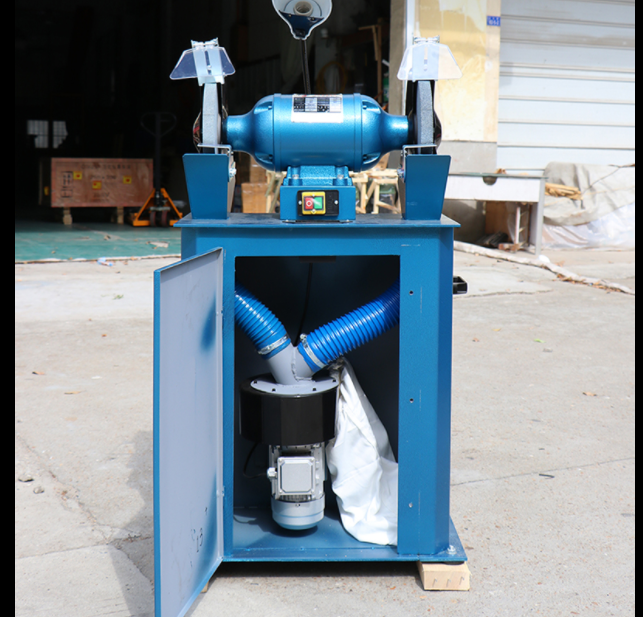

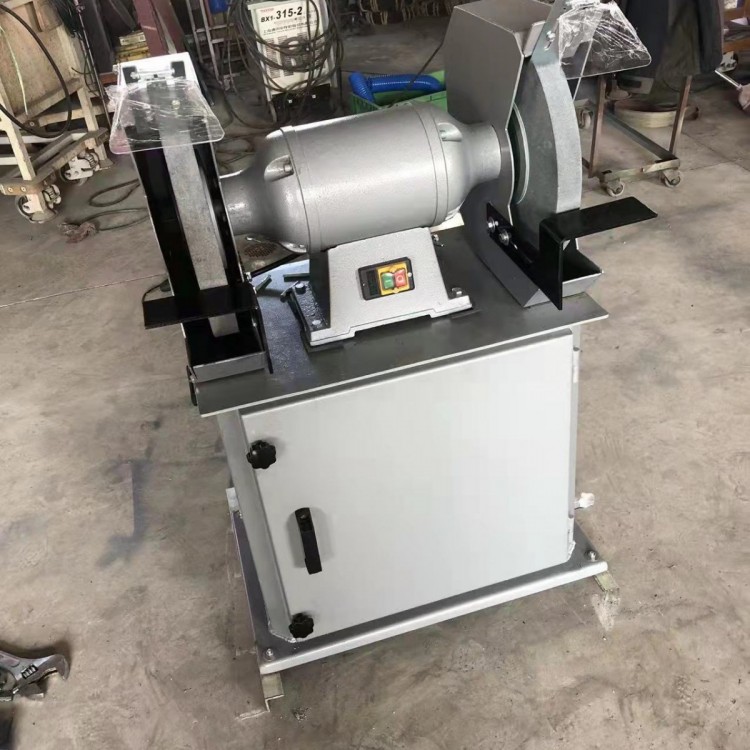

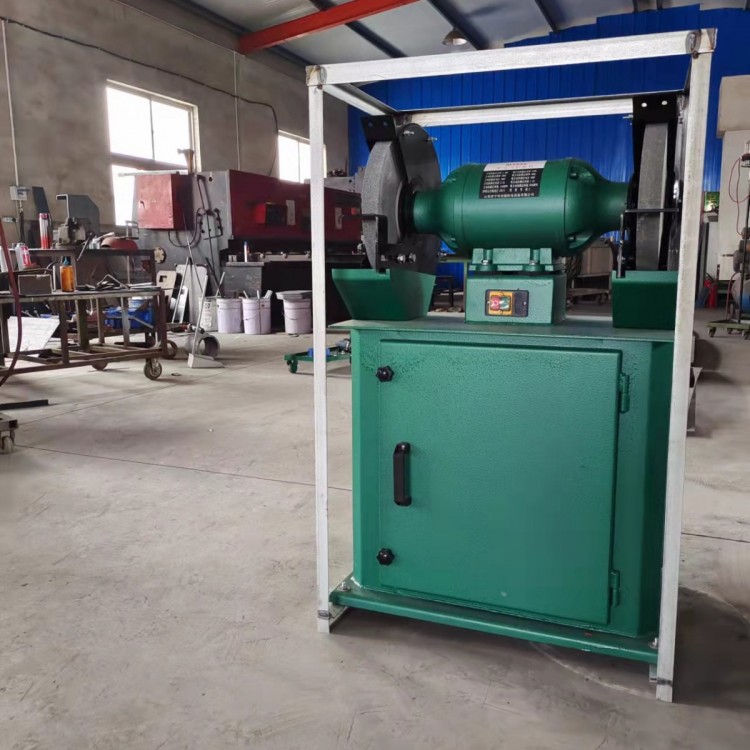

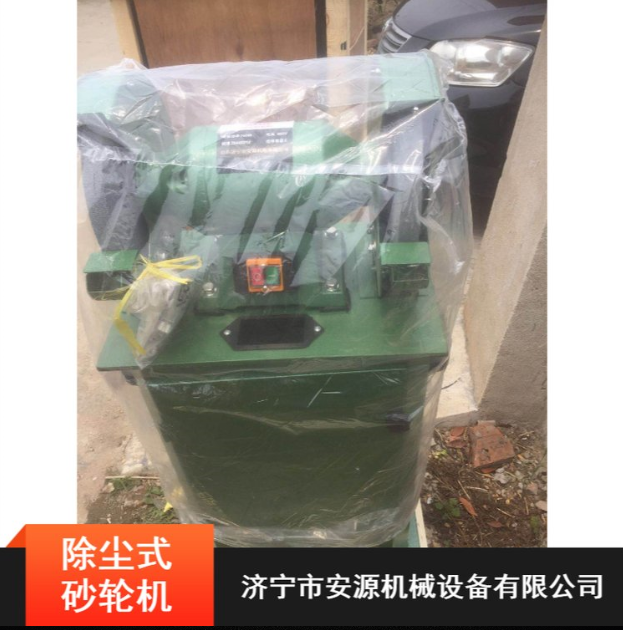

Dust Removal Grinding Wheel Machine M3325, Self-Driven Floor-Type Grinding Wheel Machine, Drive-Type Casting Polishing Machine

  1. Grinding, deburring, and cleaning. Dust-extraction type grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools, and can also be used for grinding, deburring, and cleaning of small parts.

2 Low environmental requirements.Dust-Extraction Type Grinding Wheel MachineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90%            No Chinese content provided.40°C humid tropical region.

3 High dust removal efficiency                                                                      The machine employs dust removal with bag filters, achieving an efficiency of over 98% and dust concentration below 10 mg/m³. Compliant with the Ministry of Labor and Human Resources and the Ministry of Environmental Health.                                                                      Regulations for excellent vacuuming performance                              Labor environment Operators are free from dust exposure.

Use indoors. Dust-extraction type grinding wheels are not resistant to chemical corrosion and must not be used outdoors.

Section 2: Technical Specifications of the Grinding Wheel Machine

New model

MC3015

MC3020

MC3025

MC3030

MC3035

MC3040

Power

0.25

0.5

0.75

1.5

1.75

2.2

Frequency

50

50

50

50

50

50

Current

1.7

1.24

1.7

3.4

3.95

4.9

RPM

2850

2850

2850

1420

1440

1430

Efficiency

67

71

75

79

80

81

Section 3: Grinding Wheel Machine Usage Instructions

Grinder prior to use                  Please provide the Chinese content to be translated.Megaohmmeters above 500 volts measure the insulation resistance, which is not less than 0.5 megaohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the wheel; gently tap it with a wooden mallet. A clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, turn the shaft extension by hand to check for smooth, easy movement and listen for any rubbing noises.

4. The direction of rotation for grinding wheels and fans should match the direction indicator.
