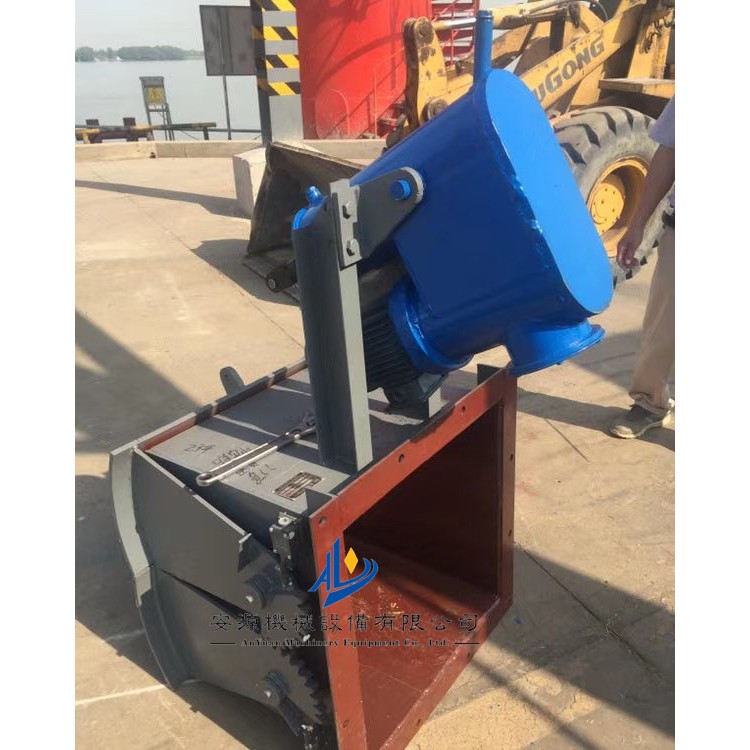

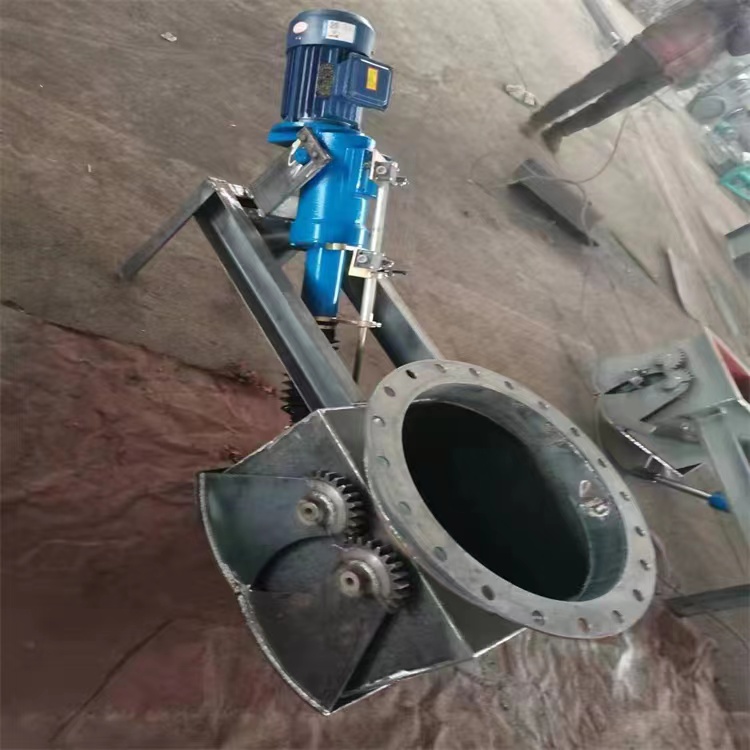

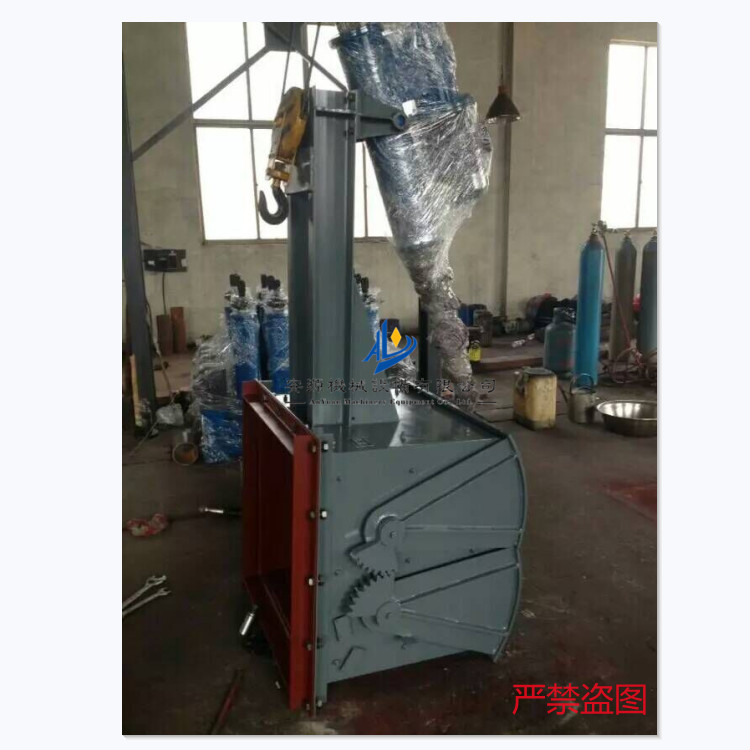

YEZ-800-II Electro-Hydraulic Swing Gate, Mining Arch Bucket Valve

Fanh-shaped gateValve parameters

Crystals, solid granular materials, powdered materials ≤300℃≤28m/s
Power Voltage Adjustable characteristics Electro-hydraulic Push Rod Model
380V50HZDual switchesDYTSeries
Applicable Medium Dry dust
Operating Temperature ≤150℃
Ash Discharge Quantity 6-90m3/h

Features of Segment Gate Valve

1The winged valve has a simple structure.Welded from steel sheets, driven by electro-hydraulic actuators and cylinders, it operates smoothly with a low failure rate and can quickly interrupt the material flow.
2. The scroll valve is driven by an electro-hydraulic actuator, directly mounting the actuator to the gate body, eliminating the hassle of on-site positioning for users and ensuring easy installation.
3. The wing valve is equipped with a dust cover at the discharge outlet, preventing dust from flying; it uses an electro-hydraulic push rod as the power source, replacing the cylinder transmission to save engineering investment costs; the valve body features a stepped structure, reducing material flow impact; and the key areas are lined with abrasion-resistant linings with a grill structure, minimizing direct wear on the linings.
