CNA-T Series Articulated Arm Tube Fitting Laser Fork

CNA-T Series Articulated Arm Pipe Fitting Laser Fork

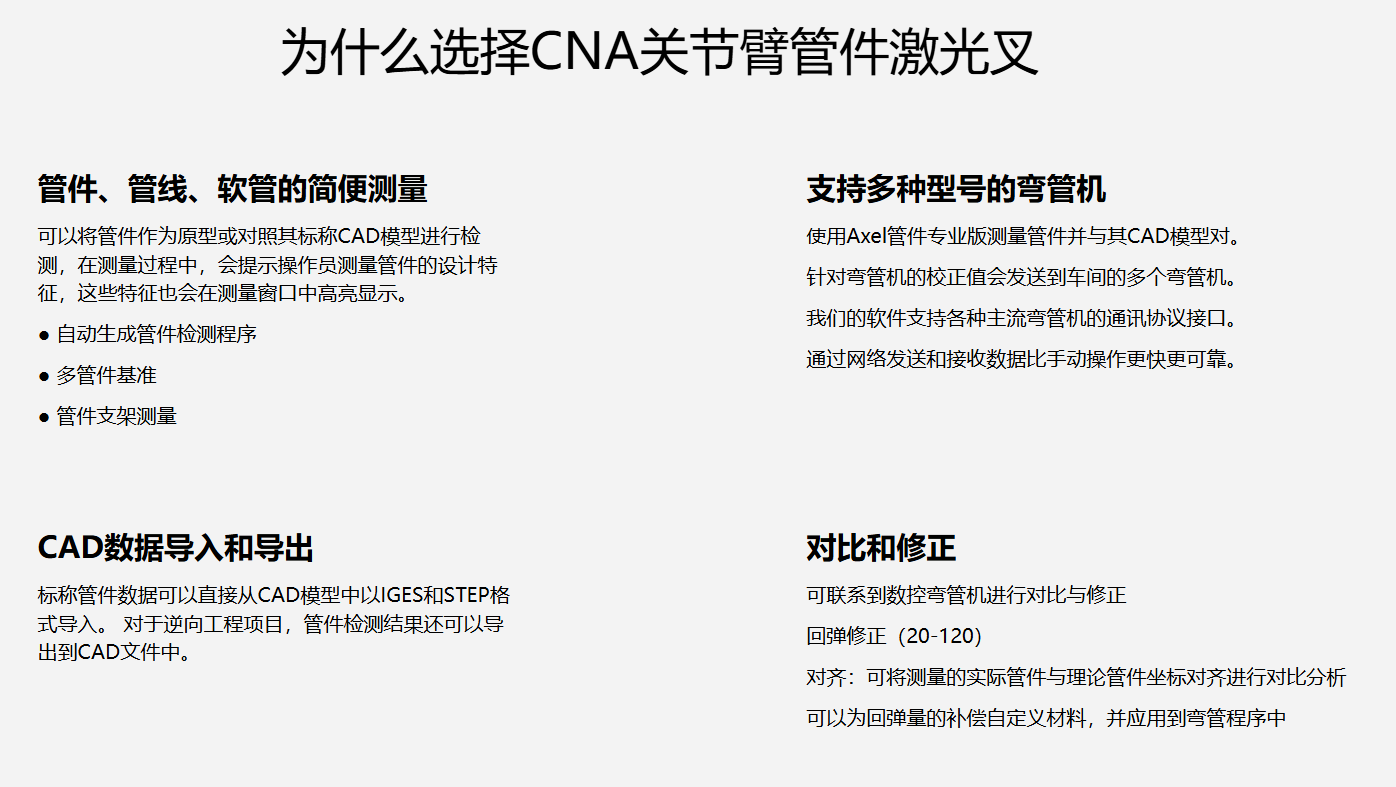

Bend tube parts are widely used in automotive manufacturing, aerospace, construction machinery, energy, rail transit, and other industries. The CNA-T series non-contact laser bend tube measurement system can be directly installed next to the tube production line to inspect pipelines, hoses, and more. In addition to offering conventional articulated arm detection functions, it also provides processing parameters and reasonable correction data matched with the bending equipment for use in the bending machine. This significantly reduces the time required for equipment adjustment and improves product pass rates.

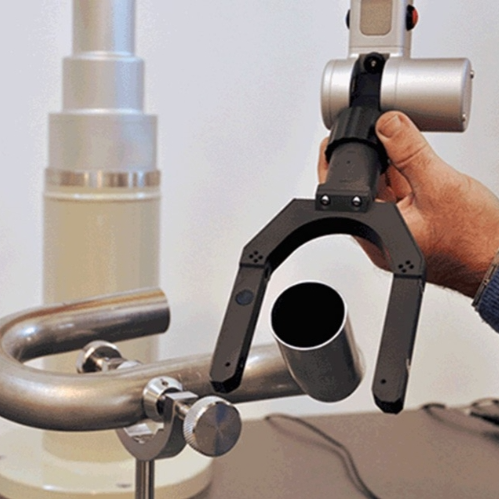

We offer 5 sizes of laser forks: 30mm, 50mm, 80mm, 150mm, and 200mm. Non-contact laser forks can measure pipe diameters ranging from 1mm to 180mm, while larger diameters can be measured using a contact hard probe.

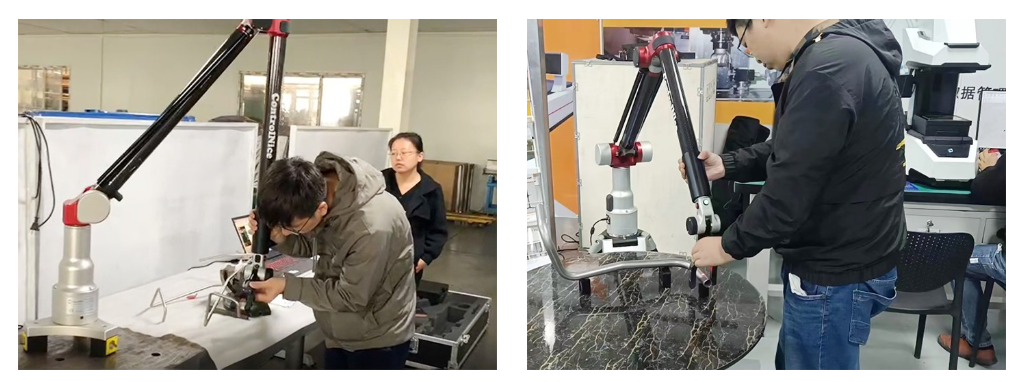

Laser Fork Application for Articulated Arm Pipe Fittings
