The ATec S2H High-Precision Stackable Mini-Oscillation Incubator (with Active Humidity Control) is a high-precision oscillator incubator launched by RunDu Biotechnology in response to the market's high standards and demands. This product has integrated many advantages of the company's offerings. It provides a perfect solution with high-precision temperature control, active humidity control, and an intelligent touch control system, tailored to the specific requirements of biological culture. The ATec S2H is suitable for insect cell culture and small-volume cultivation of various special microorganisms.
Product Advantages:
7-inch LCD touch control screen, simple and intuitive to operate
7-inch touch control panel is intuitive and easy to operate, allowing for easy control of parameter switches and adjustments without the need for specialized training.
▸ Multi-segment programs can be set, with different parameters such as temperature, speed, concentration, and time for cultivation, with automatic and seamless transitions between programs; any parameters or historical data curves of the cultivation process can be viewed at any time.
▸ Perfect appearance, the display area shows temperature and speed. With the enlarged numbers on the display and clear symbols, you can observe from a greater distance. Each function on the buttons is assigned a different color, making operation more convenient.
▸ Settable unlock password for screen control, providing experimental security for users of public laboratories, to prevent experiments from being mistakenly stopped during operation.
▸ Comfortable remote control function, intelligent remote control for easy parameter adjustment of the incubator
Active humidity control function, capable of maintaining humidity at 85% r.h., with the evaporation rate of the微量culture liquid kept under 10% within a week.
▸ RADOBIO's embedded humidification and humidity control module uses a stainless steel heating disk for humidification, ensuring stable and reliable humidity control while avoiding the drawbacks of traditional humidification methods.
▸ If humidification is required, the water supply solenoid valve will automatically open. The high-temperature heating plate will rapidly vaporize water into molecular water vapor while sterilizing, utilizing its own volume expansion to enter the incubator and quickly spread throughout the entire incubator via the internal circulation system.
▸ Due to the complete vaporization of liquid water into free molecules at high temperatures, water vapor is not easily condensed in the incubator, achieving humidification without the drawback of traditional ultrasonic humidifiers where water vapor tends to condense a second time.
▸ High-temperature humidification also serves as a sterilization process, preventing the growth of harmful bacteria in the water tray that commonly occurs with traditional humidification methods.
Slide-to-retractable blackout shades, easily adjustable for privacy and light control (optional)
▸ For photosensitive media or organisms, cultivation can be conducted by pulling down the light-blocking curtain. The sliding light-blocking curtain prevents sunlight (UV radiation) from entering the incubator while still allowing convenient observation of the internal cultivation conditions.
The blackout curtains are positioned between the glass window and the outer box panel, offering both convenience and aesthetics, perfectly resolving the awkwardness of pasting foil paper.
Intelligent remote monitoring feature, with remote control operation and real-time machine operation status viewing (optional)
▸ Intelligent remote control allows for more convenient control of the incubator's parameters
Double glazed glass door, ensuring superior thermal insulation and security.
Double-layer safety glass door with excellent thermal insulation properties
❏ Door heating function effectively prevents fogging on glass doors, allowing for real-time observation of cell culture conditions (optional)
▸ The door heating function effectively prevents condensation on the glass windows, allowing for clear observation of the shaking flasks inside even when there is a significant temperature difference between the inside and outside of the incubator.
Multiple sterilization system, offering superior sterilization effects.
▸ Multiple UV sterilization units ensure effective sterilization in every corner of the cabin, and the UV sterilization units can be turned on during rest. The door switch ensures that the UV lights automatically turn off when the door is opened (optional).

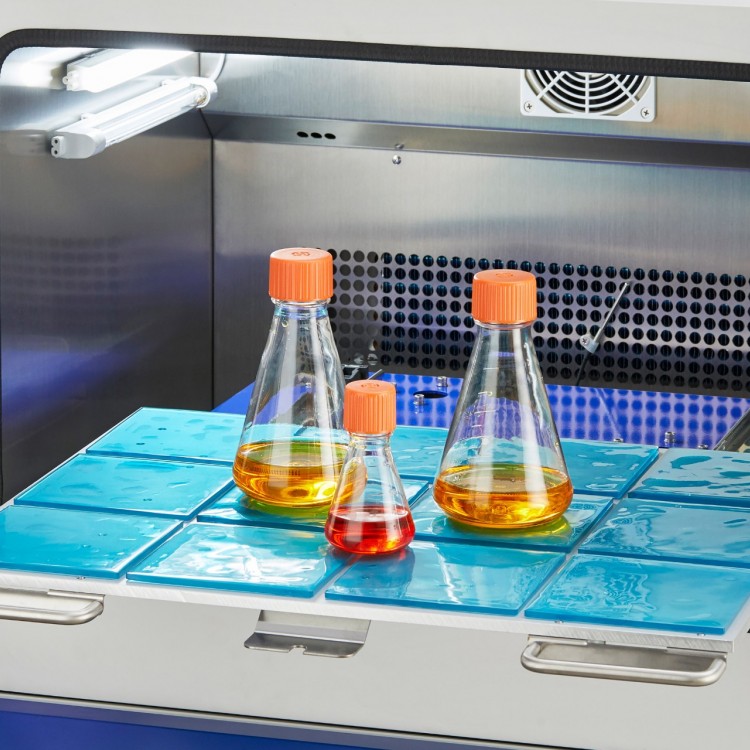

Odorless, environmentally friendly adhesive board material, creating a comfortable working environment
▸ Eco-friendly, odorless sticky sheets that can be freely combined and粘贴 according to the size of the shaker. Various sizes of culture bottles can be directly mounted on the adhesive board without the need for clamps, making cleaning easier. User-friendly design enhances space utilization. The adhesive board is suitable for various common UV sterilization methods. When dirt accumulates on the surface of the sticky sheets after some use, they can be removed, washed with water, and reused. Water spilled on the adhesive board surface will not affect its adhesiveness, allowing for normal use.
A seamless, fully stainless steel, rounded arc angle with an integrated cavity, aesthetically pleasing and easy to clean.
▸ Waterproof design for the cabinet; all components sensitive to water or mist, including the drive motor and electronic parts, are all placed outside the cabinet, allowing the incubator to cultivate in high-temperature and high-humidity environments.
During the cultivation process, any accidental broken bottles will not cause damage to the incubator. The bottom of the incubator can be directly cleaned with water, or thoroughly cleaned with detergents and sterilizers to ensure a sterile environment inside. The bottom liquid outlet can easily release cleaning fluids, and after the cleaning is done, the incubator can be completely sealed.
The machine operates nearly silent, with multi-layered stacking and high-speed rotation without any abnormal vibration.
▸ Features unique bearing technology, stable start-up, almost noiseless operation, and no abnormal vibration even when stacked in multiple layers.
The machine operates stably with a longer lifespan.
Integrated molding fixture, stable and durable, effectively preventing unsafe incidents caused by fixture breakage.
The fixtures are directly cut and shaped from solid stainless steel sheets, ensuring stability and durability with no risk of breakage, effectively preventing unsafe incidents such as fixture breakage and bottles being shaken out.
▸ The fixed arm of the stainless steel fixture is encapsulated, preventing injury to users and reducing friction with the shaker bottle, providing a quieter experience.
Zero-heat waterproof fan, significantly reduces background heat, saves energy
▸ Compared to traditional fans, heat and waterproof fans can maintain a more uniform and stable temperature inside the cabin, effectively reducing background heat. Without activating the cooling system, they offer a wider range of cultivation temperatures, thereby saving energy consumption.
Push-pull brushed chrome-plated aluminum alloy tilt plate, easily placing culture containers
▸ The 8mm thick aluminum alloy shake plate is lighter and stronger, with a brushed chrome finish that is aesthetically pleasing and easy to clean.
▸ Sliding design for easy placement of culture containers at specific heights and spaces

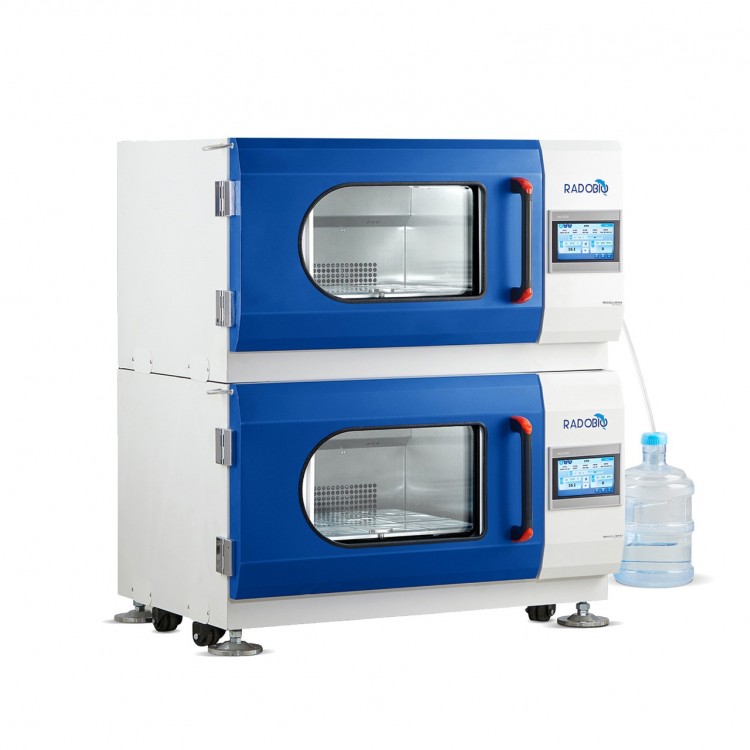

Flexible arrangement, stackable for efficient use of lab space
▸ Can be used as a single-layer floor-standing or countertop unit, also available in double or triple stacked configurations. In a triple stacked setup, the top tray extends only 1.3 meters from the ground, allowing for easy operation by the experimenter.
▸ A system that grows with the task; when the cultivation capacity is no longer sufficient, it can easily stack up to 3 layers without additional installation, without the need for further setup. Each stacked shaking incubator operates independently, providing different cultivation conditions.
Triple safety design ensures the safety of the operator and the sample.
Optimized PID parameter settings prevent overshooting of temperature during the heating and cooling process.
▸ Fully optimized oscillation system and balancing system, ensuring no unnecessary vibrations at high-speed oscillation
▸ In the event of a power outage, the shaker will remember the user's set parameters and automatically restart according to the original settings upon power return, while also automatically prompting the operator about the unexpected situations that occurred.
▸ If the user opens the hatch during operation, the rocking bed oscillating plate will automatically engage a soft brake until the oscillation is completely stopped. Upon closing the hatch, the rocking bed oscillating plate will automatically initiate a soft start until it reaches the preset oscillation speed, preventing any unsafe incidents caused by a sudden increase in speed.
▸ When a parameter significantly deviates from the set value, the automatic sound and light alarm system is activated.
▸ Equipped with a data export USB port on the side, it allows for easy export of backup data, ensuring convenient and secure data storage.
