The Herocell C1H All-in-One CO2 Incubator (Active Humidity Control) is a versatile model launched by RunDu Biotechnology based on diverse needs from multiple biological clients. This product combines all the advantages of our company's offerings, adding more design features to meet the specific requirements of cell culture, striving to provide you with a perfect solution for your cell culture needs. The Herocell C1H is suitable for various cell types, including CHO, hybridoma, mammalian cells, insect cells, and serves as a culturing device before entering bioreactor culture. It features a unique bearing technology for stable startup and near-soundless operation, with no abnormal vibrations even when stacked. The unique air circulation system ensures no temperature hotspots within the chamber, guaranteeing high uniformity of the temperature field. It can be stacked up to 2 or 3 layers, saving laboratory space even more.
RADOBIO offers a range of additional features to cater to clients' complex cultivation needs, including remote control and humidity control. The sliding blackout curtains provide convenience for users to shield samples from light and monitor cultivation progress at any time. Users can also configure remote control modules to input data, adjust parameters, and review historical data. This all-in-one shaker is always ready to meet various application requirements.
Product Advantages:
7-inch LCD touch control panel, simple, intuitive, and easy to operate
7-inch touch control panel is intuitive and easy to operate; without specialized training, it's easy to control the on/off of a parameter and change its value.
▸ Multi-segment programs can be set, with adjustable parameters such as temperature, speed, gas concentration, and time, with automatic and seamless transitions between programs; any parameters and historical data curves of the culture process can be viewed at any time.
▸ Perfect appearance, the monitoring interface displays temperature, speed, and gas concentration. With the enlarged numbers and clear symbols on the display, you can observe from a greater distance. Each function on the buttons has a different color assigned, making operation easier.
▸ Settable screen unlock control password provides experimental security for users in public laboratories, preventing experiments from being mistakenly terminated during operation.
▸ Comfortable remote control function, intelligent remote control allows for more convenient adjustment of incubator parameters
Active humidity control function, capable of maintaining humidity at 85% r.h., with the evaporation rate of the微量culture liquid kept under 10% within a week.
▸ RADOBIO's embedded humidification and humidity control module utilizes a stainless steel heating disk for humidification, ensuring stable and reliable humidity control while avoiding the drawbacks of traditional ultrasonic humidification methods.
▸ If humidification is required, the water inlet solenoid valve will automatically open, and the high-temperature heating plate will quickly vaporize water into molecular water vapor while sterilizing, utilizing its own volume expansion to enter the incubator and rapidly disperse throughout the entire incubator chamber via the internal circulation system.
▸ Due to the fact that liquid water is completely vaporized into free molecules at high temperatures, water vapor is not easily condensed in the incubator, achieving a good humidification effect and avoiding the drawback of traditional ultrasonic humidifiers where water vapor tends to condense a second time.
▸ High-temperature humidification simultaneously serves as a sterilization process, avoiding the弊端 of traditional humidification where bacteria can grow in the water tray, leading to contamination.
Slide-out blackout curtains, easily operated for convenient light blocking and cultivation
▸ For photosensitive media or organisms, cultivation can be achieved by pulling down a light-blocking curtain. The sliding light-blocking curtain prevents sunlight (UV radiation) from entering the incubator, while still allowing convenient observation of the internal cultivation situation.
The blackout curtains are positioned between the glass window and the exterior box panel, offering both convenience and aesthetics, perfectly solving the inconvenience of sticking foil paper.
Intelligent remote control feature (optional), remote operation, real-time monitoring of machine operation status
▸ Smart remote control allows for easier management of incubator parameters
Double-glazed door, ensuring excellent thermal insulation and safety.
Double-glazed security doors with excellent thermal insulation properties.
Door heating function effectively prevents fogging on glass doors, allowing for real-time observation of cell culture conditions.
▸ The door heating function effectively prevents condensation on the glass windows, allowing for a clear observation of the internal shaker bottles even when there is a significant temperature difference between the inside and outside.
Triple sterilization system, with superior sterilization effectiveness
▸ Multiple UV Sterilization Units ensure effective sterilization in every corner of the cabin. The UV sterilization unit can be turned on during rest periods. The door switch ensures that the UV lights automatically turn off when the door is opened (optional).

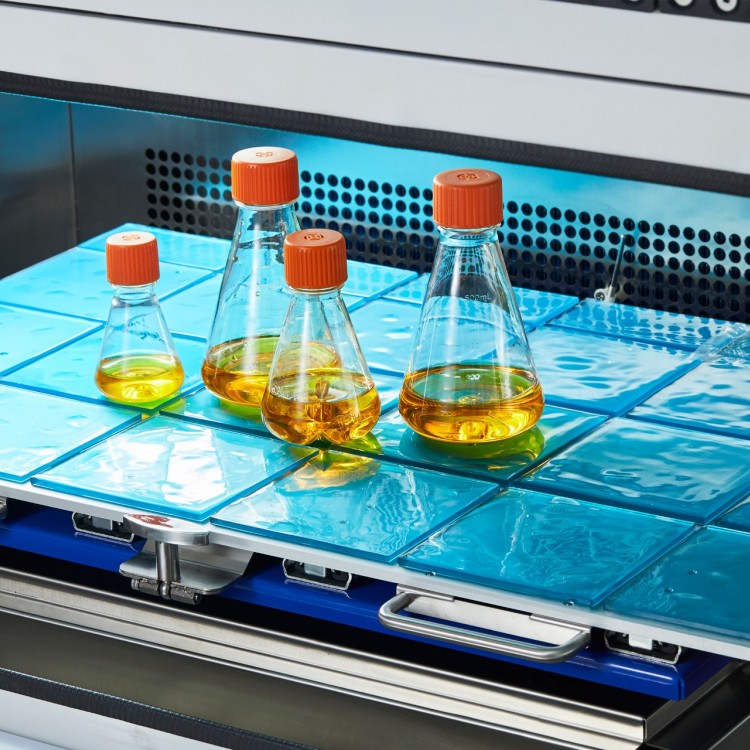

Odorless, environmentally friendly adhesive board material, creating a comfortable work environment
▸ Eco-friendly, odorless adhesive sheets; freely combine and stick according to the size of the shaking board. Various size culture bottles can be directly fixed on the adhesive board without the need for clamps, and it is also easy to clean. User-friendly operation enhances space utilization. The adhesive board is suitable for various general UV sterilization methods. When dirt accumulates on the surface after a period of use, the adhesive sheets can be removed, washed with water, and reused; spilled water on the board surface will not affect its adhesion, allowing normal use.
Full 304 stainless steel seamless spherical cavity, easy to clean with water, aesthetically pleasing and convenient for maintenance.
▸ Enclosed with waterproof design for the cabinet, all components sensitive to water or mist, including the driving motor and electronic parts, are housed externally. Thus, the incubator can be used to cultivate in high-temperature and high-humidity environments.
▸ Any accidental broken bottles during the cultivation process will not damage the incubator. The bottom of the cabinet can be cleaned directly with water, or thoroughly cleaned with detergents and sterilizers to maintain a sterile environment inside. The bottom liquid outlet allows for easy release of cleaning liquids, and the cabinet can be fully sealed after cleaning (optional).
The machine operates nearly silent, with multi-layer stacking and high-speed rotation without any abnormal vibration.
▸ Features unique bearing technology, stable start-up, nearly silent operation, and no abnormal vibration even when stacked in multiple layers.
The machine operates quietly and stably with a longer lifespan.
Integrated molding fixture, stable and durable, effectively preventing unsafe incidents caused by fixture breakage.
▸ Clamps are directly cut and shaped from solid stainless steel plates, ensuring stability and durability with no risk of breakage, effectively preventing unsafe incidents such as clamp breakage and bottles being ejected.
▸ The fixed arm of the stainless steel fixture is encapsulated, preventing injury to users and reducing friction with the shaker, resulting in a quieter experience.
❏ Heatless waterproof fan, ensuring uniformity in temperature, CO2 concentration, and humidity
▸ Compared to traditional fans, the heat and waterproof fan can maintain a more uniform and stable temperature inside the cabin, while effectively reducing background heat. Without activating the cooling system, it offers a broader range of cultivation temperatures, allowing for significant energy savings.
Tilt-back brushed chrome aluminum alloy slide-out shelf with a pull-out effect, easily accommodates culture containers
▸ The 8mm thick aluminum alloy tilt plate is lighter and stronger, with a brushed chrome finish that is aesthetically pleasing and easy to clean.
▸ Features a sliding design, allowing for easy placement of culture containers at specific heights and spaces.

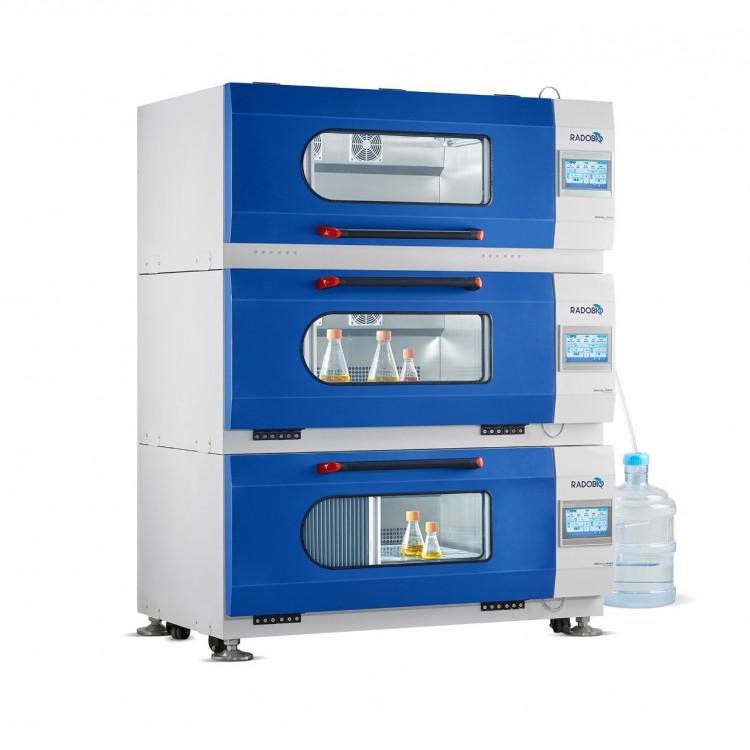

Flexible arrangement, stackable for efficient space saving in laboratories
▸ Suitable for single-layer floor use or countertop use, also available in double or triple stacking. When triple-stacked, the top tray extends only 1.3 meters above the ground, allowing experimenters easy operation.
▸ A system that grows with the task; when the cultivation capacity is no longer sufficient, it can be easily stacked up to 3 layers without additional installation, occupying no more floor space. Each stacked shaking incubator operates independently, offering different cultivation environment conditions.
Triple safety design ensures safety for users and samples.
Optimized PID parameter settings, preventing temperature overshoot during the heating and cooling process.
▸ Fully optimized oscillation system and balancing system, ensuring no unnecessary vibrations during high-speed oscillation
▸ In the event of a power outage, the shaker will remember the user's set parameters and automatically restart according to the original settings upon power restoration, while also automatically prompting the user about the unexpected situation that occurred.
▸ If the cabin door is opened during operation, the rocking bed oscillating plate will automatically and gently stop rotating until it comes to a complete stop. When the cabin door is closed, the rocking bed oscillating plate will automatically and gently start up until it reaches the preset oscillation speed, preventing any unsafe incidents caused by a sudden increase in speed.
▸ When a parameter significantly deviates from the set value, the automatic sound and light alarm system is activated.
▸ Equipped with a data export USB port on the side, allowing for easy export of backup data and convenient, secure data storage.
Product Configuration:
1 unit of main unit (1 layer), 1 fixture oscillating tray, 1 power cord, 2 fuses, 1 paper material bag, 1 bucket
