The ATec M1 High-Precision Stackable Large Capacity Oscillation Incubator (Shaking Incubator) is a high-precision oscillator incubator launched by RunDu Biotechnology in response to the market's high standards and requirements. This product integrates many of the company's product advantages. It offers a perfect solution with high-precision temperature control, active humidity control, and an intelligent touch control system, tailored to the specific requirements of biological culture. The ATec M1 is suitable for insect cell culture and small-volume culture of various special microorganisms.
Product Advantages:
7-inch LCD touch control screen, simple, intuitive, and easy to operate
7-inch touch control panel is intuitive and easy to operate, allowing for easy control of parameter switches and adjustment of parameter values without specialized training.
▸ Multi-segment programs can be set with various parameters such as different temperatures, speeds, concentrations, and times, with automatic and seamless transitions between programs; any parameters or historical data curves of the cultivation process can be viewed at any time.
▸ Perfect appearance, display area shows temperature and speed. With larger numbers and clear symbols on the display, you can observe from a distance. Each function on the buttons is assigned a different color, making operation more convenient.
▸ Settable screen unlock control password provides experimental security for users in public laboratories, preventing accidental operation that could halt ongoing experiments.
▸ Comfortable remote control function, intelligent remote control allows for more convenient parameter control of the incubator

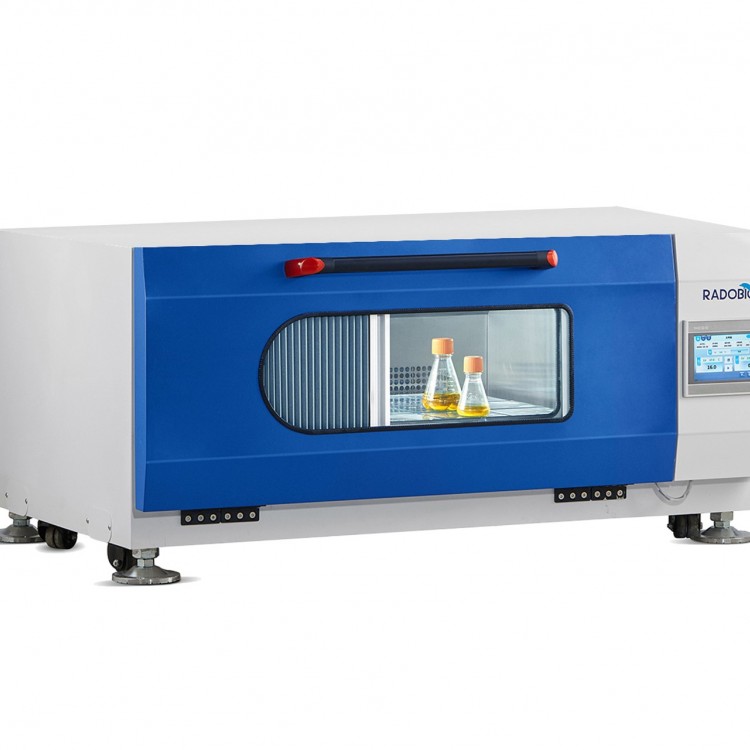

Slide-and-push in-built blackout curtains, easily adjustable for privacy and light control (optional)
▸ For photosensitive media or organisms, cultivation can be conducted by drawing the light-blocking curtain. The sliding light-blocking curtain prevents sunlight (UV radiation) from entering the incubator while maintaining the convenience of observing the internal cultivation conditions.
The blackout curtain is positioned between the glass window and the exterior box panel, offering both convenience and aesthetics, perfectly resolving the awkwardness of pasting foil paper.
Intelligent remote monitoring feature, with remote control operation and real-time viewing of machine operation status (optional)
▸ Intelligent remote control allows for more convenient adjustment of incubator parameters
Double-paned glass door, ensuring excellent thermal insulation and safety.
Double-layer safety glass door with excellent heat-insulating properties
The door heating function effectively prevents the glass door from fogging, allowing for real-time observation of cell culture conditions.
▸ The door heating function effectively prevents condensation on glass windows, allowing for excellent observation of the internal shaker bottles even when there is a significant temperature difference between the inside and outside.
Triple sterilization system, delivering exceptional sterilization results
▸ Multiple UV sterilization units ensure effective sterilization in every corner of the cabin, with UV sterilization units available for use during rest periods. Door operation ensures automatic shutdown of UV lamps when open (optional).
Odorless, environmentally friendly adhesive board material, creating a comfortable working environment

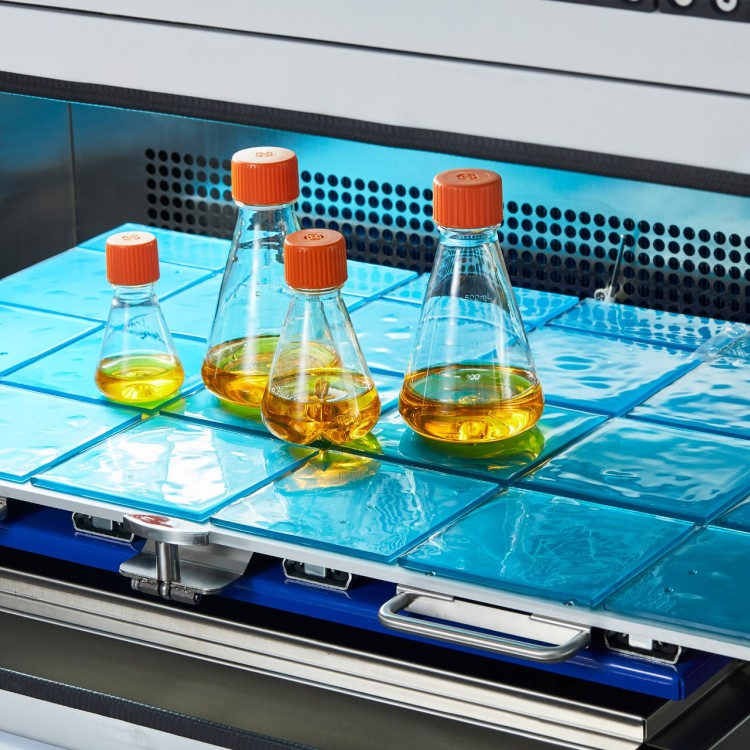

▸ Eco-friendly, odorless adhesive sheets that can be freely combined and adhered based on the size of the摇板. Various sizes of culture bottles can be directly mounted on the adhesive board without the need for clamps, making cleaning easier. User-friendly design enhances space utilization. The adhesive board is suitable for various common UV sterilization methods. When dirt accumulates on the surface of the adhesive sheets after use, they can be removed, washed with water, and reused. Water splashing on the surface of the adhesive board will not affect its adhesiveness, allowing for normal use.
A seamless, all-stainless steel, arc-shaped roundness angle integral cavity, aesthetically pleasing and easy to clean.
▸ Waterproof design for the cabinet, all components sensitive to water or mist, including the drive motor and electronic parts, are all placed outside the cabinet, thus the incubator can be used to cultivate in high temperature and high humidity environments.
▸ Any accidental broken bottles during the cultivation process will not damage the incubator. The bottom of the cabinet can be directly hosed down for cleaning, or thoroughly cleaned with detergents and sterilizers to maintain a sterile environment inside. The bottom liquid outlet can easily release cleaning fluids, and the cabinet can be completely sealed after the cleaning is done.
The machine operates nearly silent, with multi-layered high-speed rotation without any abnormal vibration.
▸ Features unique bearing technology, stable start-up, nearly silent operation, and no abnormal vibration even when stacked in layers.
The machine operates stably with a longer service life.
Integrated molding fixture, stable and durable, effectively preventing unsafe incidents caused by fixture breakage.
The fixtures are directly cut and shaped from solid stainless steel plates, ensuring stability and durability with no risk of breakage. They effectively prevent accidents such as fixture breakage and bottles being shaken out.
▸ The fixed arm of the stainless steel fixture is encapsulated, preventing injury to users and reducing friction with the shaker bottle, providing a quieter experience.
❏ No-heat waterproof fan, significantly reduces background heat, saves energy
▸ Compared to traditional fans, the heat and water-resistant fan can maintain a more uniform and stable cabin temperature, while effectively reducing background heat. Without activating the cooling system, it offers a wider range of cultivation temperatures, thus saving energy consumption.
Sliding brushed chrome plated aluminum alloy shaker plate with push-pull effect, easily accommodates culture containers
▸ The 8mm thick aluminum alloy摇板 is lighter and stronger, with a sleek chrome-plated finish that is both aesthetically pleasing and easy to clean.
▸ Sliding design for easy placement of culture containers at specific heights and spaces
Flexible arrangement, stackable for efficient space saving in the lab

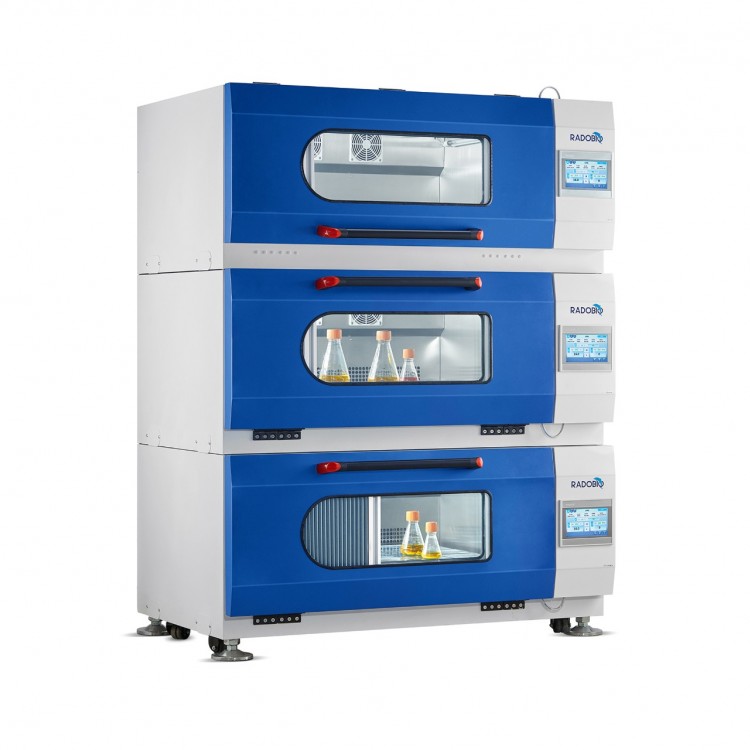

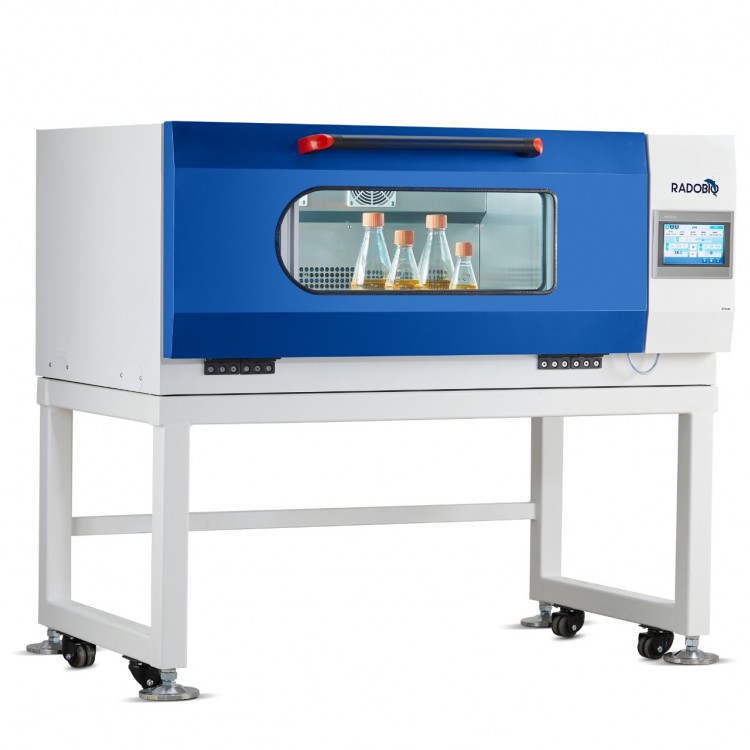

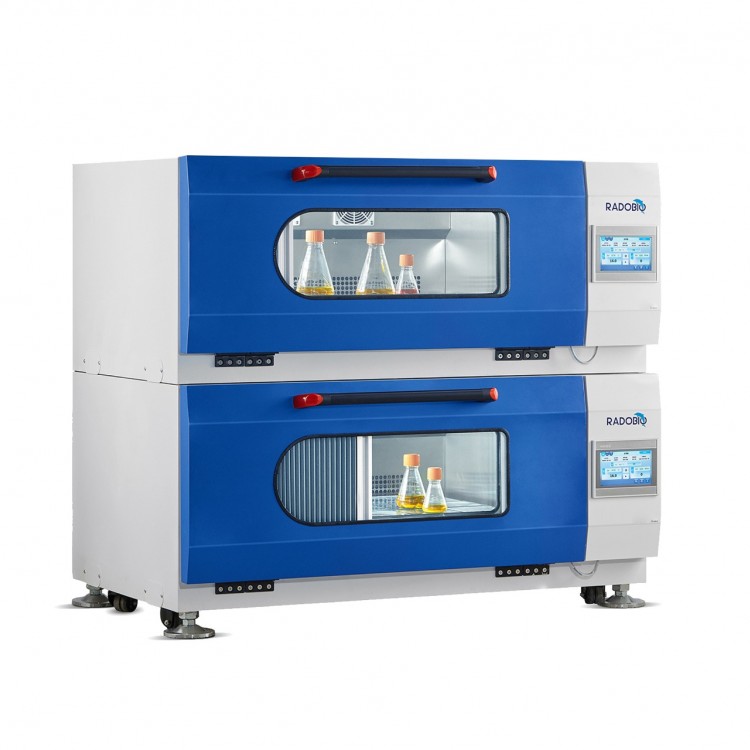

▸ Can be used as a single-layer floor-standing unit or on a countertop, also available in double or triple stacked configurations. In a triple-stack setup, the top tray extends only 1.3 meters above ground, allowing experimenters to operate with ease.
▸ A system that grows with the task, it can easily stack up to 3 layers without additional installation when the cultivation capacity is no longer sufficient. Each stacked oscillating culture chamber operates independently, providing different cultivation conditions.
Multiple safety designs ensure the safety of the operator and the sample.
Optimized PID parameter settings to prevent temperature overshoot during the heating and cooling process
▸ Fully optimized oscillation system and balancing system, ensuring no unnecessary vibrations during high-speed oscillation.
▸ In the event of a power outage, the rocker bed will remember the user's set parameters and automatically restart with the original settings upon power restoration, while also automatically reminding the operator of the incident that occurred.
▸ If the user opens the hatch during operation, the shaker oscillating plate will automatically engage a soft brake until the oscillation stops completely. When closing the hatch, the shaker oscillating plate will automatically initiate a soft start until it reaches the preset oscillation speed, preventing any unsafe incidents caused by a sudden increase in speed.
▸ When a parameter significantly deviates from the set value, an automatic sound and light alarm system is activated.
▸ Equipped with a data export USB port on the side, allowing for easy backup data export and convenient, secure data storage.
