Alliance Testing Equipment - Full Range of Bend Testing Machine Specifications and Models

The bending tester developed by United Labor is primarily used to test the bending properties of materials. Different test materials require different equipment.

Currently, the bending test machines provided by Union Inspection are mainly categorized as:

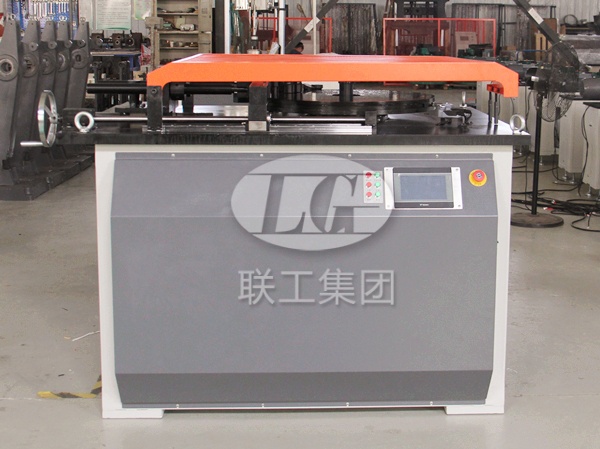

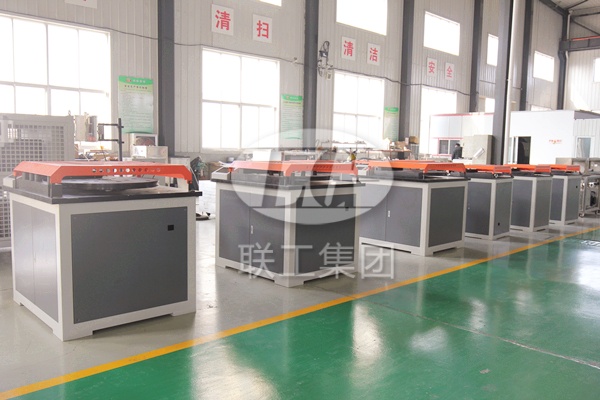

GW-B Series Steel Reinforcement Bending Tester

The bending machine for rebars is a specialized equipment designed for cold bending tests and plane reverse bending tests on rebars. Its main technical parameters comply with GB/T 1499.2 "Reinforced Concrete Steel Tubes – Part 2: Hot-Rolled Ribbed Steel Bars," YB/T 5126 "Scheme for Plane Reverse Bending Test of Rebars," and the provisions and requirements of ISO 10065 regarding cold bending tests and plane reverse bending tests. This equipment is an ideal testing machine for steel mills and construction units to inspect the bending properties of rebars in both directions.

The bending machine for rebars boasts a compact structure, simple operation, intuitive bending angle display, easy maintenance, smooth and safe operation, and low noise.

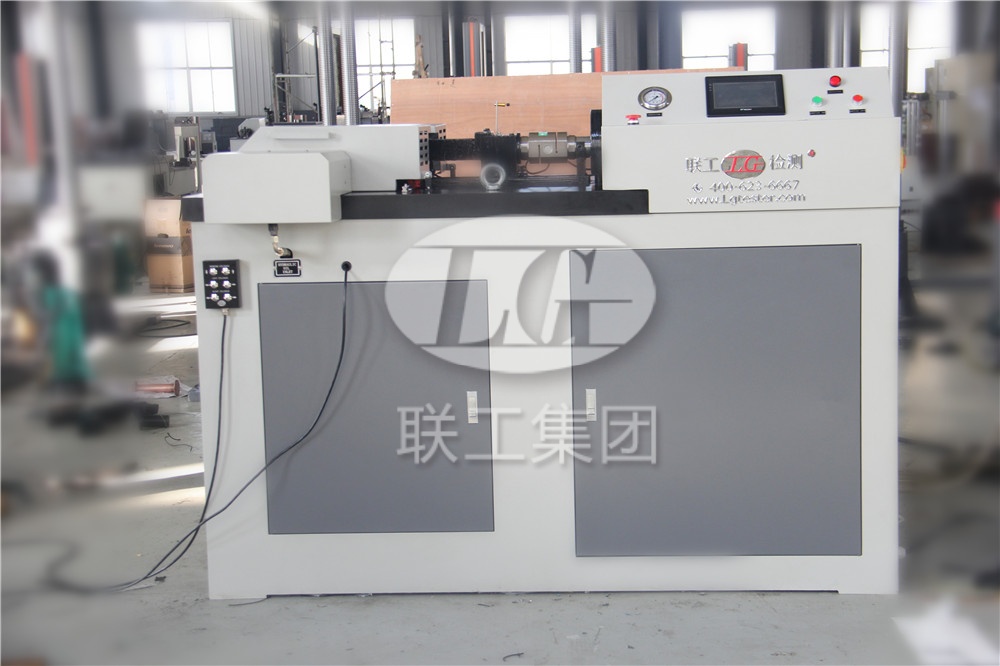

YWFS Series Hydraulic Reverse-Action Integrated Steel Rebar Bending Tester

This product fully meets the requirements of the relevant standards, including "GB 1499.2 Steel for Reinforced Concrete - Part 2: Hot-Rolled Ribbed Bars for Reinforced Concrete," "YB/T 5126 Test Methods for Flexural and Reversal Flexural Tests of Steel for Reinforced Concrete," "GB/T 232 Test Methods for Bend Tests of Metallic Materials," "GB/T 244 Test Methods for Bend Tests of Metals," and "BS 4449 Carbon Steel Rebars for Concrete."

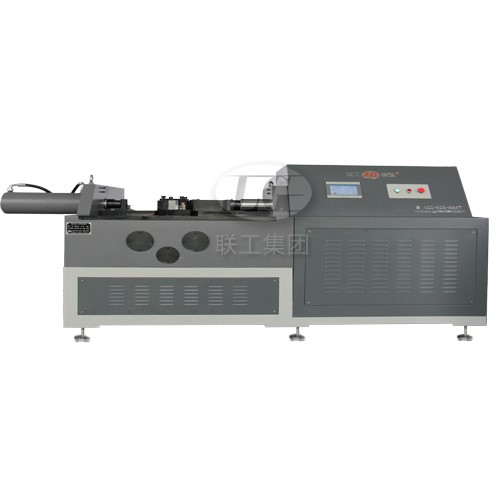

YGBW SeriesHorizontal Steel Bar Bending Test Machine

The horizontal bending testing machine for steel is designed for bending tests of metal bars, pipes, plates, and reinforcing bars for construction, to determine their bending plasticity and bending ability. The testing machine meets the relevant standards such as GB/T 232 "Test Methods for Bend Testing of Metallic Materials", GB/T 244 "Test Methods for Bend Testing of Metal Tubes", GB 13788 "Cold-rolled Ribbed Steel Bars", and JC/T 446 "Concrete Paving Blocks", among others. It is a commonly used equipment for material property inspection and research by metallurgical departments, scientific research institutions, quality inspection departments, and relevant enterprises.

The whole machine adopts a horizontal structure, with the hydraulic station integrated into the main unit. It is mainly composed of support rollers, bending core presses, main cylinder, hydraulic station, base, and electrical control system. The bending press roller is adjusted synchronously through a manual two-way screw to change the support roller's position, thereby adjusting the spacing. When a sample needs to be bent 180°, it can be pre-bent first by the main cylinder pushing the bending core press roller, followed by the motor driving the side pressure plate to bend the sample to 180°. The operation is convenient and efficient.

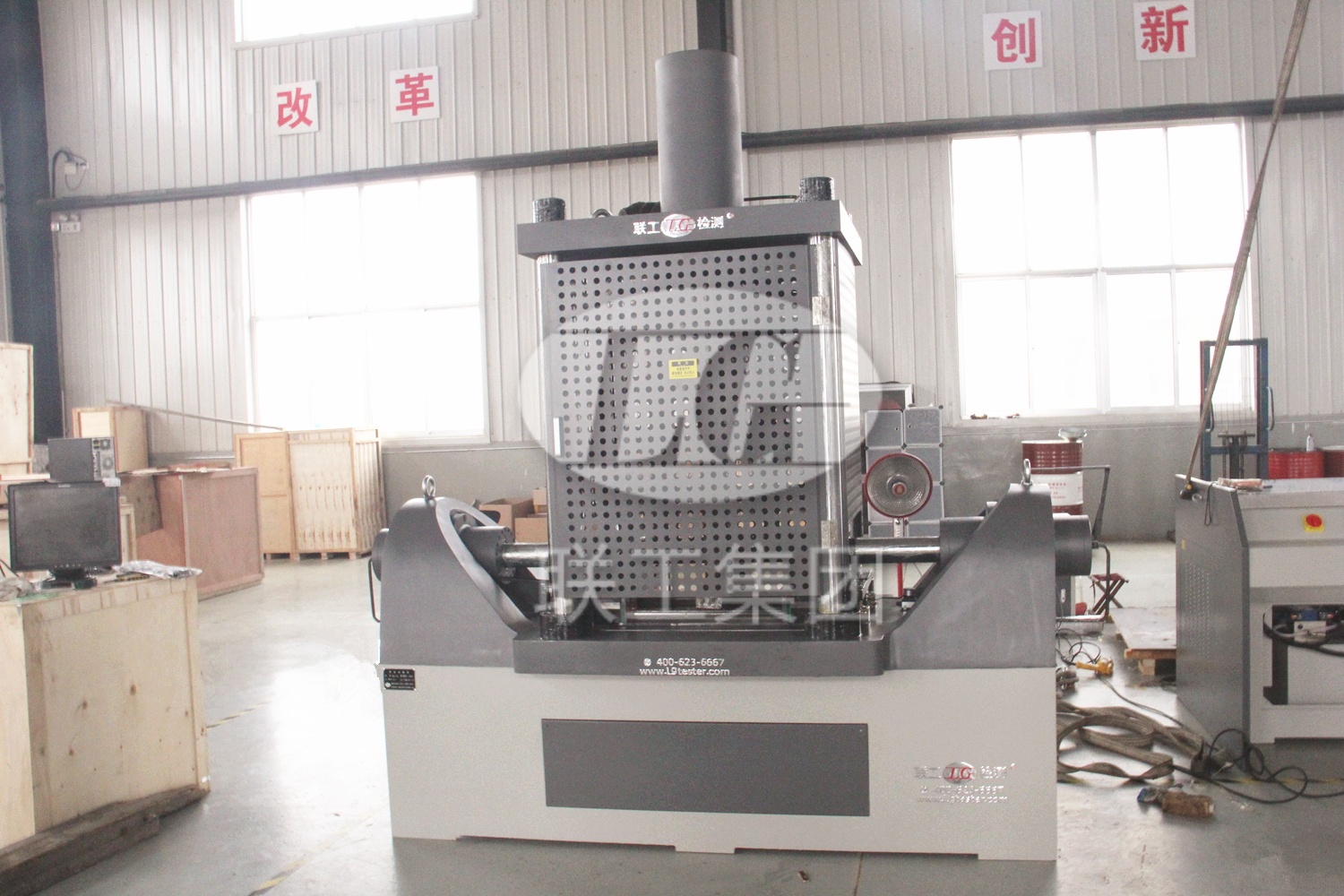

2. GW-G Series Pipe Bending Test Machine

The Pipe Bending Tester is a specialized equipment for conducting process bending tests on steel pipes. Its main technical parameters meet the latest national standard GB/T 232 "Test Methods for Bending of Metal Materials" Article 7.3 requirements for a test speed of (1±0.2) mm/s, allowing for real-time display of displacement corresponding to the bending angle, facilitating users in completing tests for various bending angles. It satisfies the testing requirements of GB/T 244 "Test Methods for Bending of Metal Tubes," GB/T 3091 "Welded Steel Tubes for Low-pressure Fluid Transportation," GB/T 8162 " Seamless Steel Tubes for Structural Purposes," and GB/T 13793 "Straight Seam Welded Steel Tubes."

The vertical three-point bending form of the steel pipe bending tester features stable structure, simple operation, easy replacement of the bend center, intuitive bending angle display, easy maintenance, smooth and safe operation, and low noise.

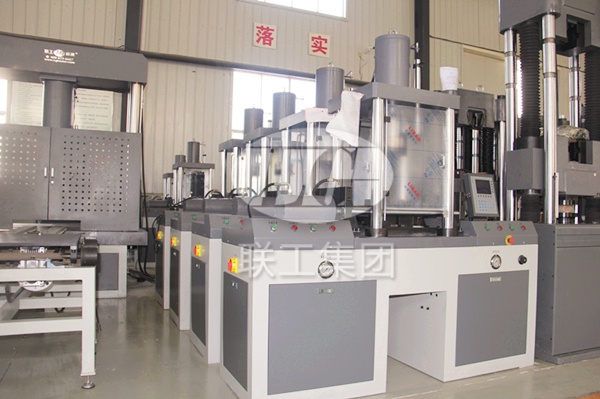

YGBS Series Vertical Three-Cylinder Bend Testing Machine

This machine is developed in accordance with the National Standard GB/T 232 and YB/T 5126. It is capable of bending steel plates and rebars. Its structural performance fully meets the requirements of the test specifications. It features a roller support bending device, with the roller support capable of self-regulation through lateral auxiliary cylinders, easy replacement of the bending center, reliable operation, and convenient operation.

4. YGBW Series Vertical Three-Cylinder Bending Test Machine with Microcomputer Control

This machine primarily conducts three-point bending mechanical property tests on various metal sheets at room temperature. The testing machine integrates mechanical, electrical, hydraulic, and automatic control technologies, featuring mature, advanced, and reliable technology that can reach international advanced levels. The main components have a long service life. The maintenance and repair of the equipment are convenient, and consumable parts can ensure quick replacement.

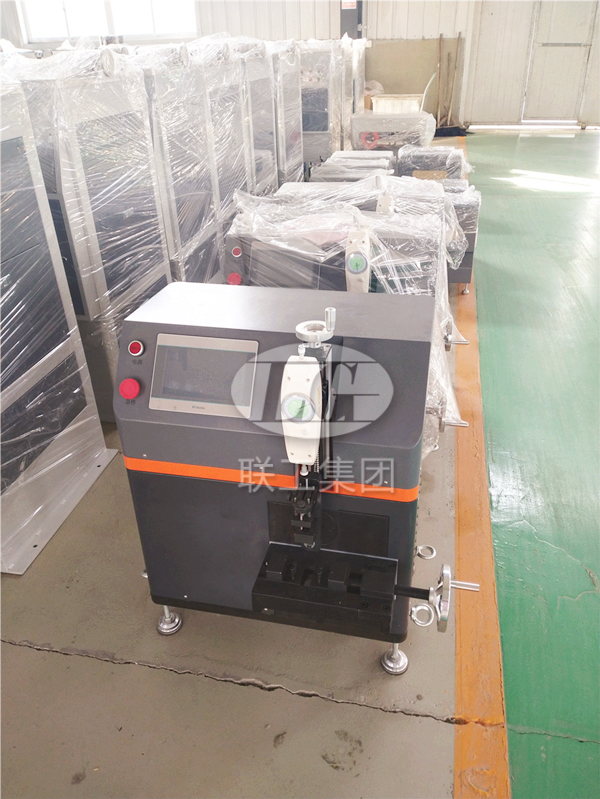

5. JWJ Series Metal Wire/Sheet Repeated Bending Tester

This machine is primarily used for the repetitive bending tests of metal wires and sheets to assess their performance in withstanding plastic deformation during repeated bending and to reveal any defects. It meets the testing standards GB/T 238 "Repetitive Bending Test Method for Metal Wires" and GB/T 235 "Repetitive Bending Test Method for Thin Plates and Thin Bands of Metallic Materials." The machine is widely used by manufacturers in the steel, construction, stainless steel sheet, silicon steel sheet, prestressed steel wire, wire rope, and wire and cable industries.

For specific inquiries, please call 400 623 6667 for details.
