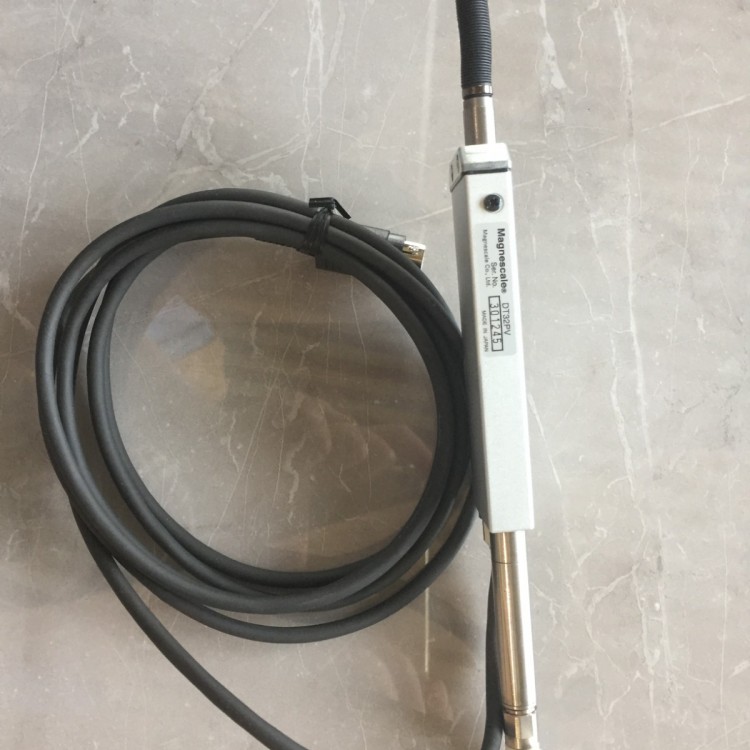

Japan Magnescale Displacement Sensor DT32PV

Good environmental resistance: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control pipe installation and side installation with M4 screws
Oil-resistant, excellent dust-proof performance
We also offer pneumatic extrusion types powered by compressed air for the main shaft (only for 32mm models. 12mm models require optional products).

Main Specifications
1 Quality is the value excluding the cable section 2 The measurement force is the value when the input air pressure is 1.96×10^5 Pa and the speed controller connector is disconnected. *3 The measurement force is the value when the input pressure is 2.35×10^5 Pa and the speed controller connector is disconnected. Changes to the recorded content will not be notified separately.
Model		DT32N	DT32NV	DT32P	DT32PV
Spindle Drive Method		Spring Compression Type	Pneumatic Extrusion Mold	Spring Extrusion	Pneumatic extrusion
Measurement Range		32mm
Resolution		5μm
Measurement Force (at 20℃)	Upward	1.1±0.8N		2.9N or less	9N or lower
	Horizontal	1.3±0.8N		2.9N or less	9N or lower
	Downward	1.5±0.8N		2.9N or less	9N or lower
Accuracy (at 20℃)		10µm p-p
Operating Temperature Range		0 ～ 50℃
Storage Temperature Range		-10 ～ 60℃
Output Cable Length		2m
Central control pipe diameter		φ8 0‒0.015mm
Probe Head		Steel ball φ3mm (M2.5p×0.45 tensioned screw)
Quality *1		Approximately 120g	Approximately 140g	Approximately 120g	Approximately 140g
Protection Grade		―	―	Equivalent to IP64	Comparable to IP64
