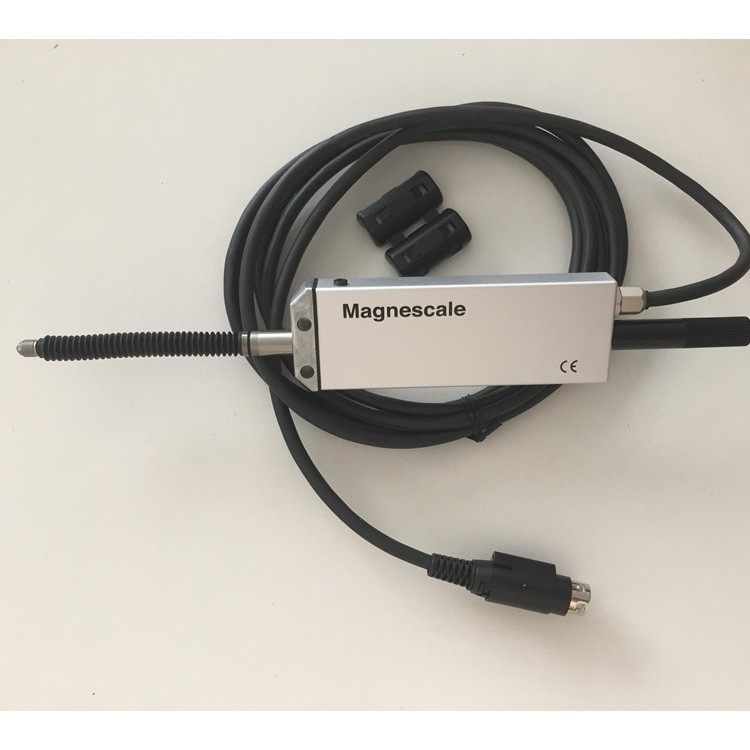

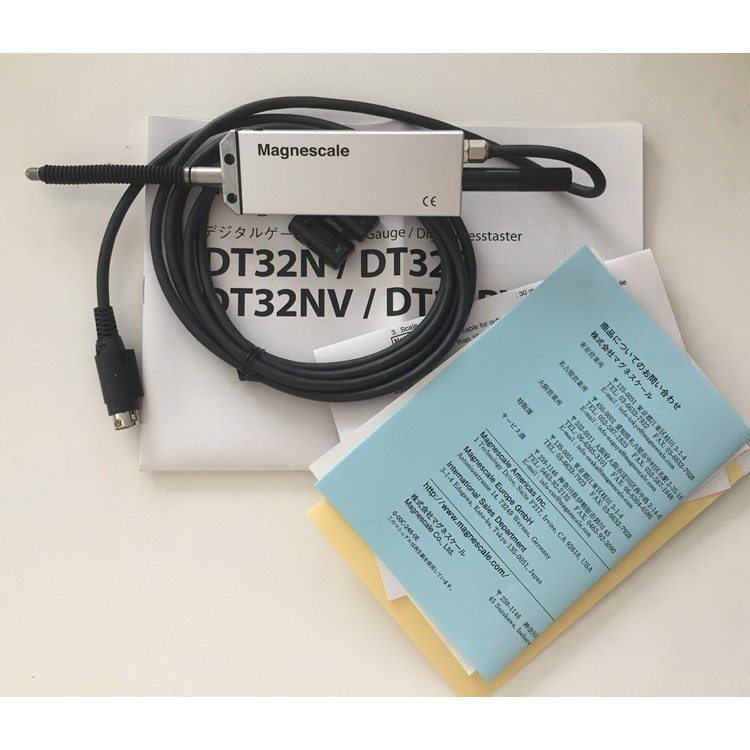

Japanese Magnescale Displacement Sensor DT32P

Good environmental resistance: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control pipe installation and side installation via M4 screws
Oil-resistant and excellent dustproof performance
Available with pneumatic actuation for the main shaft, air-activated extrusion type (only for 32mm models. 12mm models require optional products).

Main Specifications
1 Quality is the value excluding the cable part 2 The measurement force is the value when the input air pressure is 1.96×10^5 Pa and the speed controller connector is disconnected. *3 The measurement force is the value when the input pressure is 2.35×10^5 Pa and the speed controller connector is disconnected. Changes to the recorded content will not be notified separately.
Model		DT32N	DT32NV	DT32P	DT32PV
Spindle drive method		Spring Extrusion Type	Pneumatic Extrusion Mold	Spring Compression Type	Pneumatic extrusion mold
Measurement Range		32mm
Resolution		5μm
Measurement Force (at 20℃)	Upward	1.1±0.8N		2.9N or less	9N or lower
	Lateral	1.3±0.8N		2.9N or less	9N or lower
	Downward	1.5±0.8N		2.9N or less	9N or lower
Accuracy (at 20℃)		10µm p-p
Operating Temperature Range		0 ～ 50℃
Storage Temperature Range		-10 ～ 60℃
Output Cable Length		2m
Central control pipe diameter		φ8 0‒0.015mm
Sensor Head		Steel ball φ3mm (M2.5p×0.45 tensioned screw)
Quality *1		Approx. 120g	Approximately 140g	Approximately 120g	Approx. 140g
Ingress Protection (IP) Rating		―	―	Equivalent to IP64	Equivalent to IP64
