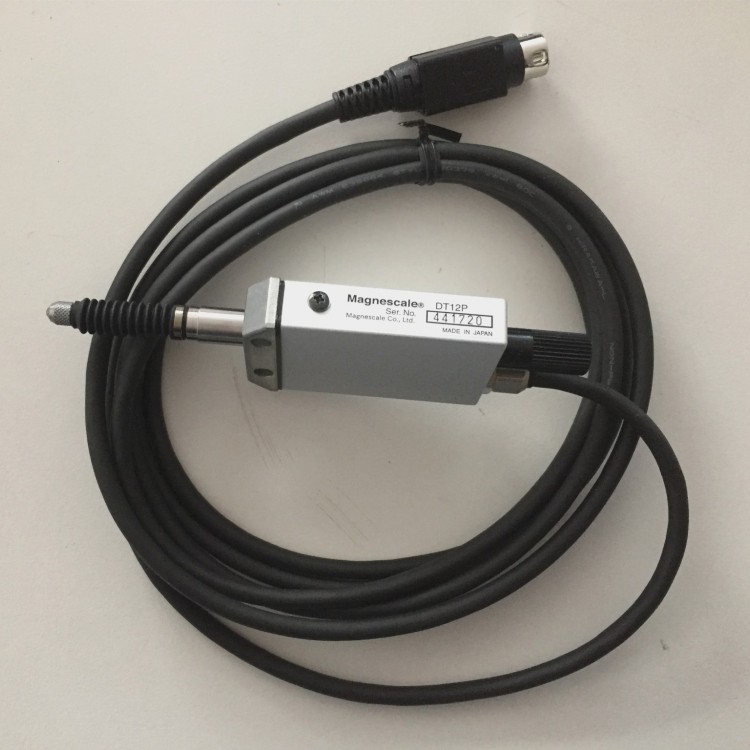

Japanese Magnescale Displacement Sensor DT12P
.jpg)
Good environmental resistance: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control tube installation and side installation via M4 screws
Oil-resistant and dustproof performance
Available with pneumatic actuation for the main shaft, pneumatic extrusion type (only for 32mm models. 12mm models require optional products).
| Main Specifications | |||
|---|---|---|---|
Quality refers to the value excluding the cable part. Changes to the content will be made without prior notice. | |||
| Model | DT12N | DT12P | |
| Spindle drive method | Spring Compression Type (can be pneumatically compressed using Attachment DZ176) | ||
| Measurement Range | 12mm | ||
| Resolution | 5μm | ||
| Measurement Force (at 20℃) | Upward | 0.7±0.5N | 1.7N or lower |
| Horizontal | 0.8±0.5N | 1.7N or less | |
| Downward | 0.9±0.5N | 7N or lower | |
| Accuracy (at 20°C) | 10µm p-p | ||
| Operating Temperature Range | 0 ～ 50℃ | ||
| Storage Temperature Range | -10 ～ 60℃ | ||
| Output Cable Length | 2m | ||
| Central control pipe diameter | φ8 0‒0.015mm | ||
| Sensor Head | Steel ball φ3mm (M2.5p x 0.45 tensioned screw) | ||
| Quality *1 | Approximately 75g | Approximately 80g | |
| Ingress Protection (IP) rating | ― | Equivalent to IP64 | |
