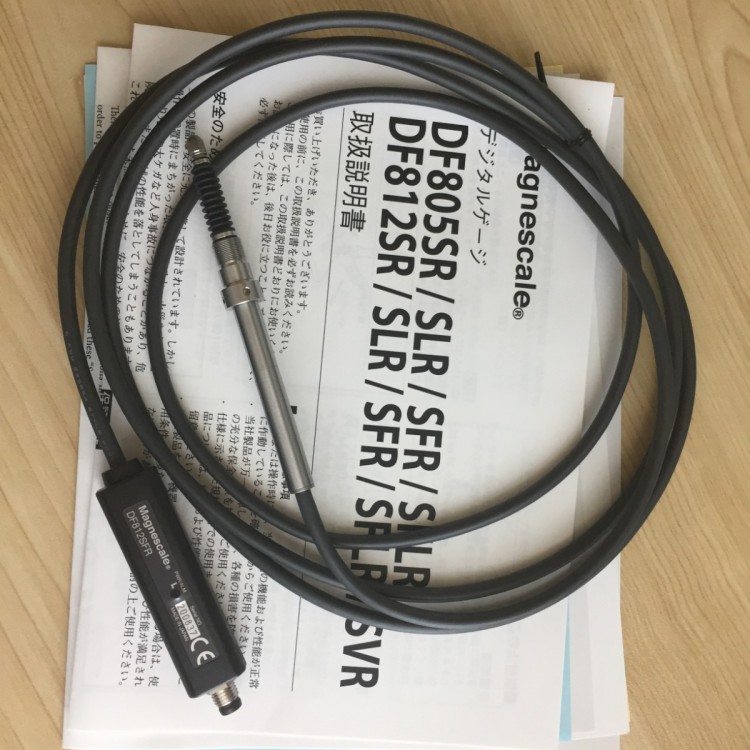

Japan Magnescale Probe Sensor DF805SFR
Measurement Range: 5mm, 12mm, 30mm (Custom Products)
Resolution: 0.1 µm
Accuracy: 1 ~ 1.7 µm p-p (varies by model)
High response speed: 80m/min
Bearings Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
High durability: Up to 320 million cycles or more (testing continues as of January 2021)
Protection Level: Supports IP67 (for right-angle type with air tube installed)
Built-in origin
Available with flanges for secure fixation.
| Main Specifications | ||
|---|---|---|
※1 Not including the internal box and connector parts ※2 Right-angle type with φ4mm tube ※3 Excludes cable parts and inserts Changes to the recorded content will not be announced separately. | ||
| Model | DF805SR，DF805SFR | DF805SLR，DF805SFLR |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | |
| Accuracy (at 20℃) | 1µm p-p | |
| Measurement Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Down: 0.45 ±0.25 N | ||
| Large response speed | 80m/min | |
| Origin Position | Main shaft movement: 1mm ±0.5mm | |
| Original Response Speed | 80m/min | |
| Output | Serial Communication Protocol | |
| Spindle Drive Method | Spring Compression | Spring Compression/Vacuum Suction |
| Protection Level ※1 | Linear: IP67; Right-angle: IP64 (IP67 x 2) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1,000m/s2 (11ms) | |
| Operating Temperature Range | 0 ~ +50℃ (No condensation allowed) | |
| Storage temperature range | -20 to +60℃ (90%RH or lower) | |
| Power Voltage | DC +10 to +30V, including ripple (p-p) 10% | |
| Power Consumption | 12K or less | |
| Quality ※3 | Approximately 30g | |
| Probe cable length | 2m | |
| Output Cable Length | 20' (use the separate CE34 series) | |
| Sensor Head | Spherical ball with super-hard alloy, mounting screw M2.5 | |
| Accessories | Instruction manual, Wrench 1 pc, Elbow pipe 1 pc (only for DF8**S*L**) Tighten nut, crank wrench, O-ring, and installation pin, each 1 piece (only for DF8**S*F**) | |
