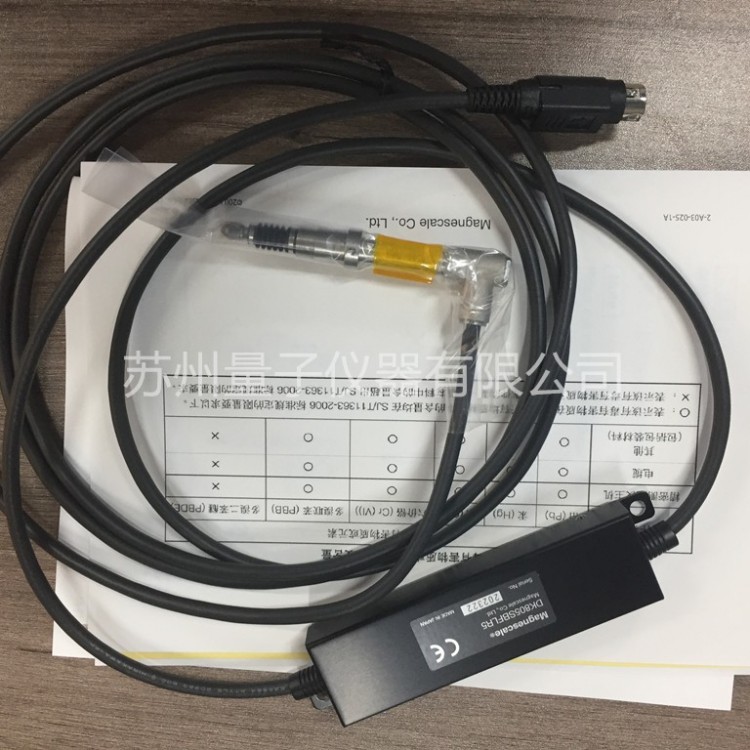

Japanese Magnescale Probe Sensor DK805SBR5
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at 0.1µm resolution, 250m/min at 0.5µm resolution
Ball bearing structure: Utilizes high durability ball spline bearings, enhancing sliding performance
Slide Count: Over 320 million or more (testing still ongoing as of January 2021)
Protection Rating: Supports IP67 (when straight or right-angled and气管is installed)
Built-in origin
Output Signal: A/B phase (pulsed), home position (differential line driver signal with output voltage difference)
Available with flanges for secure attachment.
| Main Specifications | ||
|---|---|---|
※1 The marked items in parentheses are Type B ※2 Excludes the internal box and connector parts ※3 Right-angled and φ4mm tube used ※4 Excludes cable components and insert boxes ※5 The shapes and sizes of certain parts differ from the previous DK800 series models. Changes to the content will be made without prior notice. | ||
| Model | High-resolution model | Standard Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measuring Force (at 20°C) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Down: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 ~ +50℃ (No condensation allowed) | |
| Storage Temperature Range | -20 ~ +60℃ (90%RH or less) | |
| Response Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven via vacuum aspiration (DK805S*LR*) | |
| Origin Response Speed | With the same response speed as mentioned above | |
| Origin Point | Spindle movement ±0.5mm from 1mm | |
| Ingress Protection (IP) Rating ※2 | Linear: IP67; Right-angle: IP64 (IP67 ※3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal for Output Voltage (compliant with EIA-422) | |
| Quality ※4 | Approximately 30g | |
| Sensor Head | Super-hard alloy ball surface, with installation screws M2.5 | Steel ball stud with M2.5 installation screw |
| Output Cable Length | 2.5m | |
| Accessories | 1 instruction manual, +2 PM4x5 screws, set screw, wrench, spring washer 1 each installation pin (only for DK8**S*F**), 1 each soft tube elbow (only for DK8**S*L**), 1 each wrench | |
