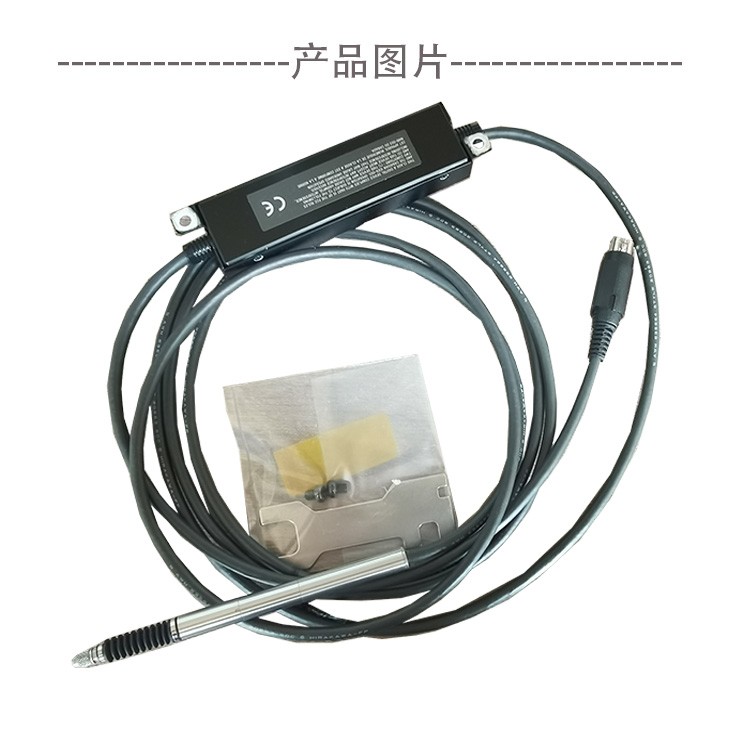

Japan Magnescale Caliper Sensor DK805SAFR5
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at 0.1µm resolution, 250m/min at 0.5µm resolution
Bearing Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
Slide Count: Over 320 million or more (testing continues as of January 2021)
Protection Level: Supports IP67 (linear/90-degree, with气管 installed)
Built-in origin
Output Signal: A/B phase (pulsed), home position (differential line driver signal with output voltage difference)
We also offer flanged types that can be securely fastened.
| Main Specifications | ||
|---|---|---|
※1 The marked items are type B. ※2 Excludes the internal box and connector parts ※3 Right-angled and φ4mm tube used ※4 Excludes cable parts and internal sockets ※5 The shapes and dimensions of certain parts differ from previous DK800 series models. Changes to the content will be made without prior notice. | ||
| Model | High-resolution model | Universal Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measurement Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Down: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 to +50℃ (No condensation) | |
| Storage Temperature Range | -20 to +60℃ (90%RH or less) | |
| Responsive Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven via vacuum suction (DK805S*LR*) | |
| Origin Response Speed | With the same response speed as mentioned above | |
| Origin Position | Spindle movement: 1mm ±0.5mm | |
| Protection Grade ※2 | Linear: IP67; Right-angled: IP64 (IP67 x 3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal (Compliant with EIA-422) | |
| Quality ※4 | Approximately 30g | |
| Measurement Head | Ball bearing with super-hard alloy spherical, installed with M2.5 screws | Steel rod ball surface, installed with M2.5 screws |
| Output Cable Length | 2.5m | |

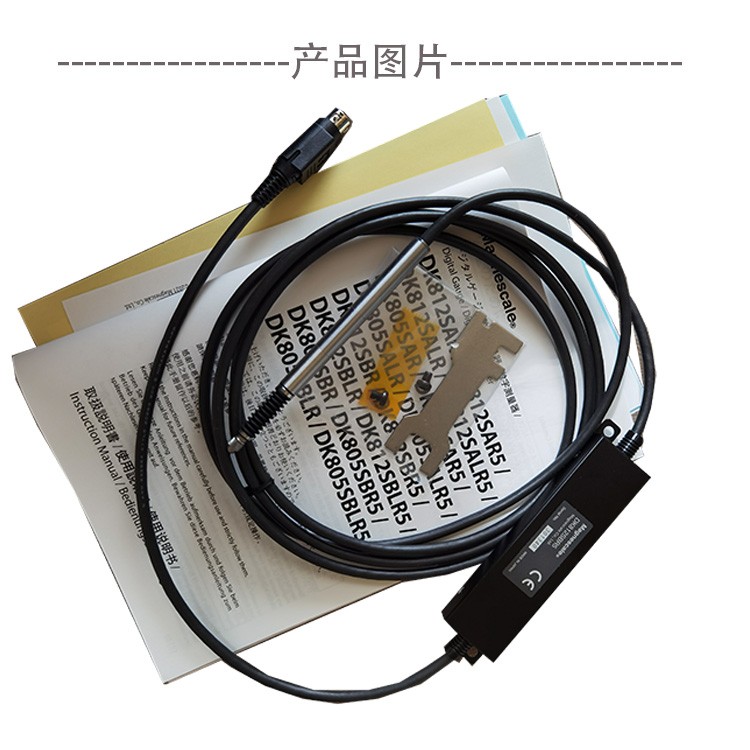

| Accessories | 1 user manual, + 2 PM4×5 screws, set screw, wrench, wave washer 1 each installation pin (only for DK8**S*F**), 1 each hose elbow (only for DK8**S*L**), 1 each wrench | |
