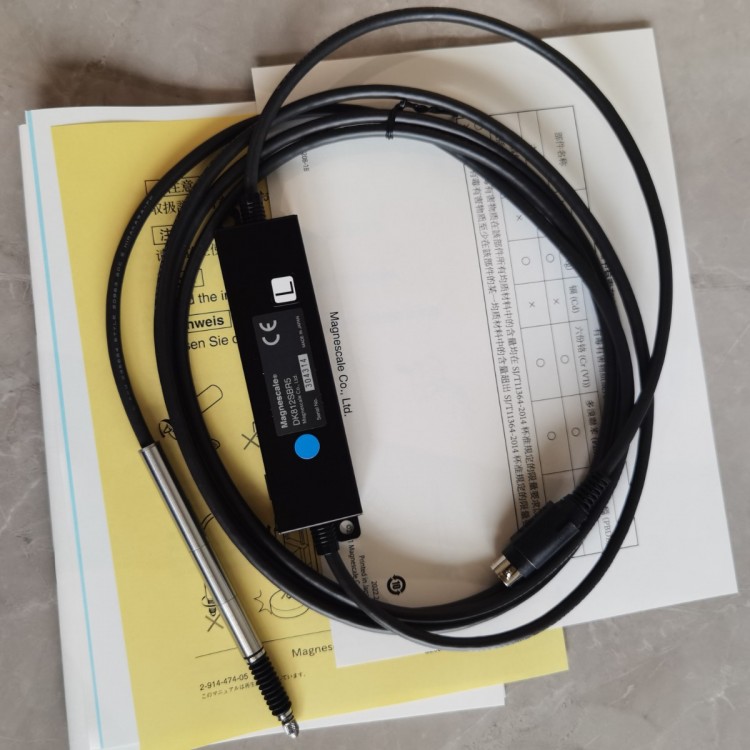

Japanese Magnescale Probe Sensor DK805SALR
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at a resolution of 0.1µm, 250m/min at a resolution of 0.5µm
Bearing Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
Slide Count: Over 320 million or more (Testing continues as of January 2021)
Protection Level: Supports IP67 (linear/90-degree, when气管 is installed)
Built-in origin
Output Signal: A/B phase (pulsed), origin (differential line driver signal with output voltage difference)
Available with flanges for secure fastening.
| Key Specifications | ||
|---|---|---|
※1 The items marked with () are type B ※2 Excludes the internal box and connector parts ※3 Right-angle type when using φ4mm tube ※4 Excludes cable parts and internal sockets ※5 The shapes and sizes of some parts differ from the previous DK800 series models. Changes to the recorded content will not be notified separately. | ||
| Model | High-resolution model | Universal Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measuring Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Down: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 ~ +50℃ (No condensation allowed) | |
| Storage temperature range | -20 to +60℃ (90%RH or less) | |
| Responsive Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven via vacuum suction (DK805S*LR*) | |
| Origin Response Speed | With the same response speed as above | |
| Origin Position | Spindle movement of 1mm ±0.5mm | |
| Ingress Protection (IP) Rating ※2 | Linear: IP67; Right-angle: IP64 (IP67 x 3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal (Compliant with EIA-422) | |
| Quality ※4 | Approx. 30g | |
| Measurement Head | Ball with super-hard alloy spherical surface, installation screw M2.5 | Bearing steel ball surface, with M2.5 installation screws |
| Output Cable Length | 2.5m | |
| Accessories | 1 user manual, + 2 PM4×5 screws, set screw, wrench, wave washer 1 each Installation Pin (only for DK8**S*F**), 1 each Hose Elbow (only for DK8**S*L**), 1 each Wrench | |
