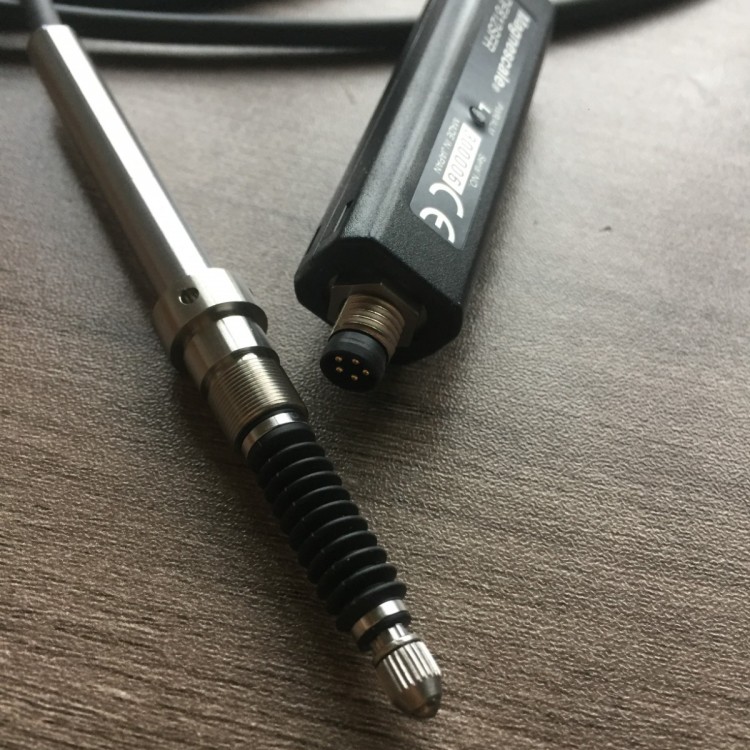

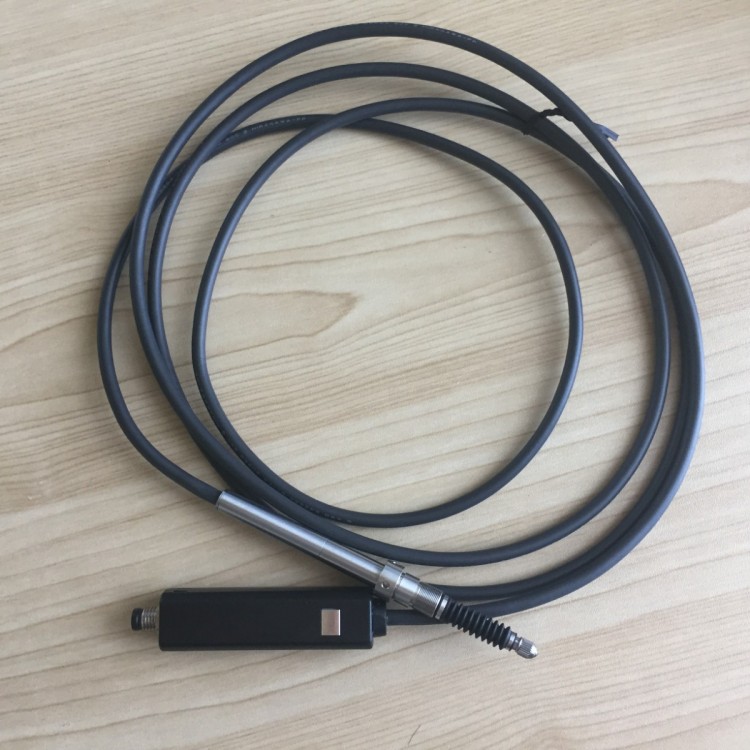

Japan Magnescale Protractor Sensor DF830SVR
Measurement Range: 5mm, 12mm, 30mm (Custom Products)
Resolution: 0.1 µm
Accuracy: 1 ~ 1.7 µm p-p (varies by model)
High response speed: 80m/min
Bearing Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
High durability: Up to 320 million slides or more (Testing still ongoing as of January 2021)
Protection Level: Supports IP67 (for right-angled models with installed air hose)
Built-in Origin
We also offer flange types that can be securely fastened.
| Key SpecificationsCustomized Products | ||
|---|---|---|
※1 Does not include the inner box and connector parts ※2 Excludes cable parts and insert boxes Output cables should be purchased separately, model CE34 (Maximum cable length: 20m). Changes to the content will be made without prior notice. | ||
| Model | DF830SLR | DF830SVR |
| Measurement Range | 30mm | |
| Resolution | 0.1µm | |
| Accuracy (at 20℃) | 1.3µm p-p | 1.7µm p-p |
| Measuring Force (at 20°C) | Up: 0.5 ± 0.35 N Horizontal: 0.6 ± 0.35 N Down: 0.7 ± 0.35 N | Pressure at 0.07 MPa: 1.9N or less in all directions At 0.09 Mpa, all directions 2.6N or less |
| Response Speed | 80m/min | |
| Origin Position | Spindle movement of 1mm ±0.5mm | |
| Original Point Response Speed | 80m/min | |
| Output | Serial Communication Protocol | |
| Ingress Protection Rating ※1 | IP53 When using DZ830BL, it is IP67-rated. | IP53 Use DZ830BV with IP67 rating |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Operating Temperature Range | 0 ~ +50℃ (No condensation allowed) | |
| Storage Temperature Range | -20 to +60℃ (90%RH or less) | |
| Power Voltage | DC +10 ～ +30 V | |
| Power Consumption | 12,000 or less | |
| Quality ※2 | Approx. 80g | |
| Cable Length | 2m | |
| Probe | Super-hard alloy ball with M2.5 installation screw | |
| Accessories | Instruction Manual, Wrench 1 pc | |
