Product Introduction

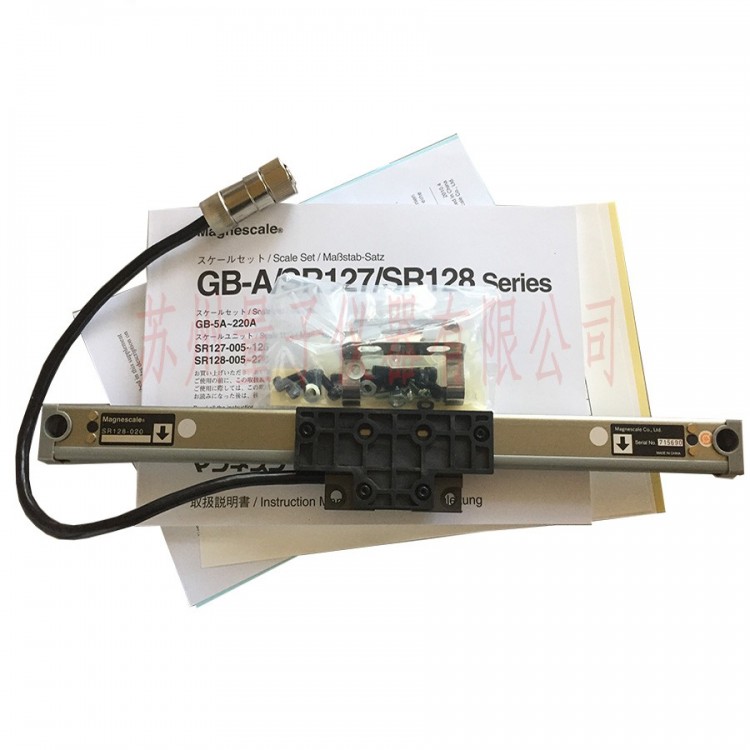

Magnescale Scale Tape SR128 | Scale Tape

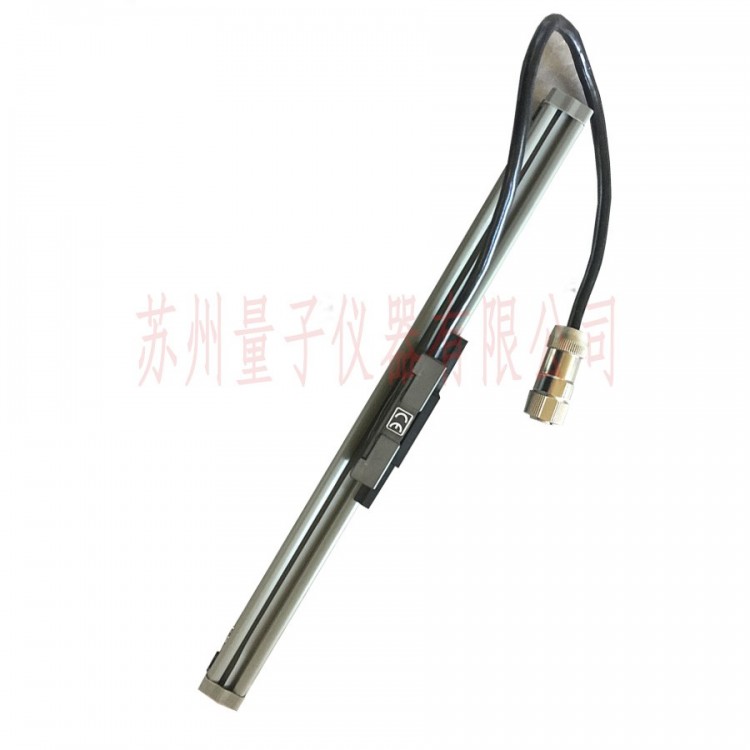

Magnetic Scale SR128 Series: Used in chip-cutting machinery or applications requiring positioning. Oil-resistant, vibration-resistant, pollution-resistant, and durable; simple structure, long service life, and the same thermal expansion coefficient as metal; GB series magnescale, compact in design, cross-sectional dimensions of 25x21mm.

Product characteristics:

Oil and dust resistance, vibration resistance, and environmental adaptability.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long-lasting use, and the same coefficient of thermal expansion as metal.

Linear Ruler
Lengths available: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (Length below 200mm)
Length + 120mm (over 200mm)
Maximum Length: Plus 14mm (with length below 200mm, each side plus 7mm)
Length +30mm (Length below 250mm, 15mm on each side)
Direct linearity scale (20℃): ±5μm (SR128 series)
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical.
4. Height Position
Oil and dirt resistant

Product Specifications:

Product Model:
