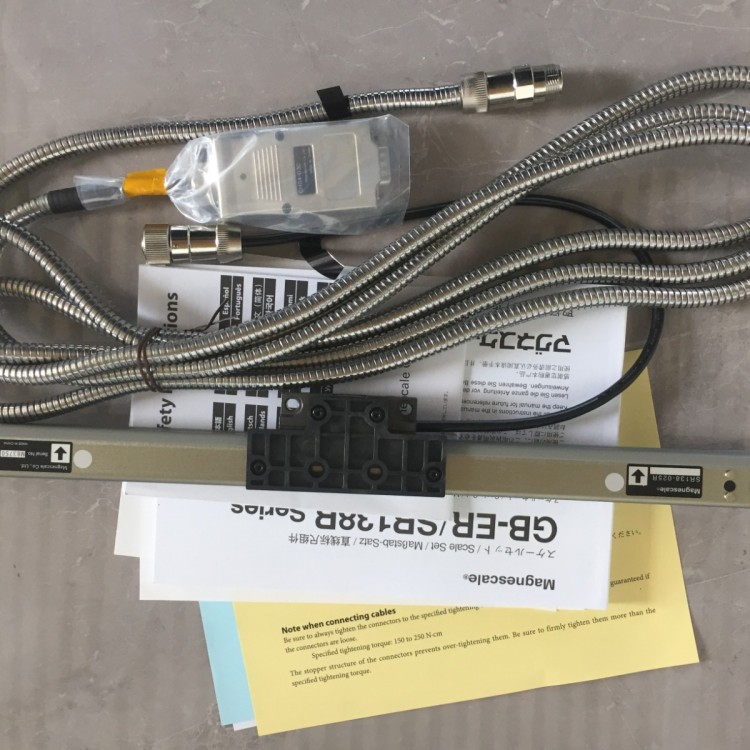

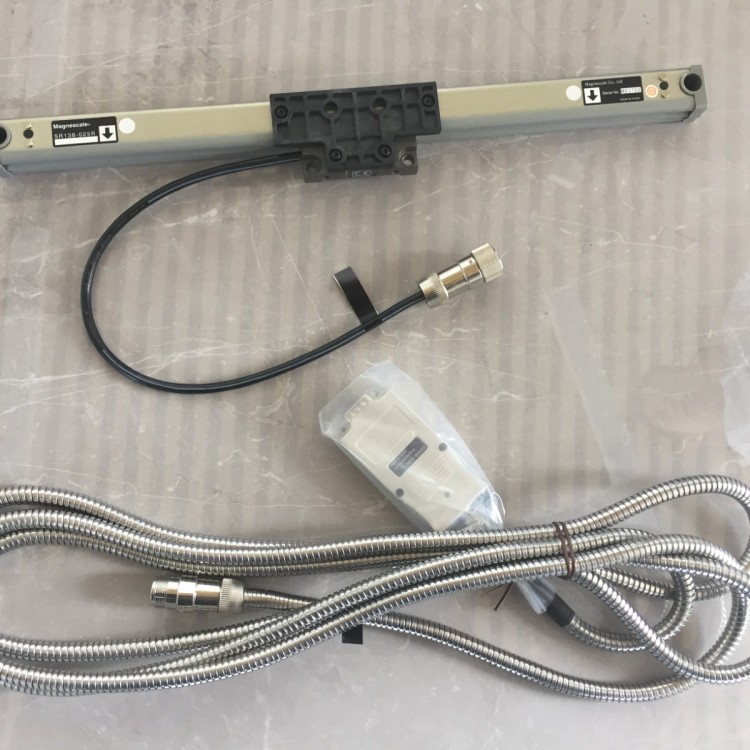

Japanese Magnescale Magnetic Scale GB-220ER
Built-in origin
Oil-resistant, dirt-resistant, vibration-resistant, and with excellent environmental resistance, thanks to the magnetic detection method.
Compact and space-saving
Accuracy: (5 + 5L/1000) µm (L is the measurement range)
Resolution: 0.5 µm
Simple structure, long lifespan
| Main Specifications | ||
|---|---|---|
Changes to the recorded content will not be announced separately. | ||
| Model | GB-ER(SR138R) | |
| Measurement Range (L:mm) | 50，100，150，200，250，300，350，400，450，500，550，600， 650，750，850，950，1050，1250，1400，1600，1850，2050，2200 | |
| Ruler length | Total Ruler Length (mm) | L+104mm (50 ～ 200 mm)，L+120mm (250 ～ 2200 mm) |
| Adjustable Length (mm) | L+14mm (50 ～ 200 mm)，L+30mm (250 ～ 2200 mm) | |
| Is there an intermediate sole? | N/A (50 ~ 950 mm), Available (1050 ~ 2200 mm) | |
| Pilot hole spacing | L+91mm (50 ～ 200 mm)，L+107mm (250 ～ 2200 mm) | |
| Ruler accuracy (at 20℃) | (5+5L/1000)μm | |
| Origin | Standard: Central point or any point (synchronized with A/B by pulse) | |
| Installation Allowance | ±0.1mm | |
| Temperature coefficient | (11±1)×10-6/℃ | |
| Operating Temperature Range | 0 ～ 40℃ | |
| Storage Temperature Range | -20 ～ 50℃ | |
| Sensor Cable Length | 0.3m | |
| Cable Length | 3m | |
| Ingress Protection (IP) rating | Ruler section: Equivalent to IP65, Interface component section: Equivalent to IP30 | |
| Input/Output Signals | Output Signal | A/B/Z Phase |
| Power Supply | DC +5V ± 5% | |
| Connector | D-sub 9-pin | |
| Resolution | 0.5μm | |
| Response Speed | Ruler Signal | 60m/min |
| Origin Signal | 60m/min | |
| Consumption Current | 200mA | |
