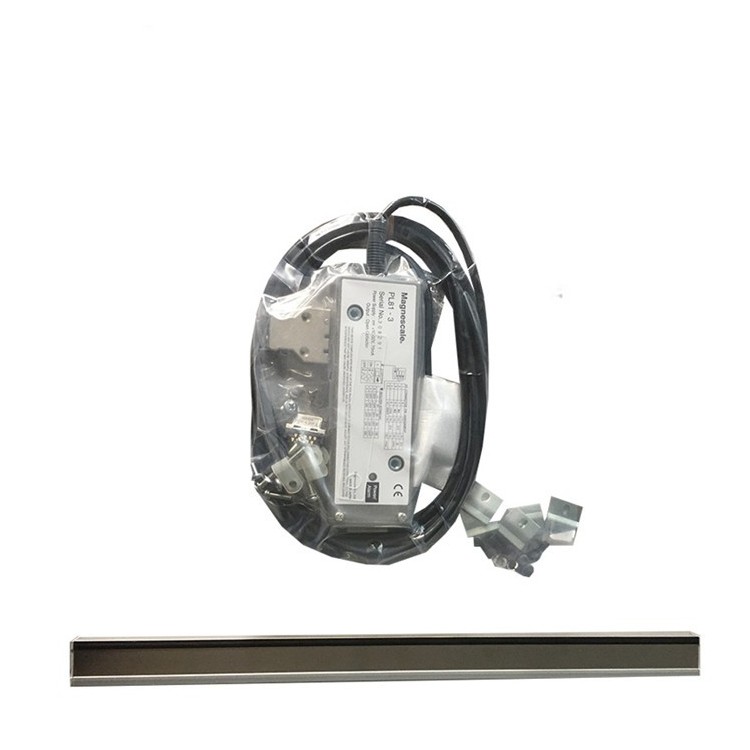

Magnetic detection method
Good environmental resistance, oil-resistant, dust-proof, shock and vibration-resistant
Resolution: 10 µm
Up to 2 meters in length

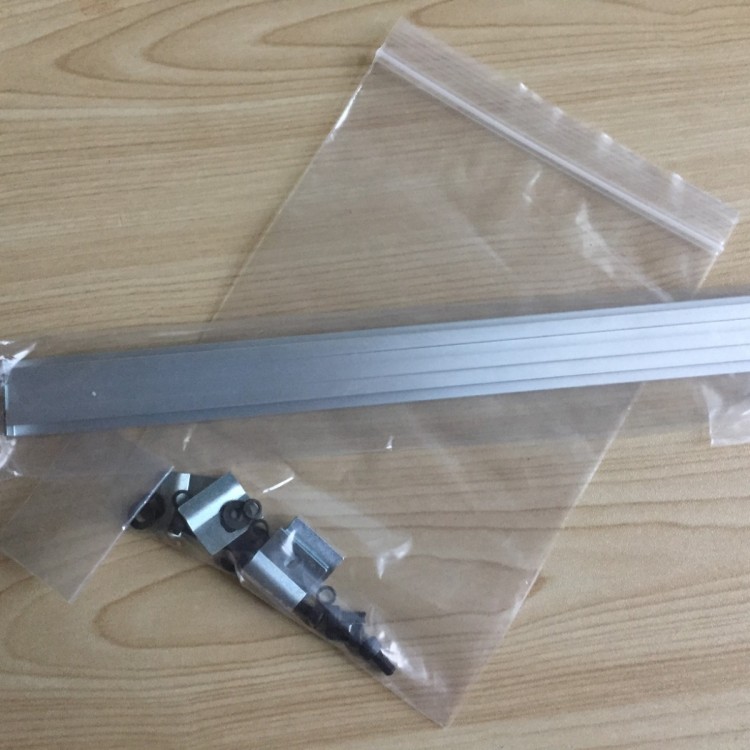

The ruler has a small size and a simple structure, making it easy to install.
From wood and stone processing machines to metalworking machinery, large-scale machinery
Main Application: Wood and Stone Processing Machines
High-Speed Response: 300m/minWith PL20CAssembled (when applicable)
| Main Specifications | ||
|---|---|---|
*1 Accuracy value when combined with the PL20C/PL25 head cable, and the PL81/82 head cable with an internal connector box Changes to the recorded content will not be announced separately. | ||
| Model | SL110 | |
| Measurement Range (L) | 200，300，400，500，600，700，800，1000，1200，1500，1600，1700，1800，2000 mm | |
| Full Length | Measurement Range: +103mm | |
| Accuracy (at 20℃)*1 | (50+10L/1000) µm Range: L (mm) | |
| Permission for parallelism installation | Grating face direction | Under 0.8mm / Full Length |
| Ruler side direction | 1.0mm and under / full length | |
| Coefficient of Linear Thermal Expansion | (10.4±1)×10-6/℃ | |
| Operating Temperature Range | -5 ～ +45°C | |
| Storage Temperature Range | -10 ～ +50°C | |
| Applicable Reader Cable | PL20C / PL25 | |
| Cable with compatible plug-in box (sold separately) | PL81 / PL82 / PL25 / PL20C (for connecting monitors) | |
