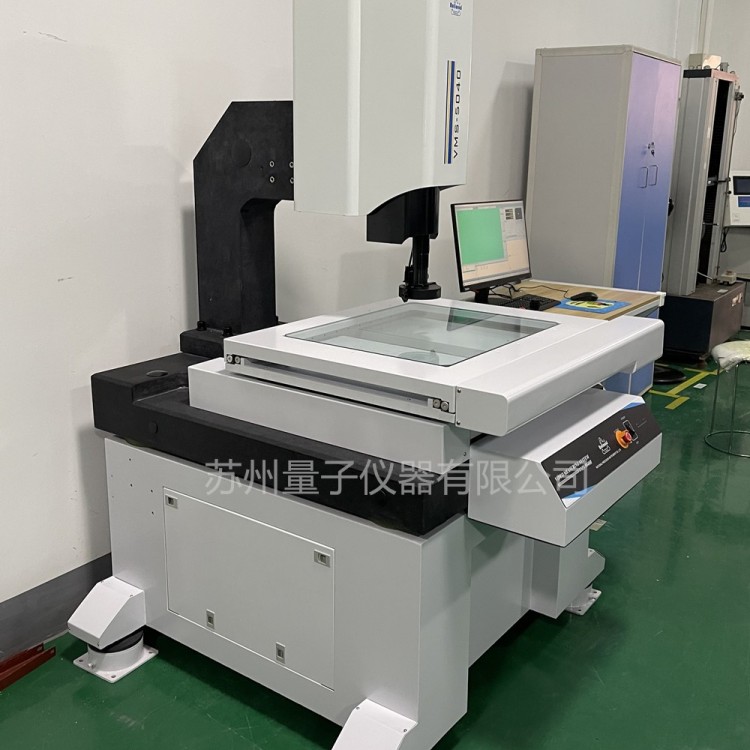

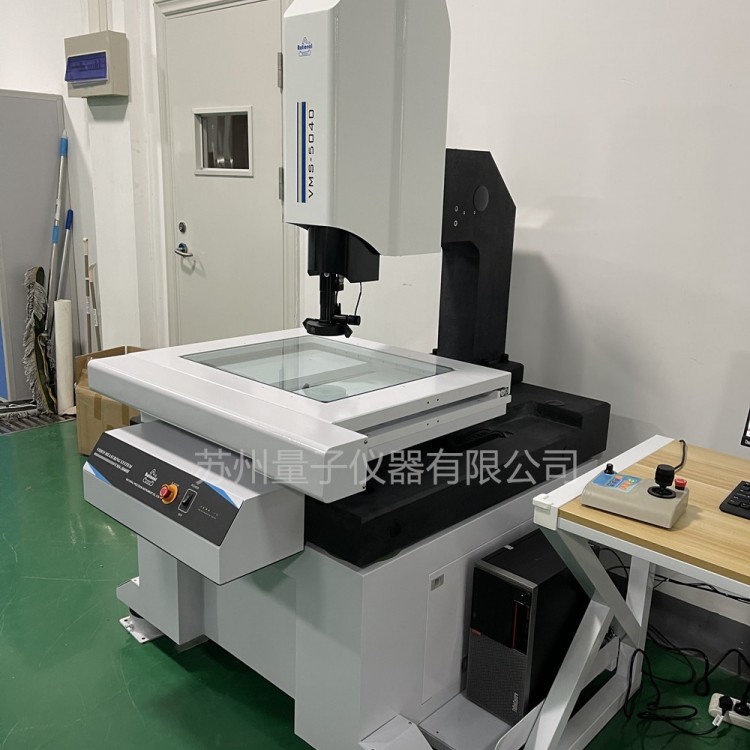

Wan Hao Automatic Image仪 VMS-5040H Visual Measurement System
Features:
Integrated human-machine engineering design for the whole machine, easy to operate and measure.
2. Features rapid automatic focusing, edge detection, and measurement capabilities, significantly enhancing inspection efficiency.
3. Optional automatic zoom function, no pixel calibration required for measurements at multiple magnifications
4. Independently developed QMS 3D software, capable of meeting various measurement requirements of customers.
5. Employed sub-pixel segmentation technology to enhance edge resolution capability.
6. Configurable handle, also programmable via software
7. SPC Data Processing and Analysis, Large-scale Fixture Measurement
8. Three-axis servo control with high positioning accuracy, speed, and stable operation
9. Utilizing our self-developed embedded module control system, the complex control system is integrated internally within the instrument, resulting in higher stability.
10. Programmed constant current drive eight-zone surface cold light source, adaptable to complex workpiece measurements
11. Locate the specific position of the measured workpiece with a laser pointer for quick and convenient positioning.
Technical specifications:
| Parameters/Model Type | VMS-5040H | |
| Workbench | Metal Table Dimensions (mm) | 786×636 |
| Glass Table Dimensions (mm) | 570×470 | |
| Exercise Stroke (mm) | 470×370 | |
X, Y, Z axis digital resolution | 0.5μm | |
Indicating Error | E1XY=(2.5＋L/100)μm | |
Imaging System | Camera: 1/2" Color CCD Camera | |
0.7~4.5x zoom lens, total video magnification of 20~128x (on a 21.5" monitor) | ||
Field of View: 11.1mm to 1.7mm | ||
Power: AC 220V 50/60Hz; Power Consumption: 400W (not including computer) | ||
Instrument dimensions (L×W×H) | 1200×1270×1870 | |
| Z-axis travel (mm) | 200 (Orderable up to 400mm) | |
Instrument Weight (Kg) | 850 | |
