Operating Principle

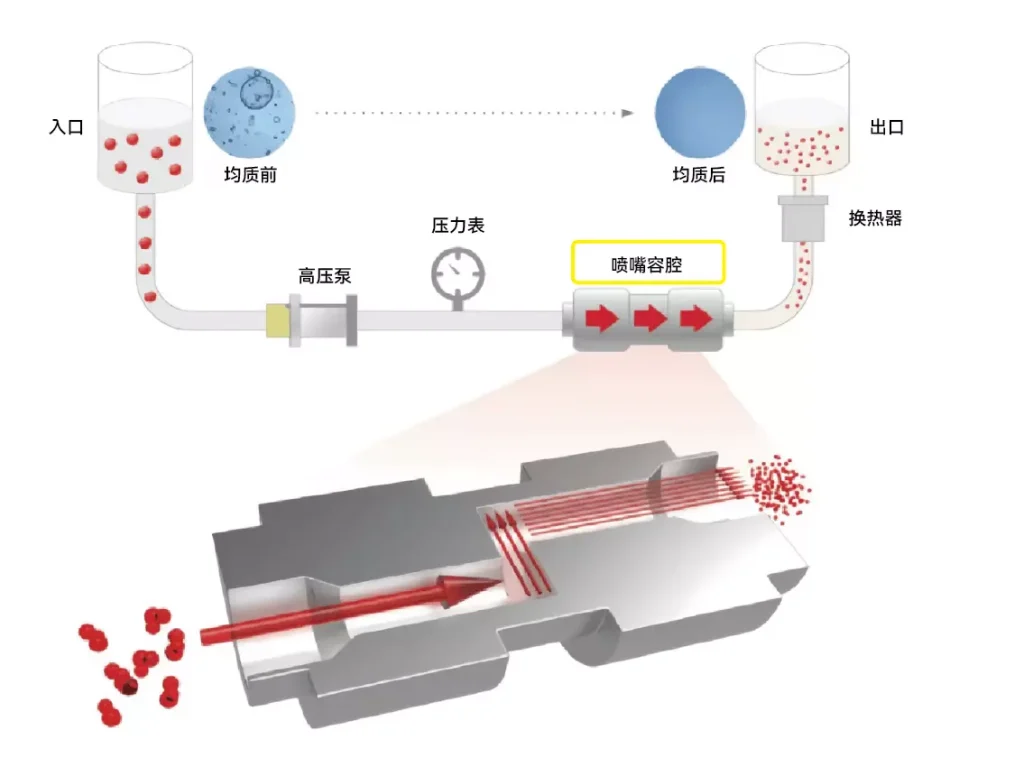

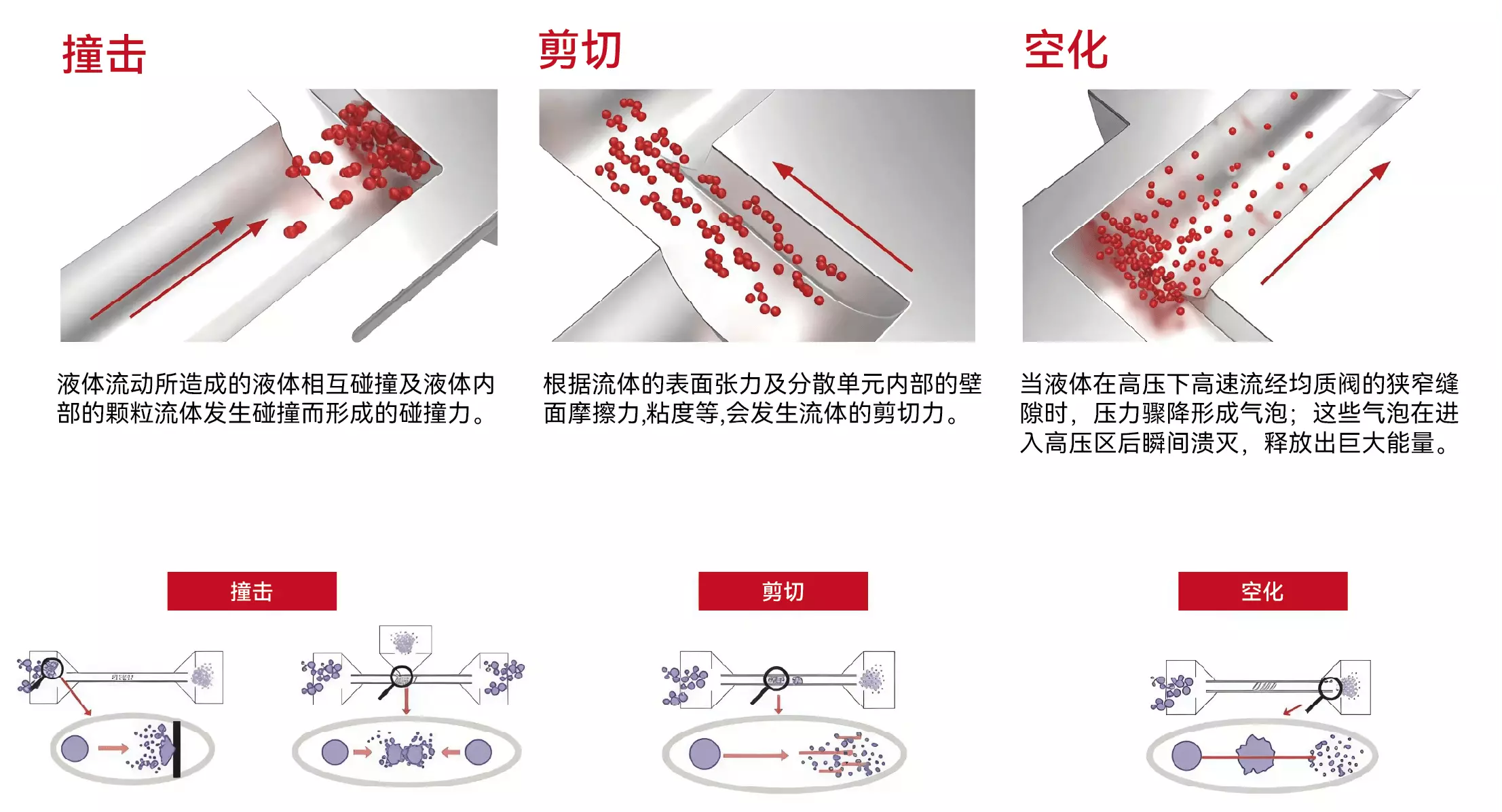

Under the reciprocating motion of the plunger, the material is delivered to a fixed gap cavity, where, under extreme compression, it rapidly collides through a throttling slit, generating cavity effect, impact effect, and shearing effect, thereby achieving homogenization, emulsification, comminution, and dispersion of the material.

Product Features

Hyper-high voltage empowerment · Nano-precise regulation

Extremely narrow particle size distribution

Excellent reproducibility

Supersonic Micro Jet (pressure up to 30,000 psi)

Full-process parameters are controllable (pressure, temperature, cycle count)

Reliable, durable, and long-lasting

The full range meets all needs from laboratory research and development to pilot production.

Preparation of advanced materials such as Lipid Nanoparticles (LNP), nanoemulsions, battery conductive pastes, carbon nanotubes, etc., breaking through the limitations of traditional grinding equipment with low efficiency and high pollution risk, and facilitating the development of new energy materials and complex injectable formulations.

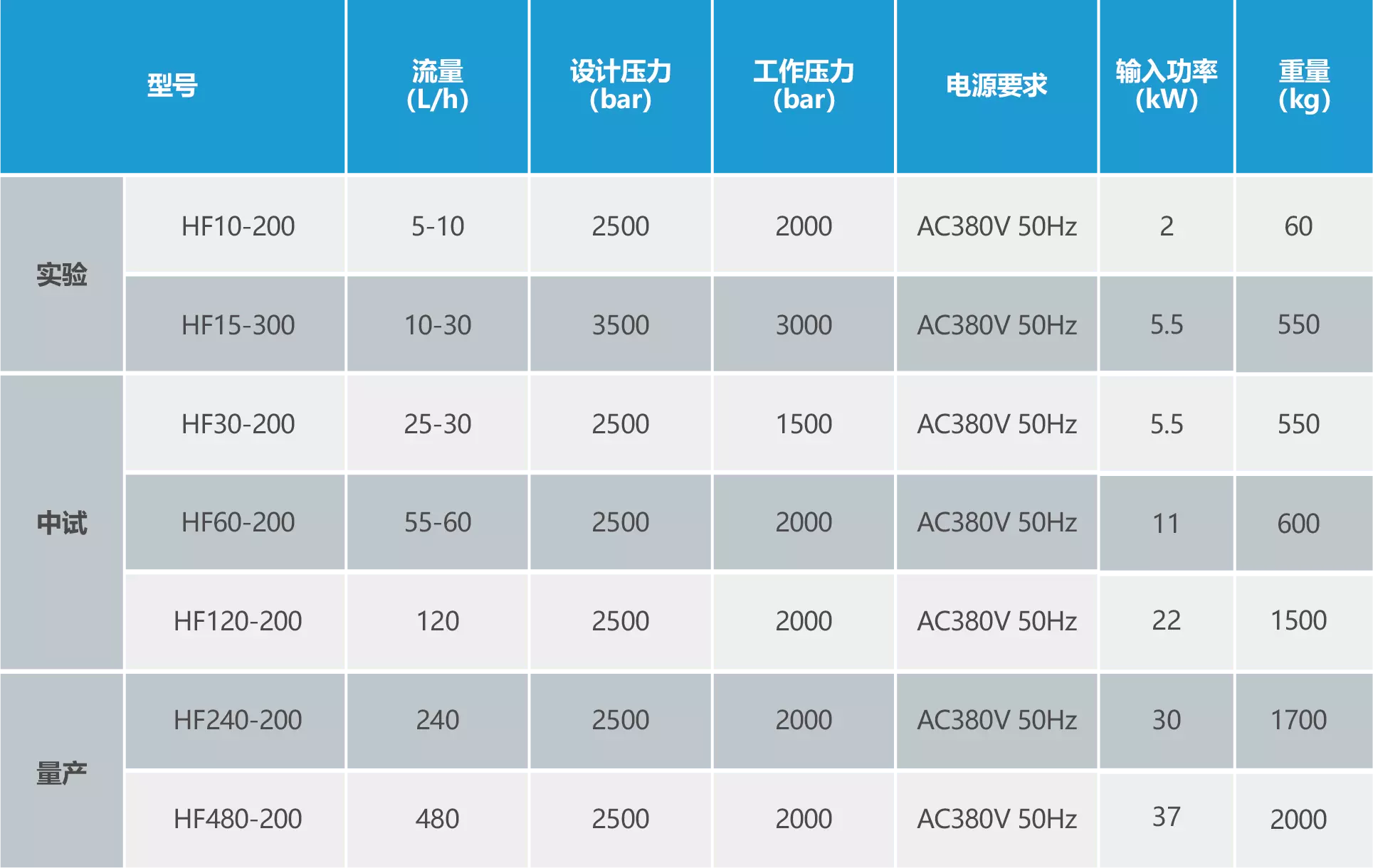

Product Specifications
