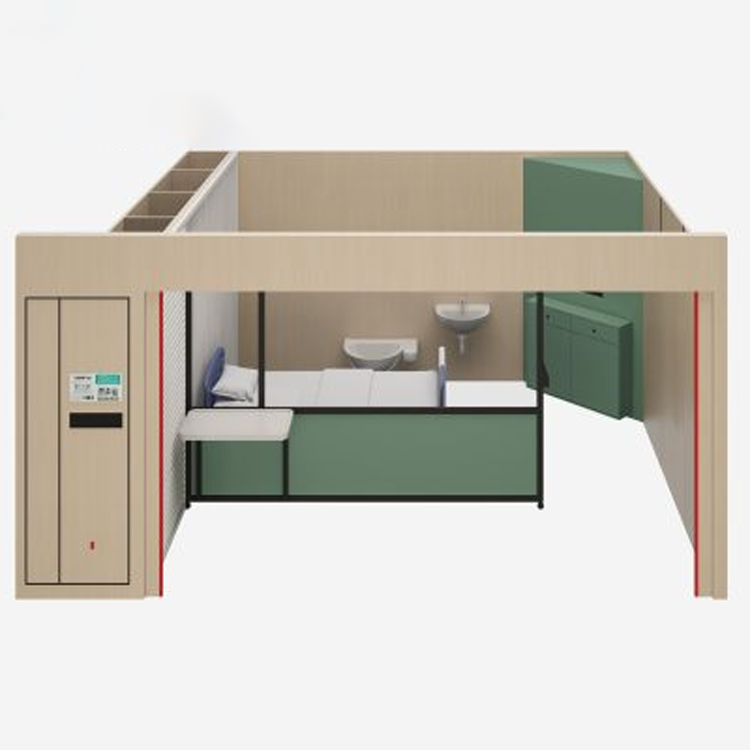

Laminar Flow Type 100 Class Isolation Room

Horizontal laminar flow 100-grade sterile room

Horizontal Laminar FlowClean air flows in layers inward, preventing contamination during processing.

Features:Easily installable modular sterile ward. Even in standard wards under special care systems, it can be completed in about a week. Maintains a 100-level clean environment through complete horizontal airflow. Even with doors and windows open, it prevents polluted air from entering.

Advantages:

High-Efficiency Care: Barrier-free access for easy patient entry and exit, as well as preparation.

Balance care and privacy: Open concept, allowing free dialogue with patients. Electric curtains can also be operated by patients for privacy protection.

Dimensions: 3700*2350*3400~4500mm (width*height*depth)

2. Interior Dimensions: 2525*2162*2900~4020mm (width*height*depth)

3. Airflow: Horizontal laminar flow (open-end configuration)

4. Air cleanliness class: 100.

5. Wind Speed: 0.18-0.34 m/s, two-speed adjustment

Noise: 40dB (at low speed)

7. Filtration System: HEPA High-Efficiency Filter with efficiency over 99.97% (0.3μm), Medium-Efficiency Filter with efficiency over 65%.

8. Equipment Power Requirements: Single-phase 220V AC, 50Hz

9. Optional Accessories: Reading Lamp, Sterilization Water Filter, Shower Head, Hand Washer, LCD Television.
