Technical Specifications

1. This product has been tested by the National保密Technology Evaluation Center and meets the National保密Standard BMB19-2006 "Electrical"

Technical Requirements and Testing Methods for Magnetic Leakage Emission Shielding Cabinet - C Class requirements, the installation and use of this product should comply with

Comply with the product's specified operating environment, and use fiber optic cables for communication during actual use.

2. Model: NYHL-C Type

3. Appearance: Stylish and elegant (surface paint color: black)

4. Housing: A fully enclosed box made of cold-rolled steel plate, 1.5mm thick, with galvanized and painted coatings for corrosion resistance.

Process;

5. Shielded Door: Door leaf made with high-quality materials, carefully crafted and processed shielded springs, and welded cold-rolled steel plates.

Assembled shield doors (with mechanical lock)

6. Equipment Bracket: Adjustable in up, down, front, and back positions, comes with 20 matching bolts.

7. Server Rack Shelves Placement: Standard 2-meter server cabinet is equipped with three shelves.

Standard configuration for cabinets 1.4 meters and below includes two shelf panels.

8. Ventilation wave guide windows: Honeycomb design, two sets each of 300*300mm, top and bottom.

9. Swivel Wheel: Durable and sturdy, glides smoothly in multiple directions and angles.

10. Axial fans with more than 18,000 hours of trouble-free operation, single exhaust volume of 1.4 m³/min. 4 pcs.

11. Power filter features a wide suppression bandwidth and high insertion loss; AC 220V × 16A, 1 set

12. Electrical plug with overload protection, 10A, 6-slot, 3-hole, 1 set

13. F8.1*100mm Copper Waveguide (Shielded Cat6 Network Cable) (Standard Configuration: 5 Pieces)

14. Fiber Optic Waveguide Ф12*140 Galvanized Fiber Optic Conduit (Standard Configuration: 5 Pieces)

15. Grounding Bolt - 1 Piece

16. Each swivel wheel can support a load of not less than 150K, total of 4.

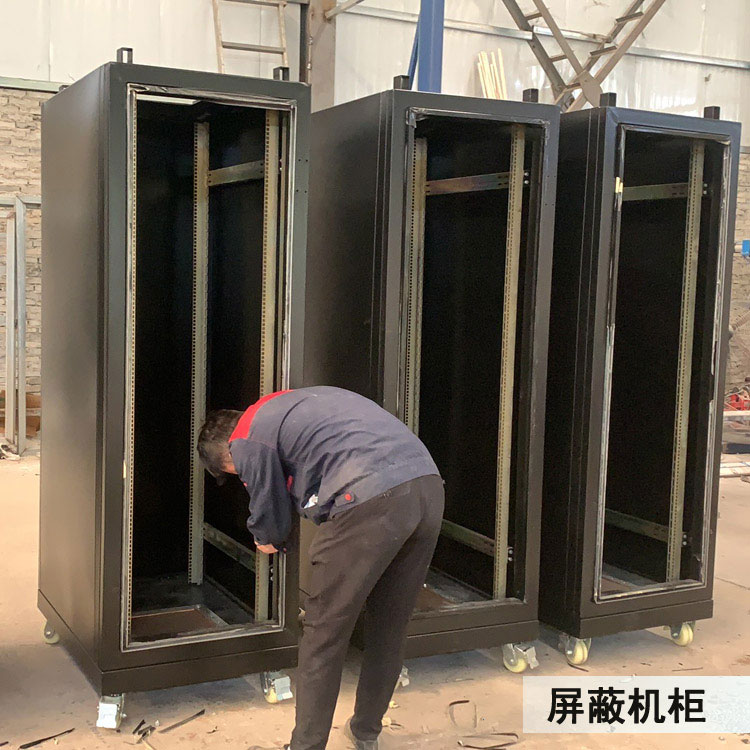

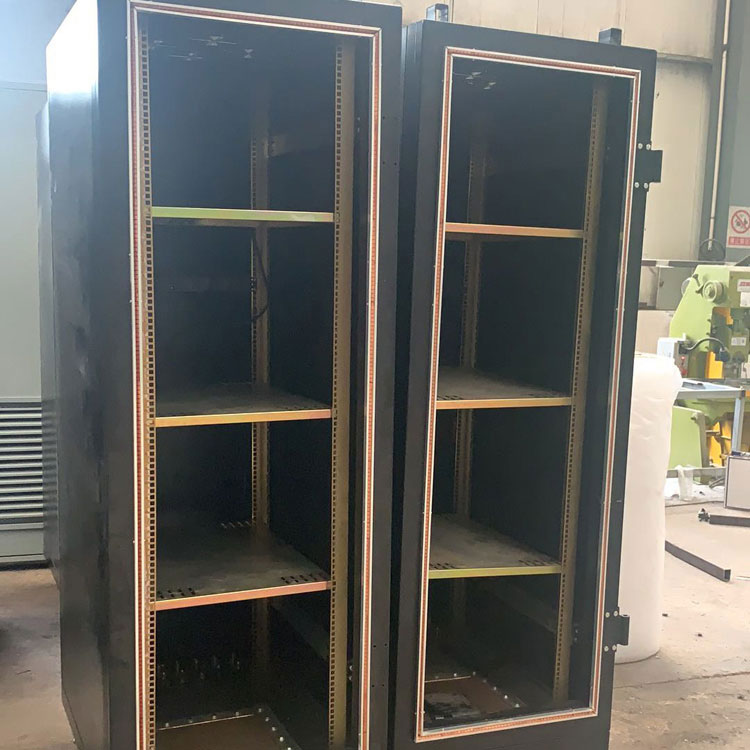

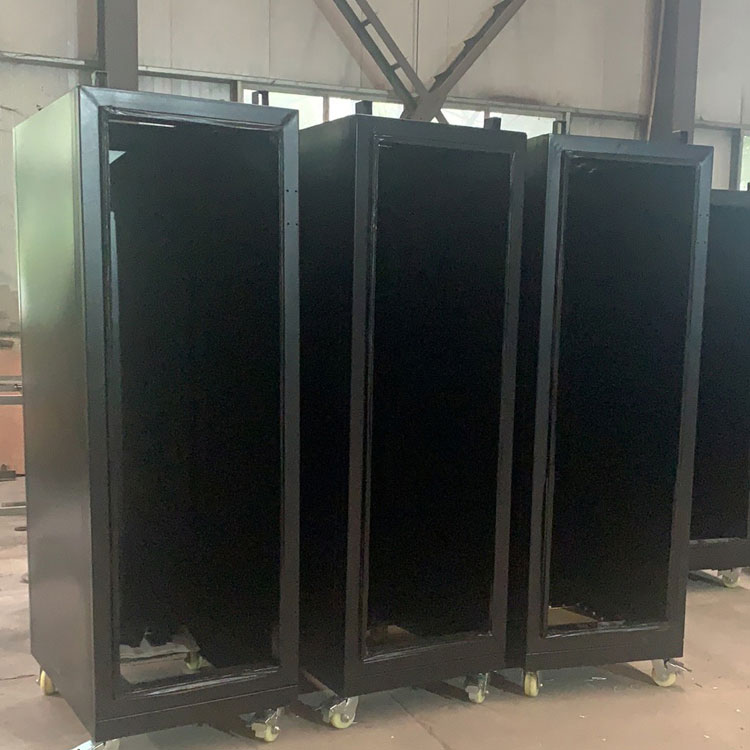

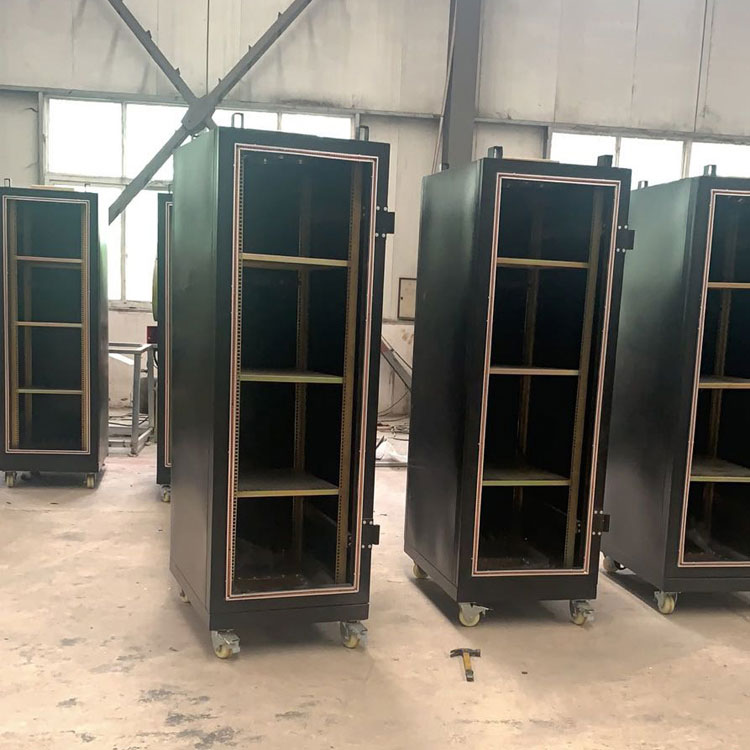

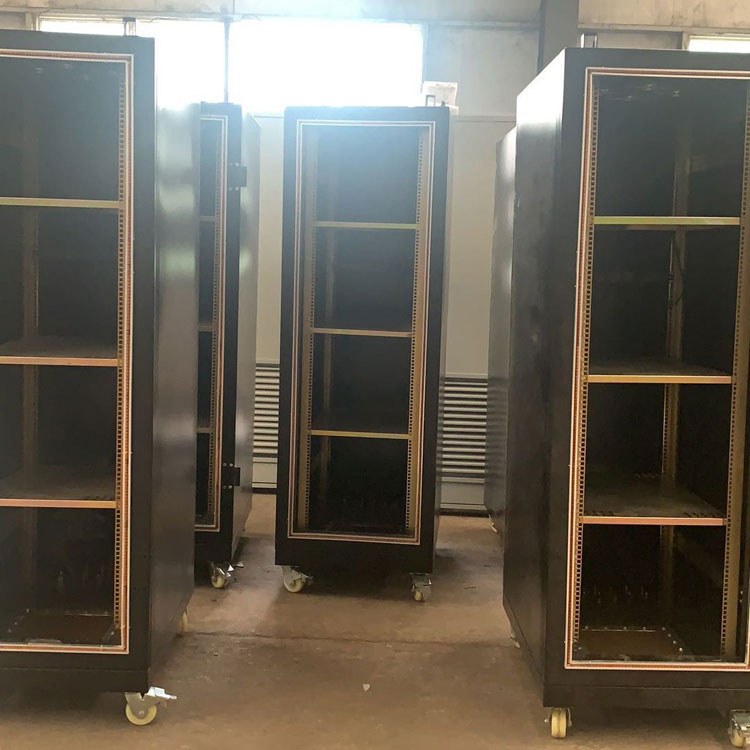

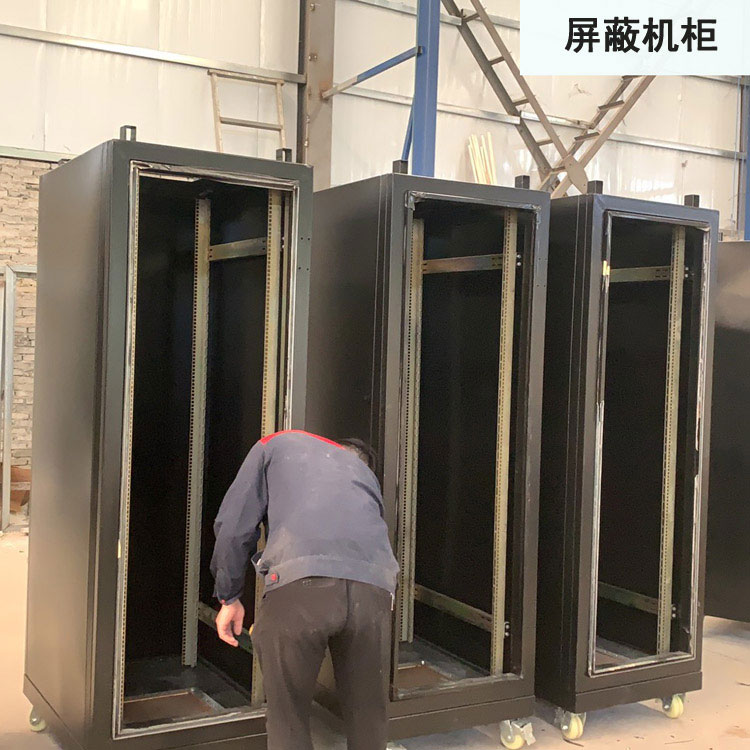

Product Showcase

Primary Uses：

Prevent the leakage of confidential information during the operation of computers, network servers, and communication electronic equipment.

2. To prevent the aforementioned equipment from being interfered with by external electromagnetic waves during operation, ensuring its normal functioning.

Key Features Include:

The product's shielding effectiveness meets the C-grade requirements of the national confidentiality standard GB12190-2006, and the structure is...

Meets 19-inch international standard requirements, offers excellent versatility and compatibility, suitable for networking, communication, and large-scale computing applications.

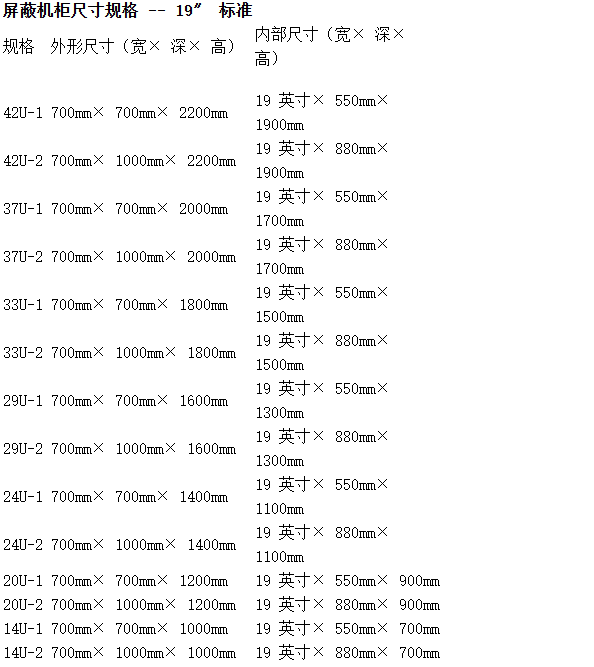

Computer room servers, switches, routers, and other network equipment's electromagnetic protection. Product dimensions and internal structure available.

Custom designed to customer specifications.

Cautionary Notes:

1. The server cabinet must be reliably grounded.

2. No leakage protection switch should be installed before the power filter input terminal (the leakage protection switch can be installed in the shielding room)

Within the interior power distribution box, or by installing an isolation voltage transformer between the power filter input and the leakage protection switch.

To address issues caused by leakage current, a fuse can be installed before the input of the power filter or the leakage circuit breaker can be tripped.

And without residual current circuit breakers. ）

3. Quality Assurance: One-year warranty provided for this product.

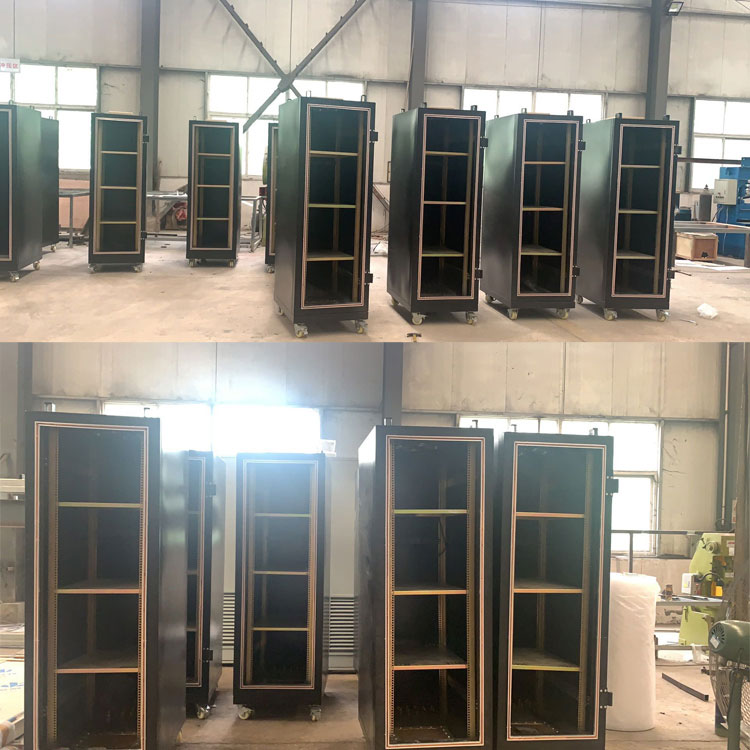

Construction Site
