ORZY Axial Load Testing Machine (Watch the video for operation instructions)

This product owns independent intellectual property rights, including software copyrights/patents.

Product Introduction:

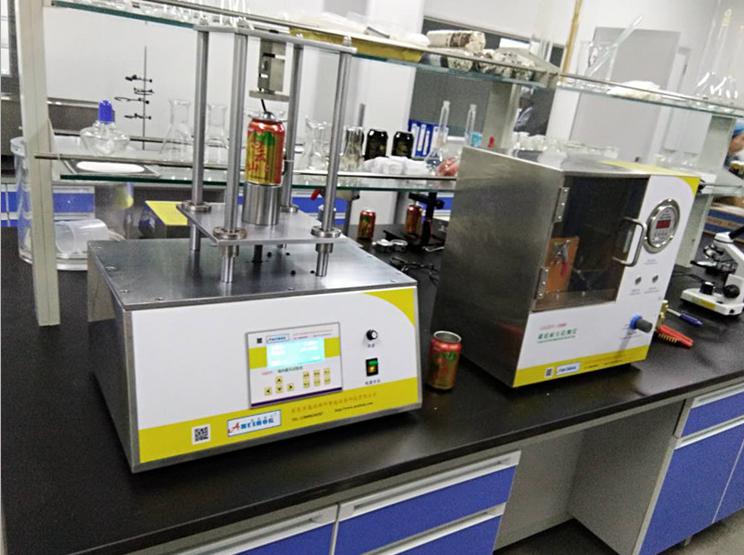

The ORZY axial load tester is used to test the tank's axial pressure resistance. The tank to be tested is placed on the testing platform and gradually pressurized until it reaches the pressure plate on top. The lifting speed and the distance between the top plate and the base can be adjusted by changing the pad plate. Once the tank exceeds its pressure-bearing limit, deformation occurs, and a high pressure value will appear on the display screen.Product Features:

1. The ORZY Axial Load Tester is the standard instrument in the can manufacturing industry.

2. Unique design with exceptionally parallel pressure plates, ensuring the sample jar is subjected to true axial pressure during measurement.

3. Automatically display and record the maximum axial force when the sample is crushed.

4. Features a liquid crystal display.

5. Consistent compression speed, automatically collects data with a microcomputer control system.

6. Upon completion of the sample measurement, the distance between the upper and lower pressure plates automatically returns to the initial state, making it convenient to pick up and place samples.

7. Upon completion of multiple sample measurements, individual results can be reviewed, with the system automatically calculating the average, maximum, and minimum values.

8. Samples available in various height and size dimensions.

9. Overload Protection.
