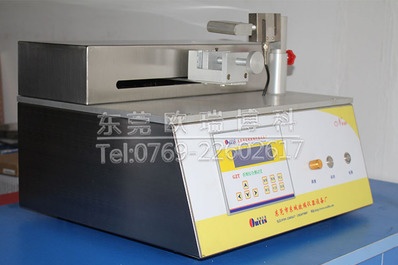

GZTLipstickLipstick Breakage Hardness Tester. Paste Soap Hardness Tester

This product owns independent intellectual property rights, software copyright/patent certificate.

I. Function

GZTLipstickLipstick Breakage Hardness Tester. Paste Soap Hardness Tester. It is one of the instruments for testing the hardness of paste-like substances. It can measure the breakage hardness of objects of a certain length. It can be applied to pencil leads orLipstickApply a test to measure the hardness on the paste. The instrument features a large LCD screen display. High-quality stepping motors are used as the driving program. Speed can be adjusted infinitely. It is a domestic product. Compliant with national standard QB/T1977-2004, ISO American standard, and European standard.





Video inspection reliable! Our company produces!


II. Technical Specifications

1. Large Test Force: 20N (Customizable as per customer's requirement)

2. Test machine range: 0~20N (expandable)

3. Test Force Accuracy: ±0.1%

4. Indicated Resolution: 0.01N; accuracy exceeds that of other products.

5. Test Stroke: 100mm (adjustable)

Speed Range: 1-300mm/min (adjustable)

Data Acquisition Card: Up to 2,500 samples/second, equipped with a 232 communication interface

8. Testing Machine Dimensions: 550mm x 385mm x 250mm

9. Power Supply: 220V/50Hz  10. Weight: 21Kg


Section 3: GZTLipstickBreakage Hardness Tester's operating components recognition and technical features.

★The display features a high-quality large-screen LCD with multiple decimal places up to 0.01N, offering superior accuracy compared to other products.

★ The machine speed can be adjusted at will on the speed controller. When in use, please note to test at low speed initially.

★Control section includes the main power section and the comprehensive function section. The power section refers to the emergency stop button or the power switch that the operator of the testing machine can use when any operation or malfunction is detected. The testing machine will stop operating to ensure safety.

The travel speed during the comprehensive breakage test can be adjusted at will, and it features long-term retention of breakage hardness.

★LipstickFracture Hardness Tester _ Lipstick Fracture Force Tester, compatible with computer and featuring professional computer software operating system, for easy connection to computers for data storage, curve analysis, and printing, convenient for customers in need. (Optional)

★ Import sensor systems with high testing accuracy, effectively ensuring the accuracy of test results

★ Compact, elegant, and user-friendly structure design

★The screw drive system allows for easy speed adjustment, ensuring accurate testing speed and displacement.

★ Equipped with a micro printer, quickly print experimental results

★ Professional and user-friendly fixtures, easily interchangeable for various sample sizes

★Limiting protection, automatic return to original position, and other intelligent configurations ensure user operation safety

Four: After-sales Service: One-year warranty, lifetime repair.
