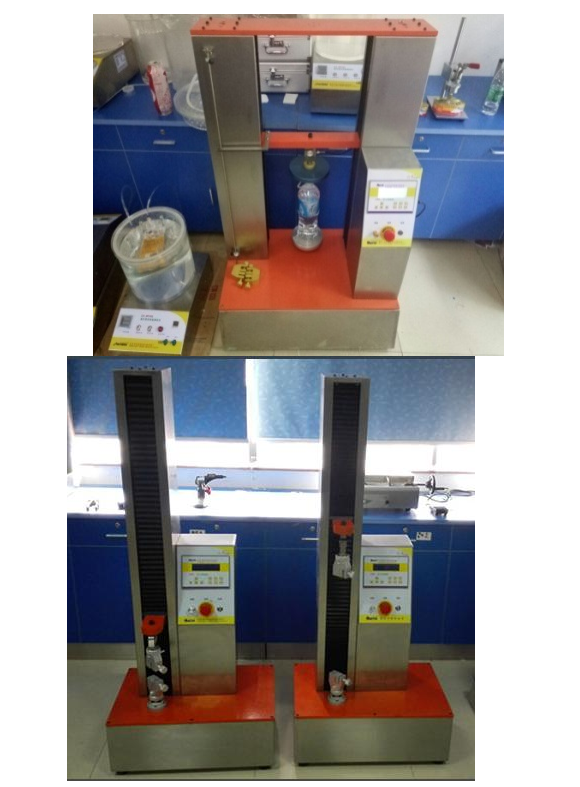

GXL-100 Series Intelligent Testing Machine - Tank Body

Simple structure and easy operation, it can be placed on a workbench for testing. It features an electronic control system, which uses a speed regulator to control the variable-speed motor. The motor drives the T-type screw to lift and lower the load sensor through a speed-reducing mechanical mechanism, thus completing the test of the sample. The force value is output by the sensor, fed back to the display, and the test displacement is displayed in real-time.

Store results from 10 test reference points, automatically calculate the average, capture the highest value, and the force value at break.

This unit features simple and convenient operation, particularly suited for quality control detection instruments on production lines. The series is mainly applicable for testing non-metallic and metallic materials with a test load below 2000N.

Technical Specifications:

Force Selection: 10 kg, 20 kg, 50 kg, 100 kg, 200 kg

Force Measurement Accuracy: ±0.5% of reading

Display: LCD screen with Chinese characters, thin film touch keys

Unit Conversion: Kg, lb, N

Data sampling frequency: 200 times/sec

Test Machine Resolution: Large Load 1/±25,000 units, no grading for internal/external, and constant resolution throughout.

Load Cell: Tension-Compression Sensor

Effective Test Width: 150mm

Effective Stretching Space: 650mm (excluding fixture)

Test speed range: Variable speed from 30-200mm/min and 5 fixed-speed levels

Accuracy of displacement measurement: ±0.5% of the indicated value

Test Bench Safety Device: Up and Down Stroke Limiting Device

Overload Protection: The machine automatically protects itself when exceeding the maximum load by 10%.

Jig Configuration: Set of Stretching Jigs

Mainframe Dimensions: 450×500×1400mm

Main Unit Weight: Approximately 70 Kg

Power: 220V/50Hz
