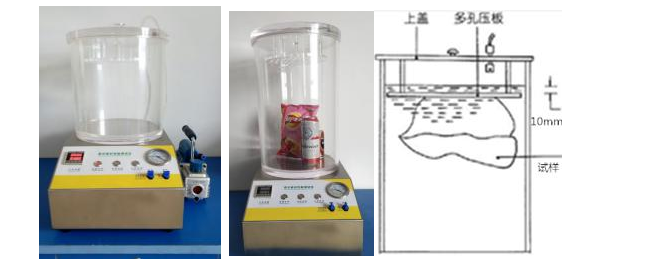

GX-MF300 Pointer-type Vacuum Sealing Performance Tester

The GX-MF Vacuum Sealing Performance Tester is a highly efficient and cost-effective sealing performance tester with an elegant design and body made of high-quality stainless steel. All air-sealing components are imported from Germany, offering superior sealing performance compared to domestic models. It features a test setup time reminder and maintains the set vacuum value for extended periods. The timer controller is a joint venture brand, with high vacuum and timing accuracy, and excellent performance. It complies with GB/T 15171 "Test Methods for Sealing Performance of Flexible Packaging" and ISO standards.

(See video operation for details, videos welcome upon request)



High-quality products must have: clear barrel body, reinforced lid, no photo editing, reliable viewing from videos! This machine is a manual pointer sealing gauge, it does not have pressure settings, requires manual operation, beware of scams, our original products.

System Parameters:

Vacuum gauge range: 0 to -100 kPa, display resolution: 0.1 kPa, accuracy: 1%.

Timing control range: 0-9999 seconds, adjustable at will, with a resolution of 1 second.

Test Setup: Any setting, default at 30 seconds upon machine factory shipment.

Power: 220V/50Hz

Exhaust pipe: 8mm high-quality imported Taiwan TPU (Thermoplastic Polyurethane) tube

Power Safety Protection: Equipped with power safety protection measures.

Sealing Performance Standards: Compliant with national and international standards: ISO, GB/T 15171, ASTM D3078

Vacuum Chamber Effective Dimensions: 300mm x 300mm (H) (Standard) / 300mm x 350mm (H) (Standard)

300mm x 360mm (H) (standard) / 300mm x 400mm (H) (optional)

400mm x 300mm (H) (optional) | 500mm x 400mm (H) (optional)

600mm x 300mm (H) (Optional) 600mm x 500mm (H) (Optional)

Mainframe dimensions: 490*300*250

Note:Φ600mm vacuum chamber with other heights and other special shapes, as well as special sizes, can be customized according to customer requirements.

Net Weight: 19 kg

Configuration: Host unit, Waterproof sticker, Seal bucket, Seal ring, Seal cap, Wires, Adhesive cup, Instructions, Certificate of conformity, Warranty card. Each item included 1 piece.

Tubing, 2 pieces.
